Startech 2 Port DVI KVM Switch

  • RS Stock No. 898-8349
  • Mfr. Part No. SV231DVIUA
  • Manufacturer Startech
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

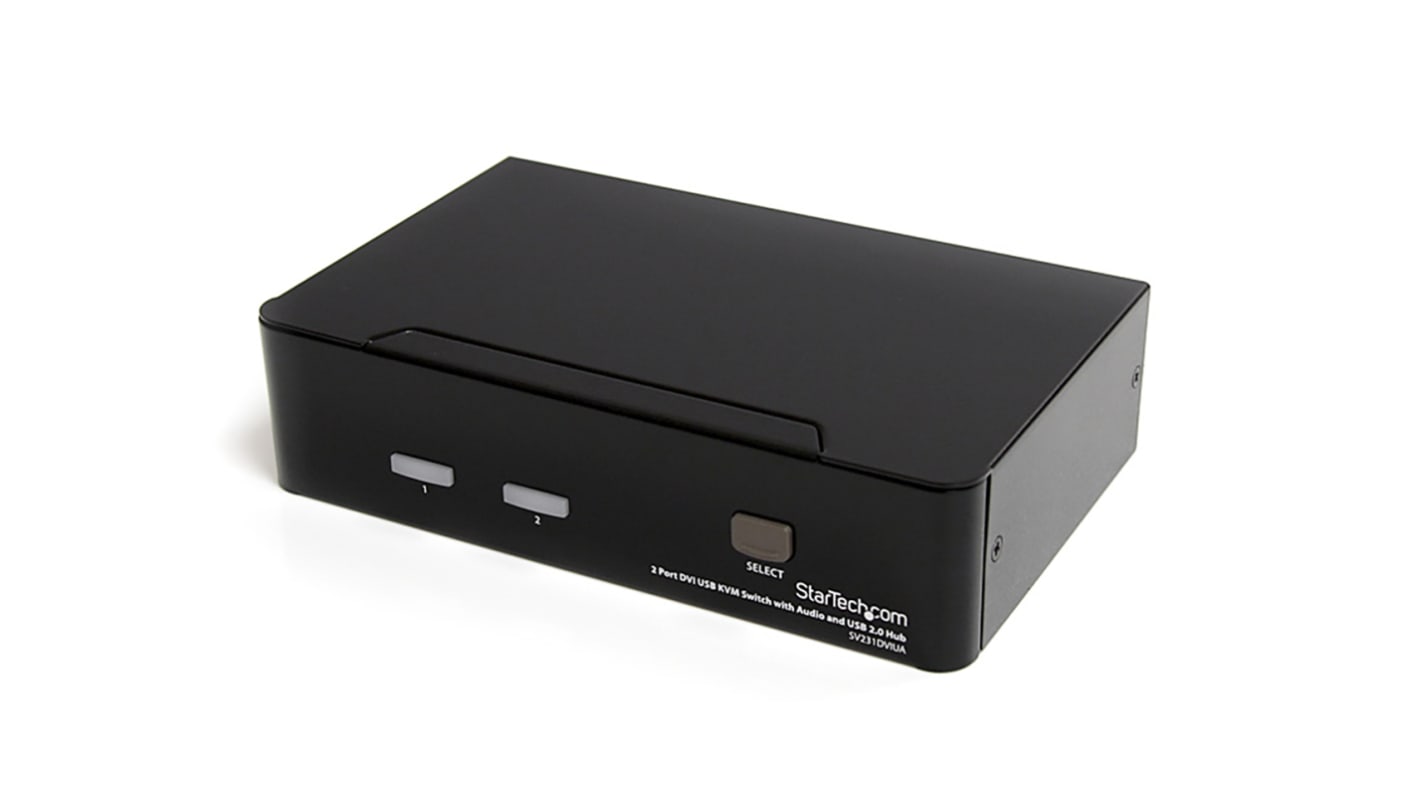

SV231DVIUA DVI KVM switch

The SV231DVIUA 2-Port DVI USB KVM Switch lets you control two USB-enabled, DVI-capable computers from a single monitor and peripheral set (keyboard, mouse and speakers), and two additional USB peripherals connected through the built-in USB hub ports.

Featuring convenient hot-key and front panel push-button switching, and high-resolution support (up to 1920x1200), the DVI KVM Switch is perfect for controlling high-performance systems. Ideal for multimedia applications, this KVM switch supports audio and microphone switching either independently, or simultaneously when switching between computers for KVM control.

The DVI USB KVM also features an integrated USB 2.0 hub, which lets you share USB peripherals point as if they were connected directly to the slave computers.

This product is backed by a Startech.com 3 year warranty with lifetine technical support.

Features & Benefits

• Built-in USB 2.0 hub
• Hot-key and front-panel push buttons for easy computer selection
• USB keyboard and mouse console connections
• Supports resolutions up to 1920x1200
• No software or drivers required
• Stereo audio and microphone support
• Independent/simultaneous audio channel and PC port selection
• HDCP Compliant
• OS independent
• Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
• High resolution support (1920x1200) offers crystal clear video clarity even on large displays
• Absolutely no software or drivers required, providing a completely OS independent KVM solution

Applications

• Control two multimedia computers with a single set of console peripherals (Keyboard, Mouse, and two Monitors)
• Dual system control for single user workstations, increasing user productivity in the office
• Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals in a home office

What’s in the package?

• 2 Port DVI KVM Switch
• Pack, rubber feet
• Universal Power Adapter (US/UK/EU)
• User Manual

Specifications
Attribute Value
Number of Ports 2
Number of Video Outputs 1
Number of Displays Supported 1
Video Connection Type DVI
Keyboard/Mouse Connection Type USB
Dimensions 160 x 100 x 40mm
Audio Connection Type 3.5 mm Stereo
Maximum Resolution 1920 x 1200
Depth 100mm
Height 40mm
Width 160mm
8 In stock for delivery within 5 working day(s)
Price (ex. GST) Each
$ 321.82
(exc. GST)
$ 354.00
(inc. GST)
units
Per unit
1 +
$321.82
