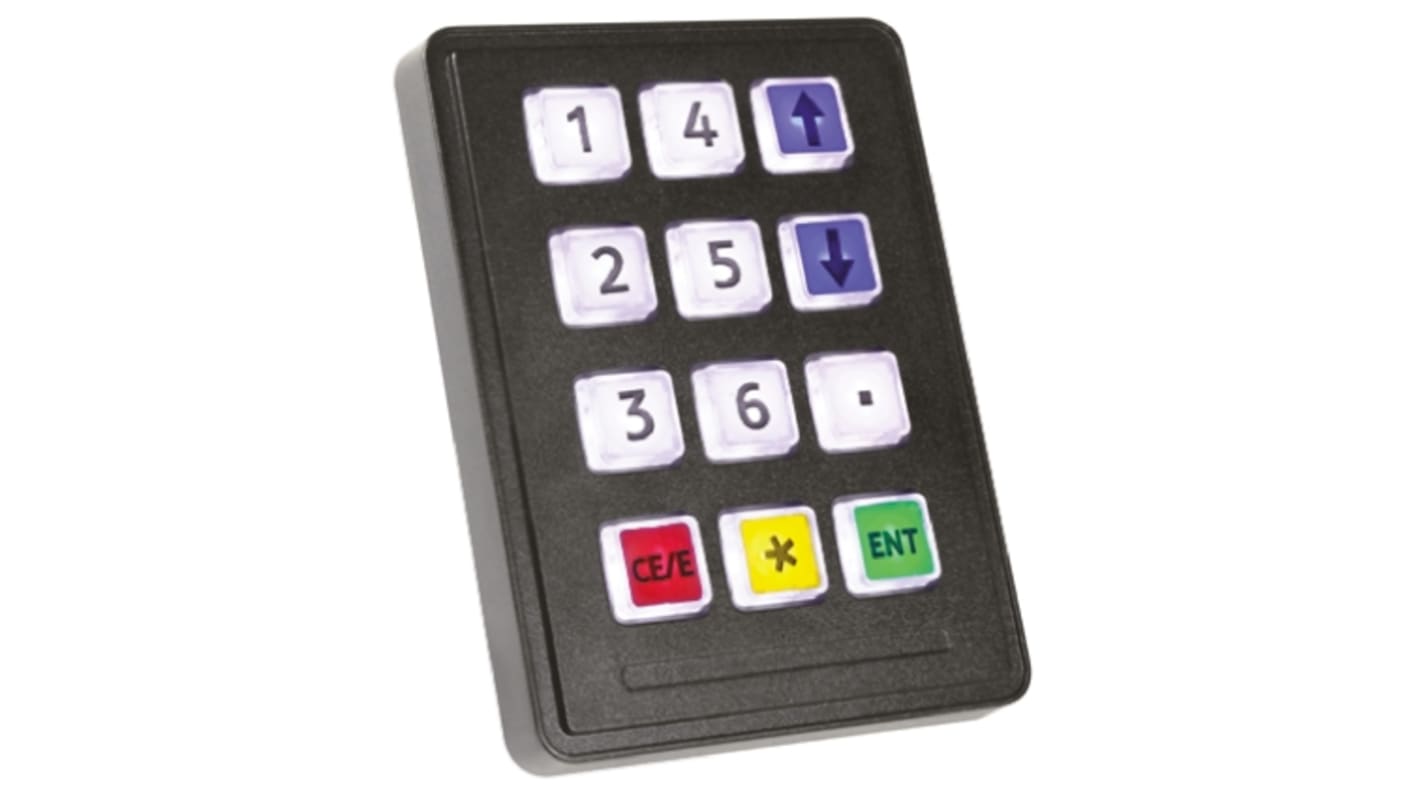

Storm IP65 12 Key Polymer Illuminated Keypad
- RS Stock No.:
- 793-3742
- Mfr. Part No.:
- 7207-121W202
- Brand:
- Storm
Stock check temporarily unavailable - call for stock availability
Added
Price (ex. GST) Each
$114.81
(exc. GST)
$126.29
(inc. GST)
| Units | Per unit |
| 1 - 12 | $114.81 |
| 13 - 24 | $110.78 |
| 25 + | $105.61 |
- RS Stock No.:
- 793-3742
- Mfr. Part No.:
- 7207-121W202
- Brand:
- Storm
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Storm 720 GFX- i Series Sealed Illuminated Keypads
These 720 GFX- i Series water resistant keypads from Storm Interface feature tactile keys with a responsive 'over centre' action. Keytop graphics can be customised by the use of the supplied legend tiles which locate under the snap on transparent key caps.
Integral illumination for use in dark or partially lit locations
Above or below panel installation options
Maximum Switch Rating: 50 mA @ 24 V dc
Operational life of over 2 million cycles per key
Above panel water/ dust ingress IP65 protection rating
Above or below panel installation options
Maximum Switch Rating: 50 mA @ 24 V dc
Operational life of over 2 million cycles per key
Above panel water/ dust ingress IP65 protection rating
Note
Set 'A' Legends are included and comprise:- 1 2 3 4 5 6 7 8 9 0 + = x ÷ * # . ← ↑ → ↓ AC I/O ENT CE/E
Specifications
Attribute | Value |
|---|---|
| Keypad Layout | 3 x 4 |
| Number of Keys | 12 |
| Keypad Output | Matrix |
| Illuminated | Yes |
| IP Rating | IP65 |
| Case Material | Polymer |
| Case Colour | Black |
| Mechanical Life Per Key | 2000000 |
| Actuator Colour | Blue, White, Yellow |
| Actuator Material | Plastic |
| Depth Behind Panel | 12mm |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 → +60°C |
| Maximum Operating Temperature | +60°C |
