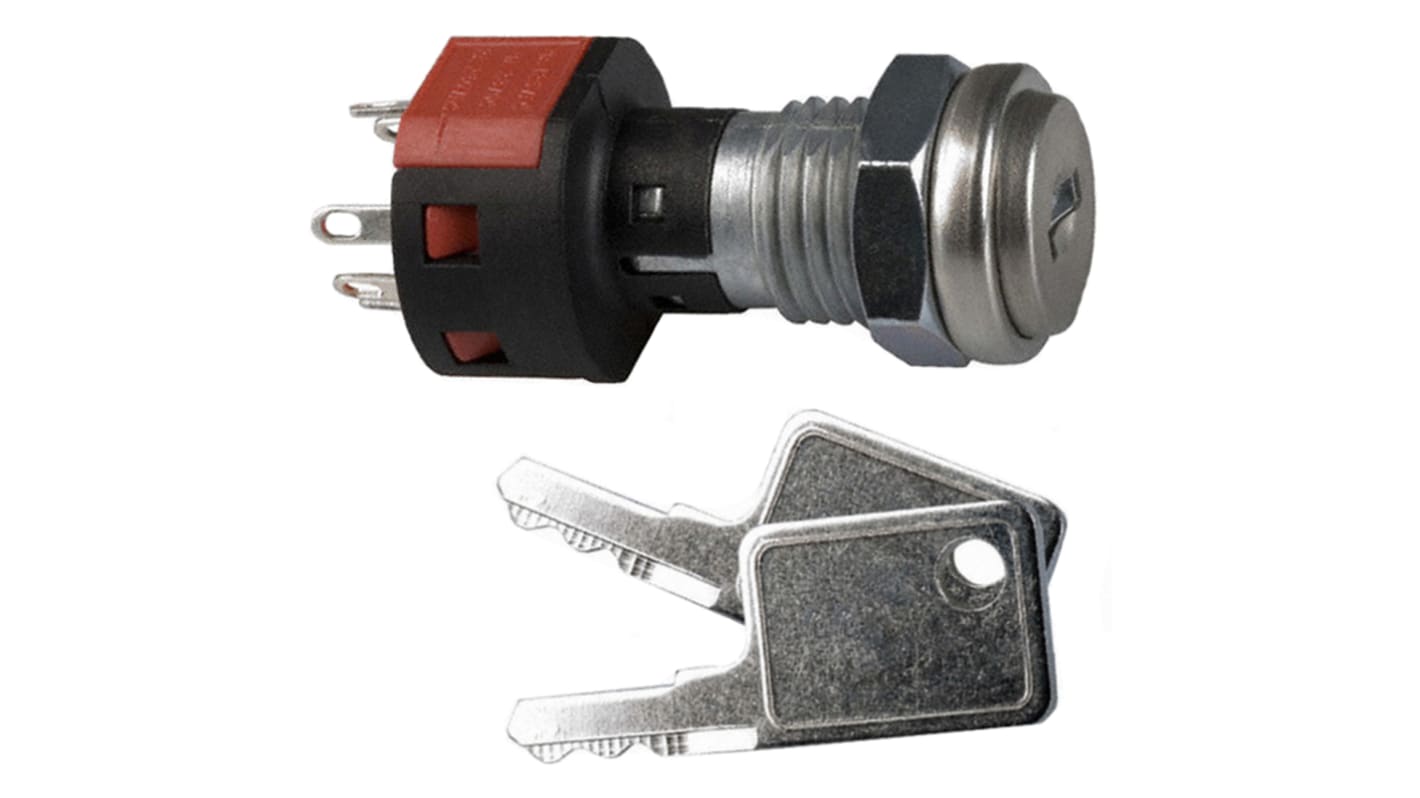

Key Switch, DP, 4 A 1-Way

  • RS Stock No. 863-7060
  • Mfr. Part No. YF21132C203NQ
  • Manufacturer C & K
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

C&K Switchlocks - YF Series

Electrical life: 10000 make-and-break cycles at full load
Materials: Zinc alloy lock with stainless steel facing and nylon 6/6 housing
Supplied with two nickel plated brass keys with code number

Specifications
Attribute Value
Number of Positions 1
Contact Configuration DP
Contact Current Rating 4 A
Key Type Flat
Terminal Type Solder
Case Material Nylon
Bezel Shape Round
Application Cash Register, Computer Servers, Point of Sale Terminal
Depth Behind Panel 28.07mm
Key Index Angle 90°
Contact Material Silver
100 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 22.57
(exc. GST)
$ 24.83
(inc. GST)
units
Per unit
1 - 9
$22.57
10 - 19
$22.01
20 - 49
$21.43
50 - 99
$20.84
100 +
$20.33
