- RS Stock No.:
- 562-595
- Mfr. Part No.:
- WRL-5-E-D-2-B
- Brand:
- Lorlin
Stock check temporarily unavailable - call for stock availability
Added
Price (ex. GST) Each
$38.07
(exc. GST)
$41.88
(inc. GST)
Units | Per unit |
1 - 49 | $38.07 |
50 - 99 | $37.66 |
100 - 249 | $36.97 |
250 + | $36.24 |
- RS Stock No.:
- 562-595
- Mfr. Part No.:
- WRL-5-E-D-2-B
- Brand:
- Lorlin
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

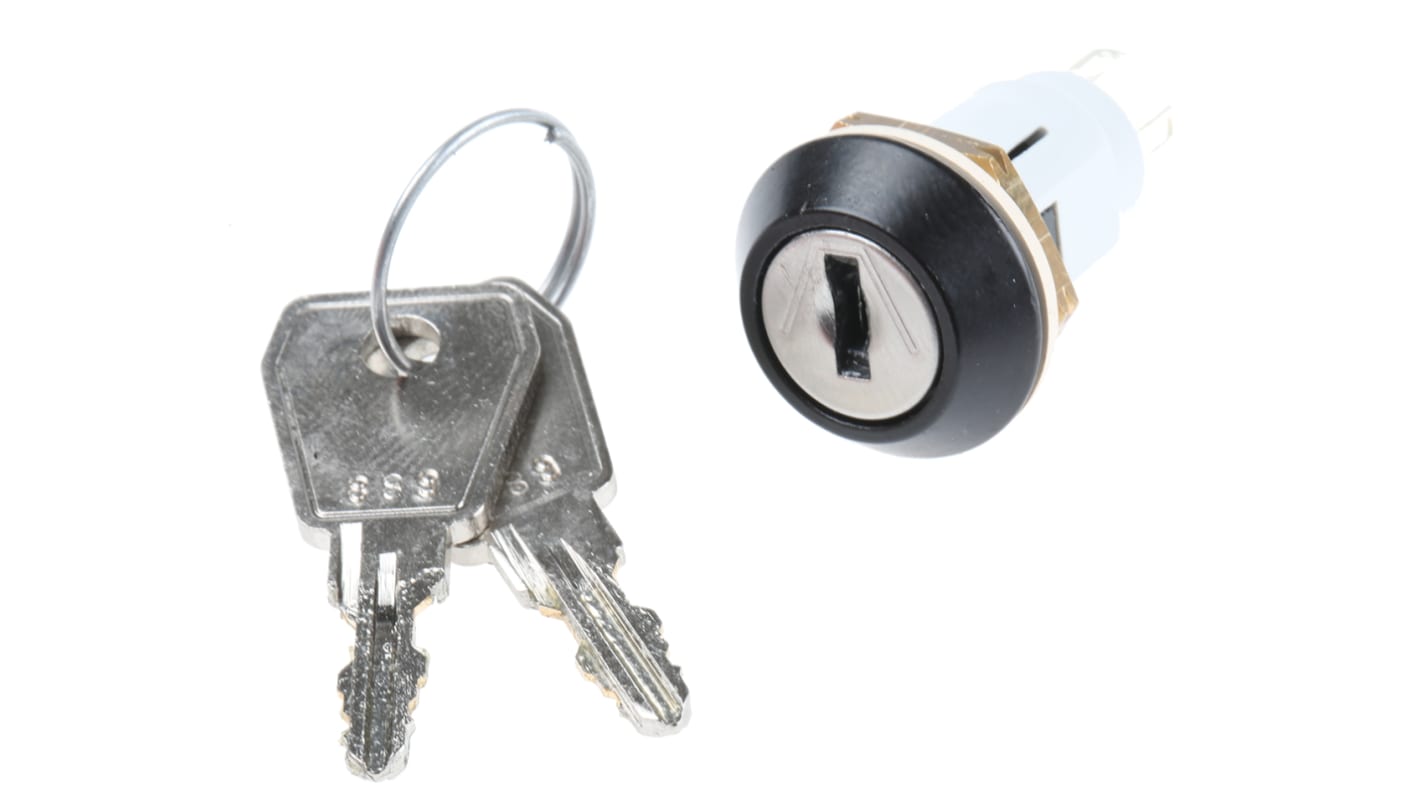

16mm Sealed Key Switch IP66/IP67 - WRL Series
Miniature 2 position key switches
Rear projection less than 30 mm from panel
Suitable for continued exterior use
Common key or random key profile with 2 keys per lock
90° lock movement
Solder terminals
Contact rating 5 A @ 115 Vac
Rear projection less than 30 mm from panel
Suitable for continued exterior use
Common key or random key profile with 2 keys per lock
90° lock movement
Solder terminals
Contact rating 5 A @ 115 Vac
Specifications
Attribute | Value |
---|---|
Number of Positions | 2 |
Contact Configuration | SPDT |
Key Trapping | Yes |
Contact Current Rating | 3 A@ 50 V dc, 5 A@ 115 V ac |
IP Rating | IP67 |
Key Type | Random |
Terminal Type | Solder |
Case Material | Nylon 66 |
Bezel Shape | Tapered |
Depth Behind Panel | 22.4mm |
Key Index Angle | 90° |
Contact Material | Silver Plated Brass |
Operating Temperature Range | -20 → +65°C |
Mechanical Life | 10000Operations |
Standards Met | RoHS |
Maximum Operating Temperature | +65°C |
Minimum Operating Temperature | -20°C |
