- RS Stock No.:
- 562-567
- Mfr. Part No.:
- WRL-5-E-D-2
- Brand:
- Lorlin
On back order for despatch 08/05/2024, delivery within 10 working days from despatch date.
Price (ex. GST) Each
$46.20
(exc. GST)
$50.82
(inc. GST)
units | Per unit |
1 - 49 | $46.20 |
50 - 99 | $45.60 |
100 - 249 | $44.81 |
250 + | $43.97 |
Alternatives
This product is not currently available. Here are our alternative recommendations.
- RS Stock No.:
- 562-567
- Mfr. Part No.:
- WRL-5-E-D-2
- Brand:
- Lorlin
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

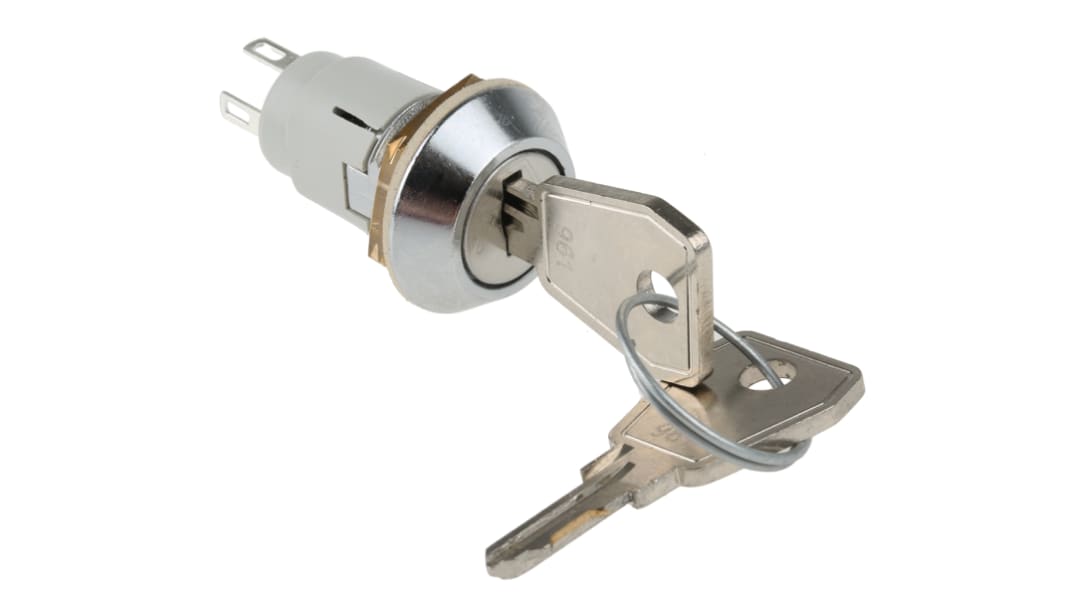

16mm Sealed Key Switch IP66/IP67 - WRL Series
Miniature 2 position key switches
Rear projection less than 30 mm from panel
Suitable for continued exterior use
Common key or random key profile with 2 keys per lock
90° lock movement
Solder terminals
Contact rating 5 A @ 115 Vac
Rear projection less than 30 mm from panel
Suitable for continued exterior use
Common key or random key profile with 2 keys per lock
90° lock movement
Solder terminals
Contact rating 5 A @ 115 Vac
Specifications
Attribute | Value |
---|---|
Number of Positions | 2 |
Contact Configuration | SPDT-NO/NC |
Contact Current Rating | 5 A@ 115 V ac |
IP Rating | IP66, IP67 |
Key Type | Random |
Terminal Type | Solder |
Case Material | Zinc Alloy |
Bezel Shape | Round |
Key Index Angle | 90° |
Contact Material | Silver Plated Brass |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +65°C |
Mechanical Life | 10000 |
Operating Temperature Range | -20 → +65°C |
Standards Met | RoHS |
