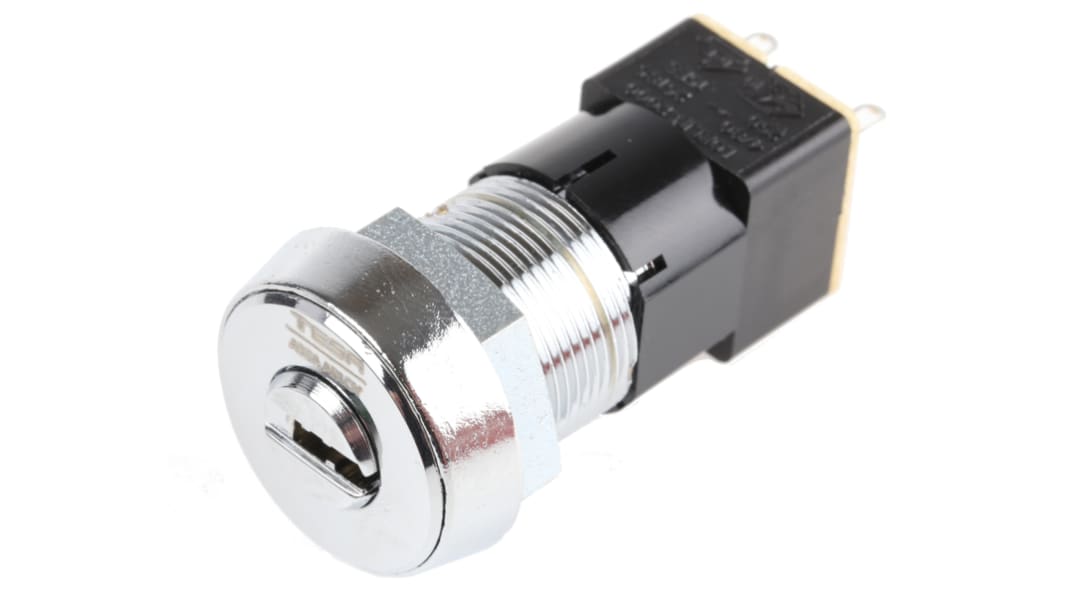

Mains Key Switch, DPST, 50 mA @ 250 V ac 2-Way Flat-Key
- RS Stock No.:
- 562-551
- Mfr. Part No.:
- DSL-6-B-D
- Brand:
- Lorlin
6 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$163.80
(exc. GST)
$180.18
(inc. GST)
| Units | Per unit |
| 1 - 49 | $163.80 |
| 50 - 99 | $160.92 |
| 100 - 249 | $156.73 |
| 250 + | $152.46 |
- RS Stock No.:
- 562-551
- Mfr. Part No.:
- DSL-6-B-D
- Brand:
- Lorlin
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
19mm High Security Key Switch - DSL Series
Key switches with dimpled 6 pin lock suitable for mains switching
Two part construction with front of panel insertion, the switch module snaps - on from the rear
Common key or random key profile with 2 keys per lock
Trapping 1 position key removal or non trapping 2 position key removal
90° lock movement
Solder terminals
Contact rating 4 / 80 A @ 250 Vdc
Two part construction with front of panel insertion, the switch module snaps - on from the rear
Common key or random key profile with 2 keys per lock
Trapping 1 position key removal or non trapping 2 position key removal
90° lock movement
Solder terminals
Contact rating 4 / 80 A @ 250 Vdc
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 2 |
| Switch Operation | Off-On |
| Contact Configuration | DPST |
| Contact Current Rating | 50 mA @ 250 V ac |
| Key Type | Flat |
| Terminal Type | Solder |
| Bezel Shape | Round |
| Key Index Angle | 90° |
| Contact Material | Silver Plated Brass |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -25 → +85°C |
| Mechanical Life | 15000 |
| Standards Met | RoHS |
