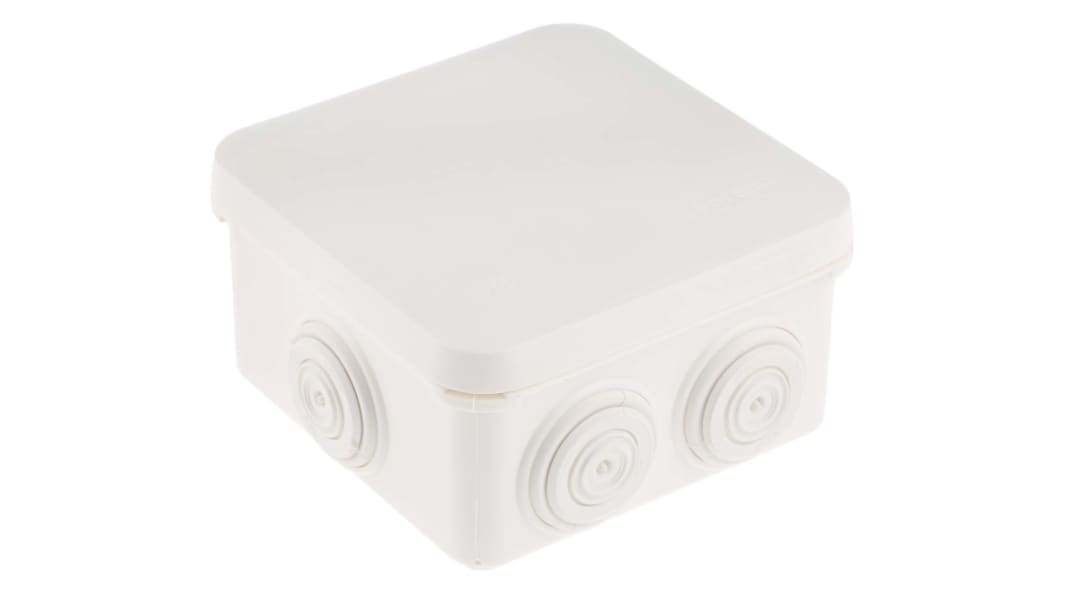

Legrand Junction Box, IP55, 80mm x 80mm x 45mm

  • RS Stock No. 514-2389
  • Mfr. Part No. 0 920 13
  • Manufacturer Legrand
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): FR
Product Details

Plexo junction boxes

Introducing the Plexo™ range junction boxes from Legrand. These boxes are weatherproof and available as round or square shaped. Key features with these boxes are they have interchangeable membrane glands or pre-cut knock-out making it easy to install and maintain ISO type cable. They are wall/ceiling mount compatible, in industrial and domestic applications.

Features and Benefits

Boxes for electrical bridging
Resistance to incandescent wire 650 °C

Materials

• ABS Boxes
• Polypropylene cover
• Polyamide cover fixing screws
• Elastomer glands
• Materials do not contain halogen

Typical Application

Junctions Boxes are primarily used in building construction and are designed to provide protection to wiring circuits and electrical connections for easy access. Boxes are usually made from metal or heavy-duty plastic and in most situations can be used both indoor and outdoor due to water and impact resistance.

Typically junction boxes are used for:
Connecting additional sockets to circuits
Adding lighting points
Extending circuits
Electricity circuit repairs

Approvals & Certification

• IP 55
• IK 07

FAQs:
Does this box come with terminal?

No, there are no terminals in the junction box

Will using the knockouts affect the IP Rating?

No, the IP rating would not be affected. Junction box RS stock no: 398-2494 does not have membrane glands or pre-cut knockouts.

Specifications
Attribute Value
Length 80mm
Material Plastic
Width 80mm
Dimensions L x W x H 80 x 80 x 45mm
IP Rating IP55
Height 45mm
Number of Ways 7
Colour White
2 : Next working day (AU stock)
535 : 5 working days (Global stock)
Price (ex. GST) Each
$ 11.73
(exc. GST)
$ 12.90
(inc. GST)
units
Per unit
1 - 24
$11.73
25 - 99
$11.44
100 +
$11.05
