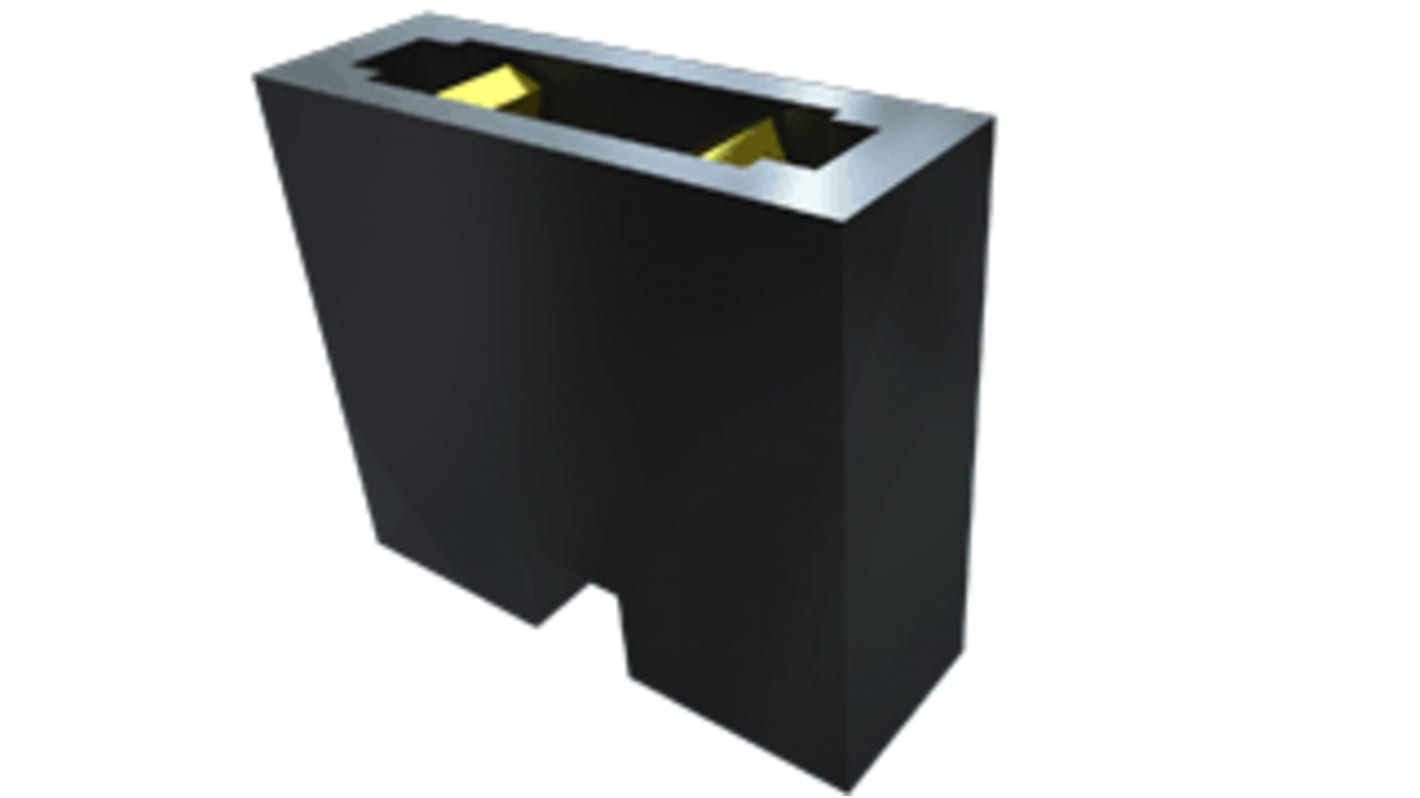

Samtec, SNM Shunt Female Straight Black Shunt 2 Way 1 Row 2.54mm Pitch
- RS Stock No.:
- 158-5725
- Mfr. Part No.:
- SNM-100-BK-G
- Brand:
- Samtec
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price (ex. GST) 1 Box of 1
$6.39
(exc. GST)
$7.03
(inc. GST)
| Box(es) | Per Box |
| 1 - 2 | $6.39 |
| 3 - 4 | $6.23 |
| 5 + | $6.13 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 158-5725
- Mfr. Part No.:
- SNM-100-BK-G
- Brand:
- Samtec
Technical data sheets
Legislation and Compliance
Product Details
.050" x .100" Shunt
Color: Black
Pitch: .100" (2.54 mm) x .050" (1.27 mm)
Positions: 2
Pitch: .100" (2.54 mm) x .050" (1.27 mm)
Positions: 2
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Type | Shunt |
| Number of Contacts | 2 |
| Pitch | 2.54mm |
| Gender | Female |
| Colour | Black |
| Number of Rows | 1 |
| Length | 3.81mm |
| Width | 1.27mm |
| Depth | 3.3mm |
| Series | SNM |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
| Orientation | Straight |
