- RS Stock No.:
- 876-8785
- Mfr. Part No.:
- SFH 4841 E7800
- Brand:
- ams OSRAM
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price (ex. GST) Each (In a Pack of 5)
$3.094
(exc. GST)
$3.403
(inc. GST)
Units | Per unit | Per Pack* |
5 - 20 | $3.094 | $15.47 |
25 - 95 | $3.02 | $15.10 |
100 - 245 | $2.898 | $14.49 |
250 - 495 | $2.816 | $14.08 |
500 + | $2.776 | $13.88 |
*price indicative |
- RS Stock No.:
- 876-8785
- Mfr. Part No.:
- SFH 4841 E7800
- Brand:
- ams OSRAM
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

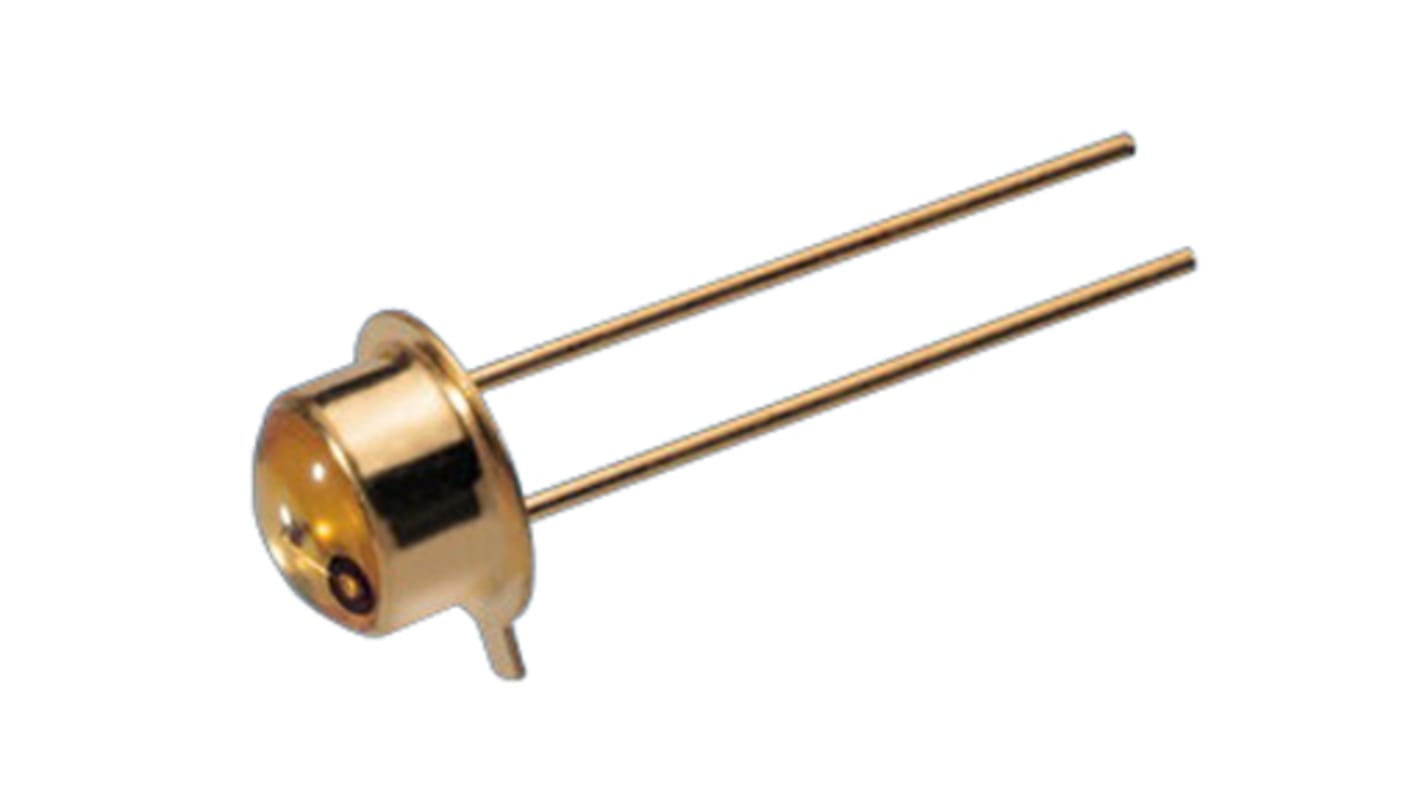

OSRAM TO-18 Metal Package IR Emitters
A family of Infrared (IR) LEDs, from OSRAM Opto Semiconductors, are in TO-18 metal can packages. Their through-hole metal packages are hermetically sealed. The TO-18 IR LEDs offer short switching times. They also have a spectral match with silicon photodetectors. Suitable applications for the TO-18 IR LEDs include; photointerrupters, sensor technology and light curtains.
Features of the TO-18 IR LEDs:
Diameter: 4.3mm or 4.8mm
Through-hole metal can package
Air tight seal
Variety of wavelengths
Diameter: 4.3mm or 4.8mm
Through-hole metal can package
Air tight seal
Variety of wavelengths
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Infrared (IR) Light Emitters, OSRAM Opto Semiconductors
Specifications
Attribute | Value |
---|---|
Peak Wavelength | 950nm |
Package Type | TO-18 |
Radiant Flux | 80mW |
Radiant Intensity | 12mW/sr |
Mounting Type | Through Hole |
Angle of Half Intensity | ±32° |
Number of LEDs | 1 |
Number of Pins | 2 |
Dimensions | 5.4 (Dia.) x 3.2mm |
Lens Shape | Round |
Maximum Supply Voltage | 3.6V |
