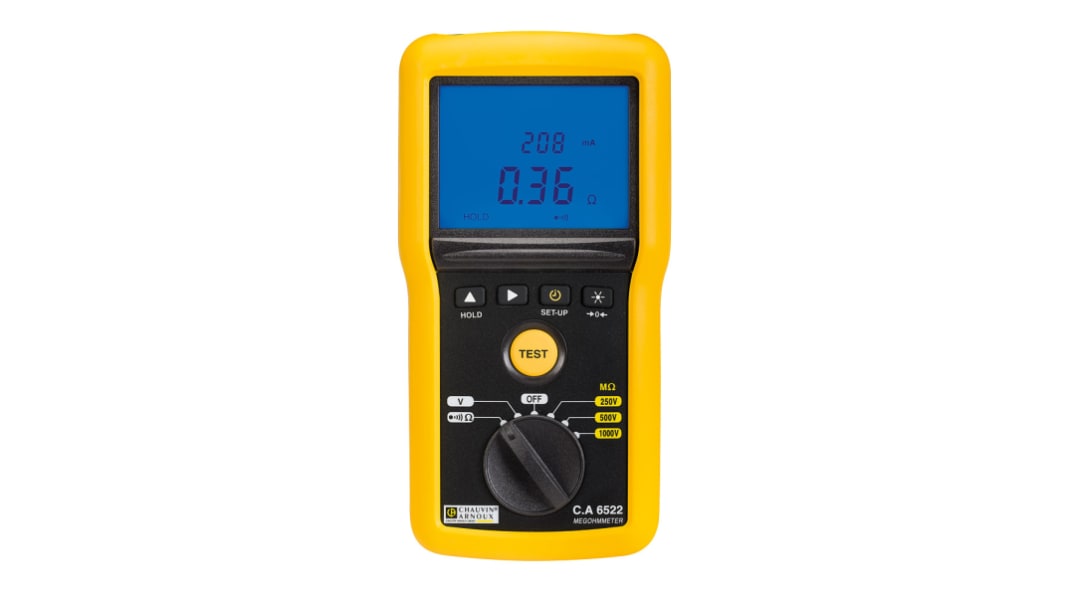

Chauvin Arnoux C.A 6522, Insulation Tester 40GΩ CAT IV 600 V

Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): FR
Product Details

Chauvin Arnoux Insulation and Continuity Testers for Industrial Maintenance

Chauvin Arnoux models C.A 6522, C.A 6524 and C.A 6526 are simple-to-use insulation and continuity testers designed for industrial maintenance operations. They are particularly popular for use in planned periodic insulation tests on installations and equipment. This helps prevent incidents by detecting ageing and the premature deterioration of insulation characteristics.

Features and Benefits

Measurement of insulation over a programmed duration
PI and DAR ratios to determine the quality of the insulation
Storage in memory to compare the measurement histories
Display 2 x 4000 counts + logarithmic bar graph
Compact (211 x 108 x 60 mm) and lightweight (850 g)
Protection to IP 54

Note

C.A 6526 features Alarms and Pass/Fail indicator light and comes with CD containing Megohmmeter Transfer software.

Supplied with

Carrying bag for hands-free use, elbowed-straight safety leads 1.5 m long (1 red, 1 black) , red crocodile clip, black test probe, batteries (x6), multilingual user manual on CD, quick start-up guide, multilingual safety datasheet

Chauvin Arnoux Insulation Testers

Specifications
Attribute Value
Tester Type Insulation & Continuity Tester
Minimum Test Voltage 250V
Maximum Test Voltage 1000V
Maximum Insulation Resistance Measurement 40GΩ
Display Type Digital
Test Current 200mA
Battery Life 3000 Measurements, 6000 Measurements
Minimum Operating Temperature -20°C
Maximum Operating Temperature +55°C
Power Source Battery
Safety Category Level CAT IV
Safety Category Voltage 600V
Safety Category CAT IV 600 V
Battery Type AA
Weight 850g
Model Number p C.A 6522
Height 211mm
Dimensions 108 x 60 x 211mm
Length 108mm
Width 60mm
34 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 923.18
(exc. GST)
$ 1,015.50
(inc. GST)
units
Per unit
1 +
$923.18
