Fluke 1503, Insulation Tester 2GΩ CAT III 600 V, CAT IV 600 V

  • RS Stock No. 518-5998
  • Mfr. Part No. FLUKE 1503
  • Manufacturer Fluke
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CN
Product Details

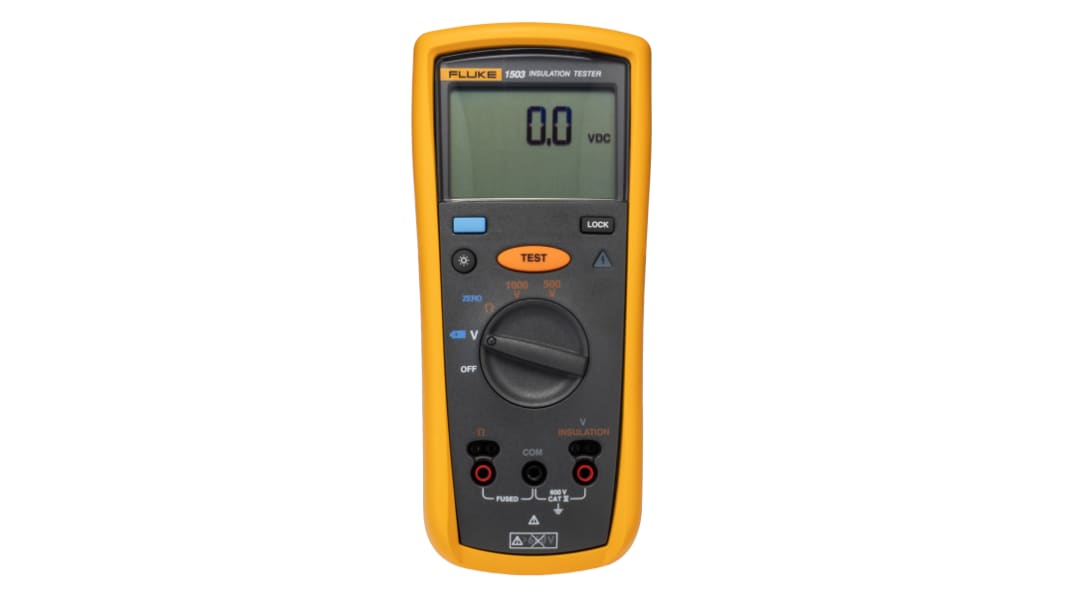

Fluke 1503 Insulation Tester

The Fluke 1503 Insulation Tester is compact, rugged, reliable, and easy to use. With its multiple test voltages, it is ideal for many troubleshooting, commissioning, and preventative maintenance applications.

With a remote probe, repetitive or hard-to-reach testing is made easy. Test leads, probes and alligator clips are also included.

Features and Benefits

• Insulation test range: MΩ to 2000 MΩ
• Insulation test voltages: 500 V, 1000 V
• Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
• Auto-discharge of capacitive voltage for added user protection
• AC/DC voltage: 0.1 V to 600 V
• 200 mA Continuity
• Resistance: 0.01 Ω to 20.00 kΩ
• Save battery power with auto power off
• Read measurements easily with large, backlit display
• CAT IV 600 V overvoltage category rating for added user protection
• Remote probe, test leads, probes and alligator clips included with each tester
• Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
• Four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests

Fluke Insulation Tester

The Fluke 2G ohm electrical insulation tester is compact, rugged, reliable and easy to use. With its multiple test voltages, it is ideal for many troubleshooting, commissioning and preventative maintenance applications. It comes with a remote probe due to which repetitive or hard-to-reach testing is made easy. Test leads, probes and alligator clips are also included. The testing voltage of this tester ranges between 500V and 1000V. This device is battery powered and has 4 AA battery type.

Features and Benefits

200mA Continuity AC/DC voltage ranges between 0.1V and 600V Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work Auto discharge of capacitive voltage for added user protection Insulation test ranges between 0.1MΩ and 2000MΩ Live circuit detection prevents insulation test if voltage > 30V is detected for added user protection Read measurements easily with large, graphic backlit display Remote probe, test leads, probes and alligator clips included with each tester Resistance ranges between 0.01Ω and 20.00kΩ Save battery power with auto power OFF

Certifications

ANSI/ISA 82.02.01 CAT III 600V CAT IV 600V CE certified CSA certified IEC/EN 61010-1 IP40 rated

Specifications
Attribute Value
Tester Type Insulation Resistance Tester
Minimum Test Voltage 500V
Maximum Test Voltage 1000V
Maximum Insulation Resistance Measurement 2GΩ
Display Type Graphic Display - Backlit
Test Current 200mA
Minimum Operating Temperature -20°C
Maximum Operating Temperature +55°C
Power Source Battery
Safety Category Level CAT III, CAT IV
Safety Category Voltage 600V
Safety Category CAT III 600 V, CAT IV 600 V
Battery Type AA
Weight 550g
Dimensions 203 x 100 x 50mm
Model Number p 1503
Height 50mm
Width 100mm
Length 203mm
6 In stock for delivery within 1 working day(s)
Price (ex. GST) Each
$ 826.00
(exc. GST)
$ 908.60
(inc. GST)
units
Per unit
1 +
$826.00
