- RS Stock No.:
- 349-8804
- Mfr. Part No.:
- TNA14HSAD-00L / 192993-0633
- Brand:
- ITT Cannon
Stock check temporarily unavailable - call for stock availability
Added
Price (ex. GST) Each
$50.13
(exc. GST)
$55.14
(inc. GST)
Units | Per unit |
1 - 19 | $50.13 |
20 - 39 | $48.41 |
40 + | $46.14 |
- RS Stock No.:
- 349-8804
- Mfr. Part No.:
- TNA14HSAD-00L / 192993-0633
- Brand:
- ITT Cannon
Technical data sheets
Legislation and Compliance
Non Compliant
- COO (Country of Origin):
- HU
Product Details

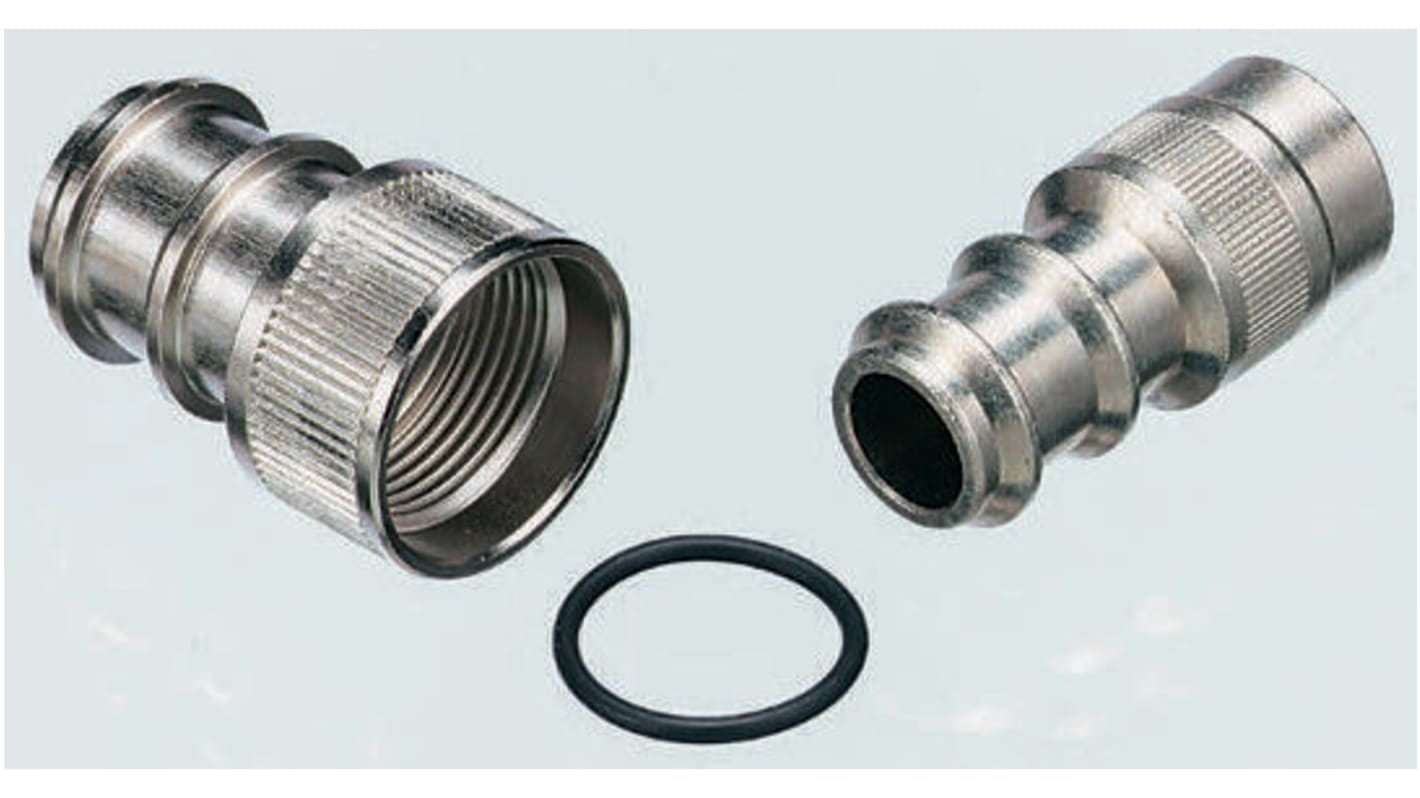

Heatshrink Adaptor
Allows the application of heatshrink where full shielding is not required
Rubber 'O' ring maintains IP67 sealing when heatshrink is applied
Rubber 'O' ring maintains IP67 sealing when heatshrink is applied
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
ITT TNM Shielded
The TNM connector range builds on the popular Trident and Neptune ranges from ITT Cannon. They feature full metal construction giving high reliability and durability.
RF shielding inherent in the full metal construction
Backshells enable cable braid termination so meeting EMC requirements
Signal versions have the same planform & contact arrangements as the QM range so upgrading and interchangeability can be achieved
Includes a rear rubber seal that enables IP67 rating to be maintained if only some contacts are used. The rubber seal can be discarded if a backshell is to be used. Both are rated to IP67
Cable, chassis and jam nut configurations available in standard and reversed formats
One, two or three part crimp contacts, also solder cup and PCB terminating contacts available for signal transfer. Power contacts are only required for power/signal connector types
Backshells enable cable braid termination so meeting EMC requirements
Signal versions have the same planform & contact arrangements as the QM range so upgrading and interchangeability can be achieved
Includes a rear rubber seal that enables IP67 rating to be maintained if only some contacts are used. The rubber seal can be discarded if a backshell is to be used. Both are rated to IP67
Cable, chassis and jam nut configurations available in standard and reversed formats
One, two or three part crimp contacts, also solder cup and PCB terminating contacts available for signal transfer. Power contacts are only required for power/signal connector types
Specifications
Attribute | Value |
---|---|
Connector Size | Standard |
IP Rating | IP67 |
Series | Trident Neptune Metal |
Maximum Operating Temperature | +105°C |
Minimum Operating Temperature | -55°C |
