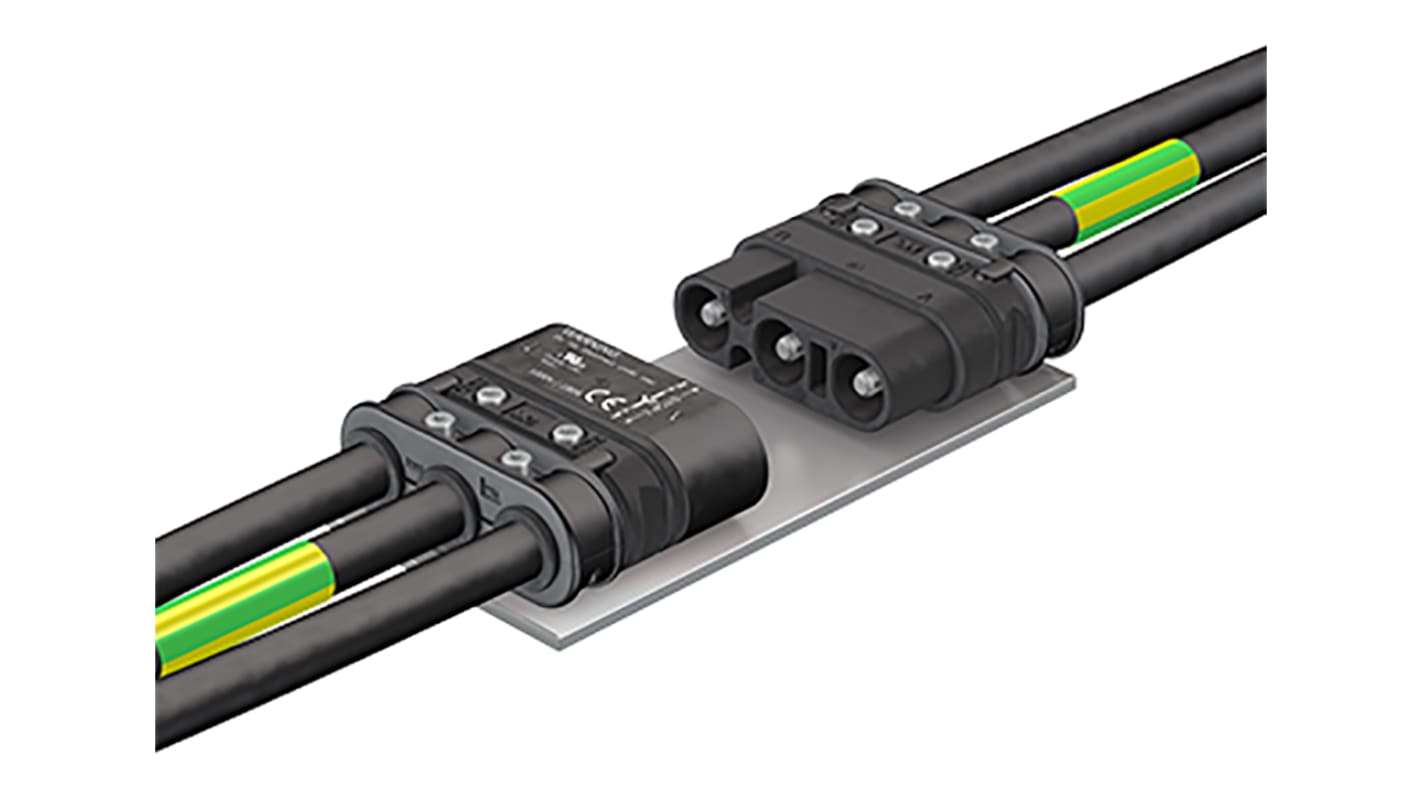

Multi Contact RobiFix Series Female Cable Mount Circular Connector, 3 contacts Socket

  • RS Stock No. 187-9792
  • Mfr. Part No. 30.4005
  • Manufacturer Staubli
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CH
Product Details

Primary circuit Quick Disconnect for resistance welding applications on robots, dresspacks, welding guns, weld timers and automatic tool-changers in the automotive industry. Quick disconnect solutions for minimized integration time, downtime, installation and maintenance costs.

Unequalled contact reliability MULTILAM technology
Fast integration and easy maintenance
Extremely compact design with superior performance
First mate/last break PE-contact for additional safety
High current-carrying capacity, polarity protection
Ideal in combination with single-core conductors
A solution for each dresspack segment from J1 to J6, even with mixed crosssections
Easy replacement of upper and lower arm dress package helps reduce downtime and minimize production loss.

Specifications
Attribute Value
Number of Contacts 3
Mounting Type Cable Mount
Plug/Socket Socket
Termination Method Crimp
Current Rating 223.0A
IP Rating IP67
Contact Gender Female
Voltage Rating 1.0 kV
Series RobiFix
Housing Material Thermoplastic
Pole Format 3P
3 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 268.42
(exc. GST)
$ 295.26
(inc. GST)
units
Per unit
1 - 9
$268.42
10 - 99
$261.72
100 +
$246.03
