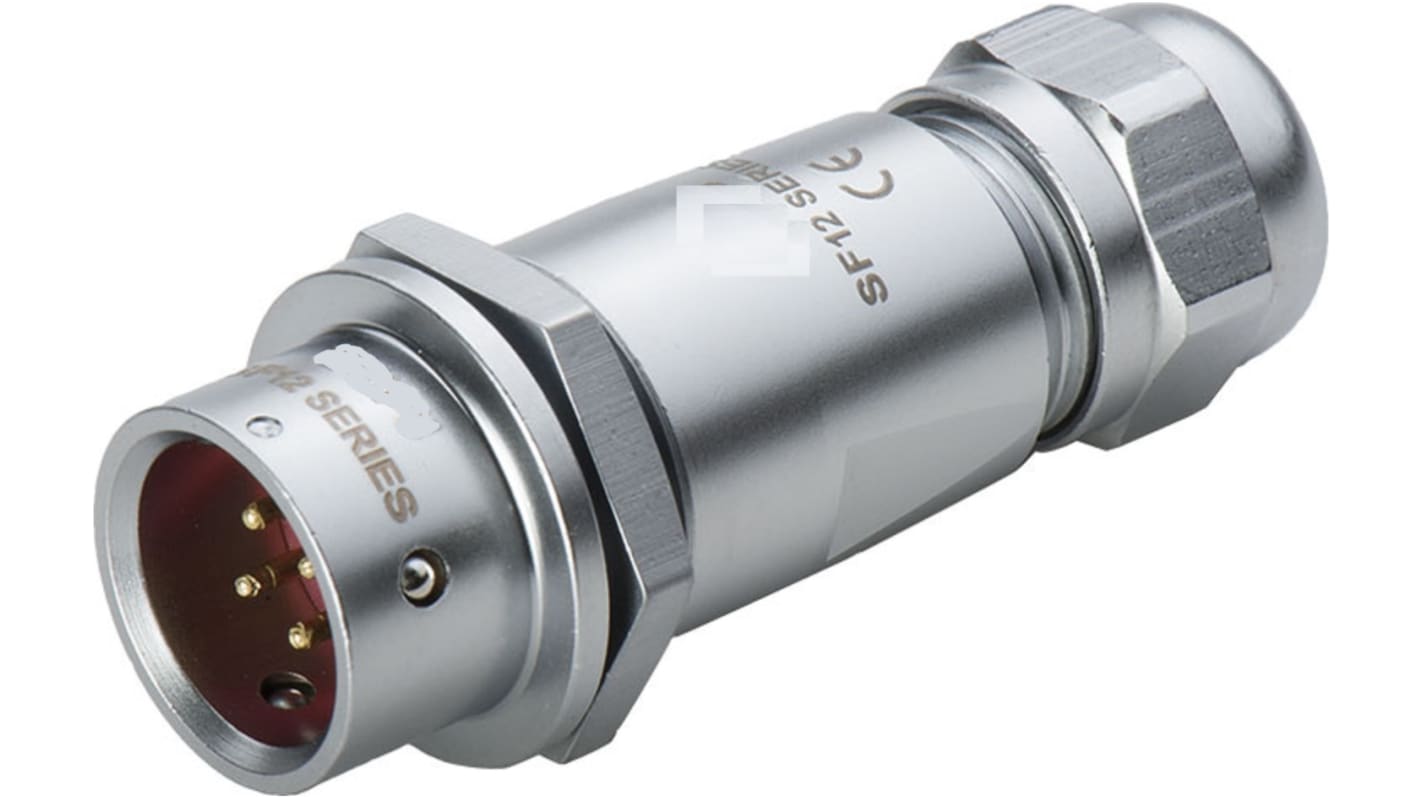

RS PRO Circular Connector, 2 Contacts, Cable Mount, M12 Connector, Plug, Male, IP67

RS Stock No.:: 124-6713
Brand:: RS PRO

RS PRO Circular Connector, 2 Contacts, Cable Mount, M12 Connector, Plug, Male, IP67

On back order for despatch 12/06/2024, delivery within 10 working days from despatch date.

Added

Price (ex. GST) Each

$55.33

(exc. GST)

$60.86

(inc. GST)

Units	Per unit
1 - 9	$55.33
10 - 49	$54.36
50 - 99	$52.95
100 - 499	$51.45
500 +	$42.35

RS Stock No.:: 124-6713
Brand:: RS PRO

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

M12 In-Line Push-Pull Cable Socket

From RS Pro, these push-pull sockets are serious contenders for your application. The convenient push-pull connection, makes it perfect in situations where accidental disconnects occur. That coupled with the IP67 rating, makes sure that this industrial connector excels in harsh environments. When choosing a female connector, this version should really be one you consider.

Features & Benefits

• Panel hole cutout diameter: 12 mm
• 2 way, 3 way, 4 way and 5 way all available
• Cable outer diameter: 4 mm to 6.5 mm see part numbers
124-6713 124-6714 124-6715 124-6716
• Cable outer diameter: 5 mm to 8 mm
124-6717 124-6719 124-6720 124-6721
• Solder termination
• Chrome plated brass shell material
• Inline cable mounted

RS Pro Push-Pull

Specifications

Attribute	Value
Number of Contacts	2
Mounting Type	Cable Mount
Connector Size	M12
Plug/Socket	Plug
Contact Gender	Male
Termination Method	Solder
IP Rating	IP67
Current Rating	13.0A
Body Orientation	Straight
Voltage Rating	250 V
Mating Type	Push-Pull
Housing Material	Metal
Pole Format	2P
Contact Plating	Gold
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
Contact Material	Brass
