RS PRO C19 Panel Mount IEC Connector Socket, 20.0A, 250.0 V


55 : Next working day (AU stock)
1123 : 7 working days (Global stock)
Add to Basket

Price (ex. GST) Each

$2.42

(exc. GST)

$2.66

(inc. GST)

units

Added

RS Stock No.:
776-9144
Manufacturer:
RS PRO
COO (Country of Origin):
IN
unitsPer unit
1 +$2.42

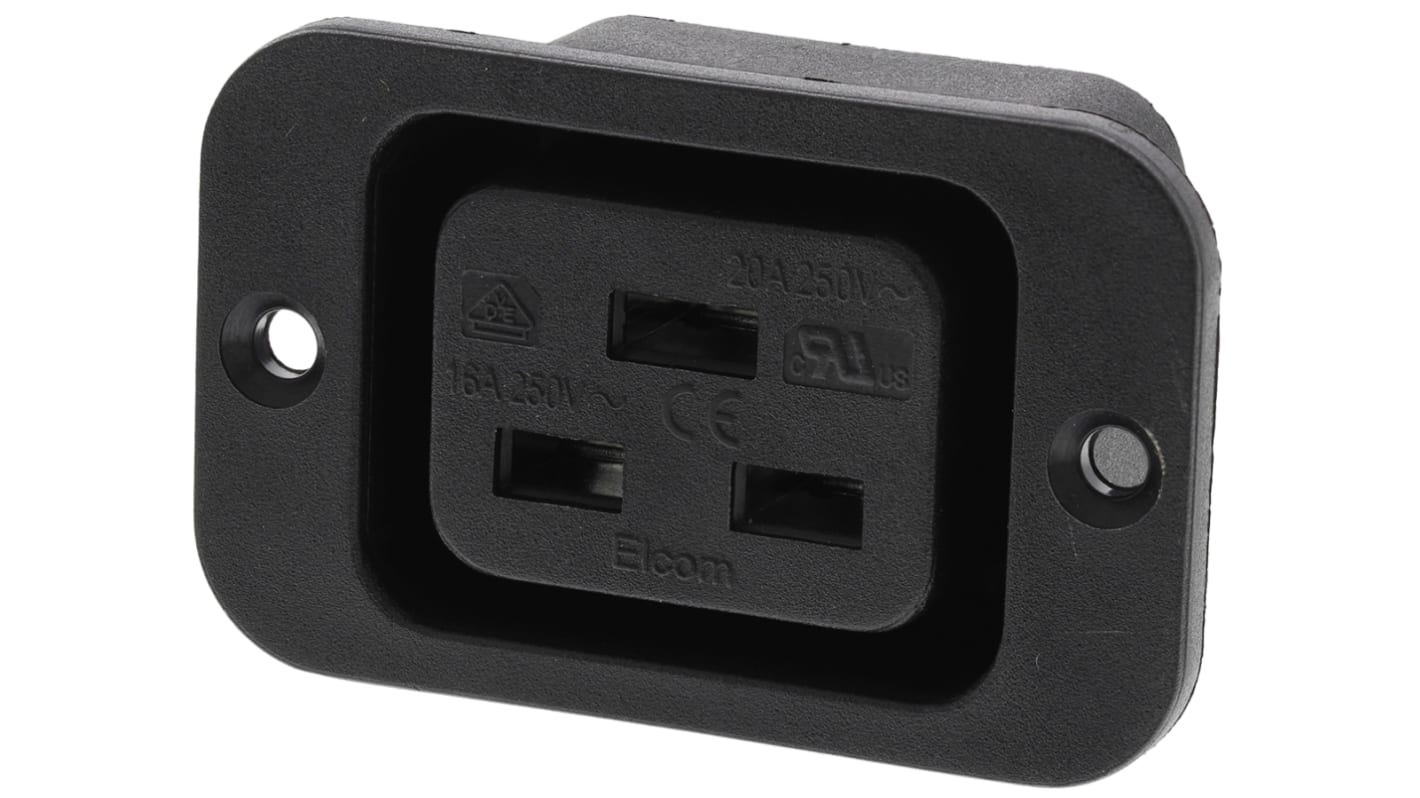

IEC Socket C19, Panel Mount Connector


IEC socket C19 variant, panel mount outlet connector with nylon-6 body and tin plated copper alloy mating contacts and 6.3x0.8mm faston terminals, rated at 16A (VDE) and 20A (UL,C-US), 250Vac. This C19 connector offers a hardwearing durable solution for many applications that require an IEC C19 panel mount socket connector.


Features and Benefits:
• HV Breakdown Test for 1 Minute: 2KVac
• Insulation Resistance at 500Vdc 1000 MΩ min.
• Permissible Temperature with/without load: 0 to 70 °C
• Current Rating 16Amps (VDE) 20Amps (UL,C-US), 250Vac
• Contact Resistance 10 mΩ max.
• Panel cut out 37.5 x 29.5 mm


Note

For associated connector see 776-9125

Standards

UL(C, US), VDE

AttributeValue
IEC Connector TypeC19
Mounting TypePanel Mount
GenderFemale
Current Rating20.0A
Body OrientationStraight
Termination MethodSolder/Faston
Switch TypeNone
Number of FusesNone
Voltage Rating250 V ac
