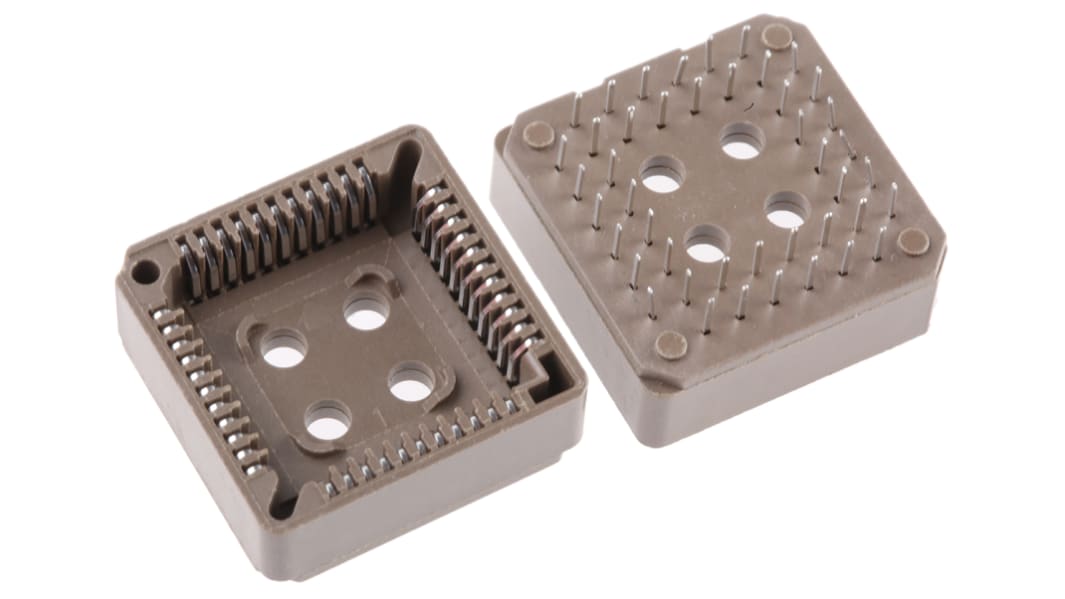

Preci-Dip 1.27mm Pitch 44 Way DIP PLCC Socket

  • RS Stock No. 701-9405
  • Mfr. Part No. 540-88-044-24-008
  • Manufacturer Preci-Dip
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Preci-dip 540 Series PLCC Sockets

These Swiss Preci-dip PLCC 540 Series sockets with SMT terminations to the PCB come with square sizes for IC packages according to JEDEC MO-047 and rectangular size (32 way) according to JEDEC MO-52, low profile.

Tape & Reel packs have Manufacturers Part Numbers ending in TR
Contact pressure minimum 1.5 N per contact
Mechanical life is a minimum of 50 cycles
Capacitance maximum 2 pF
Coplanarity SMD terminations maximum 0.1 mm

Standards

UL 94V-0

Specifications
Attribute Value
Package Type DIP
IC Socket Type PLCC Socket
Gender Female
Number of Contacts 44
Pitch 1.27mm
Body Orientation Straight
Contact Material Phosphor Bronze
Contact Plating Tin
Current Rating 1.0A
Voltage Rating 100 V ac, 150 V dc
Termination Method Solder
Housing Material Glass Fibre Reinforced PPS
100 In stock for delivery within 7 working day(s) (Global Stock)
Price (ex. GST) Each (In a Pack of 5)
Was $2.314
$ 1.89
(exc. GST)
$ 2.08
(inc. GST)
units
Per unit
Per Pack*
5 - 120
$1.89
$9.45
125 - 370
$1.838
$9.19
375 - 995
$1.742
$8.71
1000 - 1995
$1.692
$8.46
2000 +
$1.654
$8.27
*price indicative
