Winslow Right Angle SMT Mount 1.27mm Pitch IC Socket Adapter, 84 Pin Male PLCC to 84 Pin Male PLCC

RS Stock No.:: 741-9669
Mfr. Part No.:: W9328-ZC158
Brand:: Winslow

Winslow Right Angle SMT Mount 1.27mm Pitch IC Socket Adapter, 84 Pin Male PLCC to 84 Pin Male PLCC

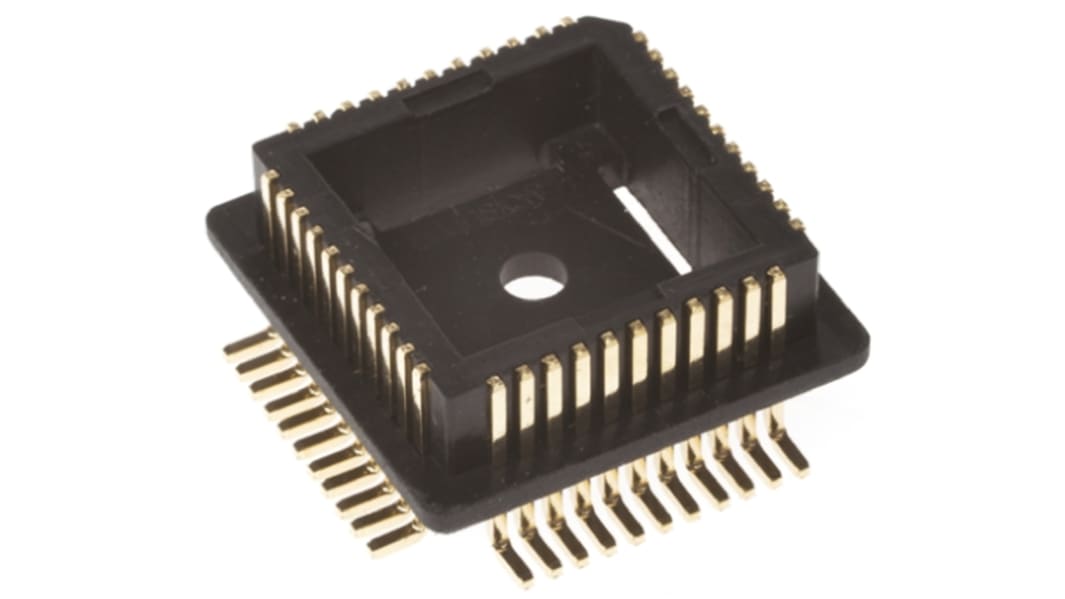

This image is representative of the product range

4 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$92.99

(exc. GST)

$102.29

(inc. GST)

Units	Per unit
1 - 24	$92.99
25 - 499	$89.74
500 +	$85.56

RS Stock No.:: 741-9669
Mfr. Part No.:: W9328-ZC158
Brand:: Winslow

Technical data sheets

PLCC Plugs Data Sheet

Legislation and Compliance

COO (Country of Origin):: GB

Product Details

SMT PLCC Plugs

Adaptic's Large Footprint Surface-mount (SMT) Plugs will mate with PLCC production sockets for connection of test equipment or daughter boards.

Specifications

Attribute	Value
Pitch	1.27mm
End 1	84 Pin Male PLCC
End 2	84 Pin Male PLCC
End 1 Number of Contacts	84
End 2 Number of Contacts	84
End 1 Type	PLCC
End 2 Type	PLCC
End 1 Gender	Male
End 2 Gender	Male
Mounting Type	Surface Mount
Body Orientation	Right Angle
Housing Material	Nylon
