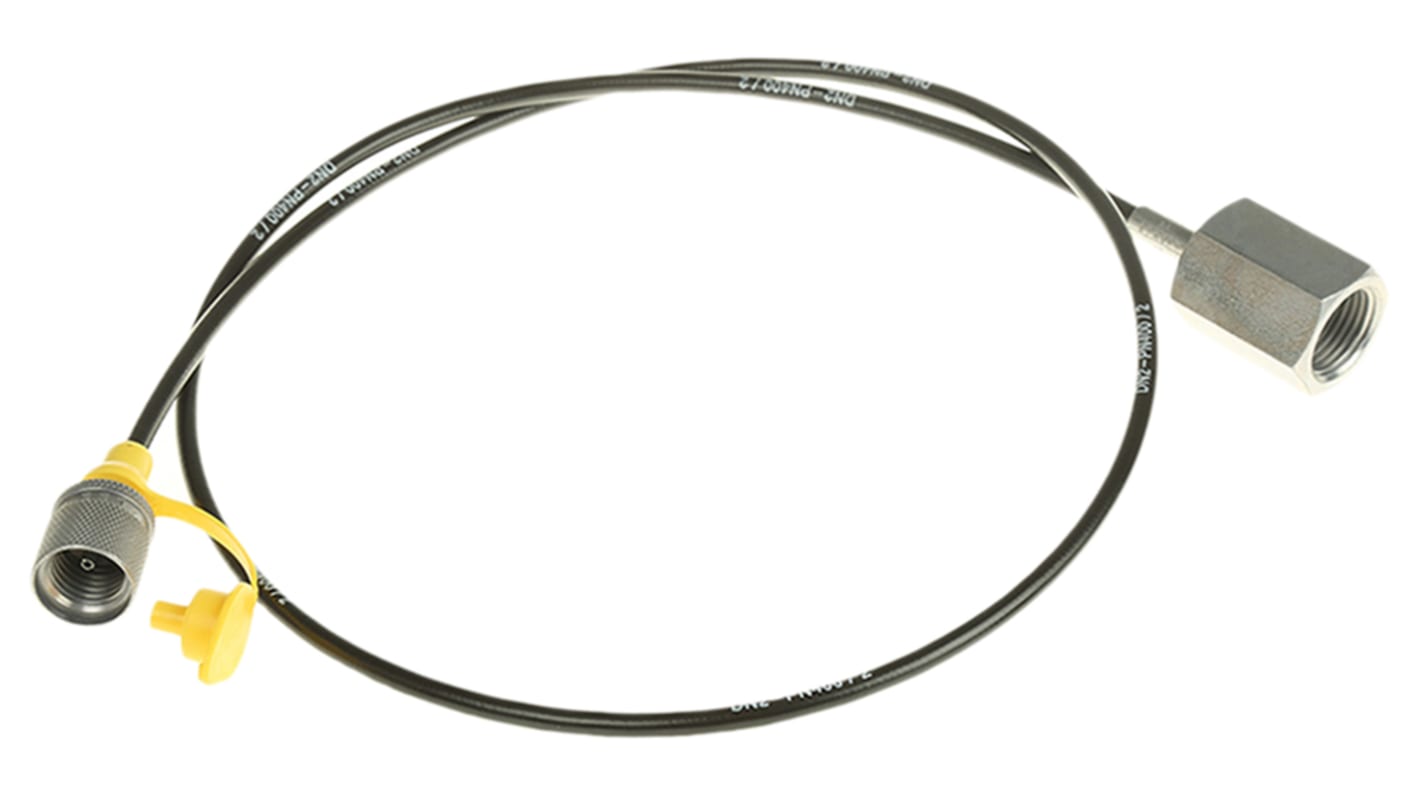

Stauff Hydraulic Test Point Hose SMS 20/M 1/2" 1000A, Connection A M16, Connection B G 1/2

  • RS Stock No. 432-5678
  • Mfr. Part No. SMS 20/M 1/2" 1000A
  • Manufacturer Stauff
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

Test Hose SMS

Gauge adaptor and test hose allow remote monitoring of hydraulic systems
Burst pressure 1100 bar
5mm hose outside diameter
Minimum bend radius 20mm
Pressure/temperature factor 122% (to 0°C), 110% (at 30°C), 100% (at 50°C), 86% (at 80°C), 77% (at 100°C)

Note

For measuring with liquid pressure media, bleed before connecting tube. Protect from fire, sharp corners and hot objects.

//media.rs-online.com/t_line/L432562-01.gif
Specifications
Attribute Value
Connection A Thread M16
Connection B Thread G 1/2
Length 1m
Hose Outside Diameter 5mm
Maximum Operating Pressure 630 bar
Burst Pressure 1100bar
Minimum Bend Radius 20mm
Minimum Operating Temperature -35°C
Connection B - Thread Standard G
Connection B - Thread Size 1/2 in
Maximum Operating Temperature +100°C
Connection A - Thread Standard Metric
Connection A - Thread Size M16
8 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 38.87
(exc. GST)
$ 42.76
(inc. GST)
units
Per unit
1 - 5
$38.87
6 - 11
$38.04
12 +
$37.49
