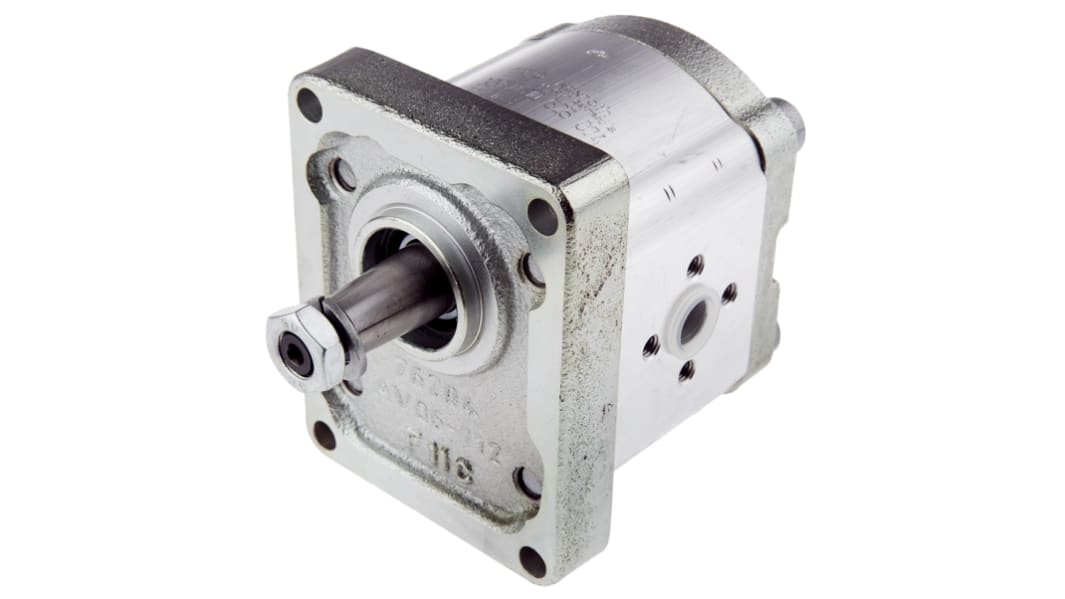

Bosch Rexroth Hydraulic Gear Pump 0510525074, 11cm³

RS Stock No.:: 511-5731
Mfr. Part No.:: 0510525074
Brand:: Bosch Rexroth

Bosch Rexroth Hydraulic Gear Pump 0510525074, 11cm³

4 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$377.28

(exc. GST)

$415.01

(inc. GST)

Units	Per unit
1 +	$377.28

RS Stock No.:: 511-5731
Mfr. Part No.:: 0510525074
Brand:: Bosch Rexroth

Technical data sheets

Legislation and Compliance

RoHS Status: Not Applicable

COO (Country of Origin):: DE

Product Details

Self Aspirating External Gear Pump, 1:8 Tapered Shaft

New principle for the housing sealing, giving long housing service life
Long service life for seals, even at maximum temperature
Plain bearing for high loads
Monoblock bearing
Simple and robust design
New principle of hydrostatic side clearance compensation

Note

Maximum permissible degree of contamination of pressure fluid to NAS 1638, Class10. To achieve this, we recommend a filter with a minimum retention rate of B₂₀ ≥100. To ensure a long service life; filtration to NAS 1638, Class 9 is recommended - this is achievable with a filter retention rate of B₁₀≥100.

Gear Pumps

Direction of rotation is clockwise. Nominal displacement is between 4cm³/rev and 22.4cm³/rev for maximum working pressures. Seal material is NBR (nitrile rubber). Fluid working temperature range is -15°C to +80°C. Recommended fluid is mineral oil and recommended viscosity is 10mm²/s to 300mm²/s.

Specifications

Attribute	Value
Displacement	11cm³
Continuous Operating Pressure	250bar
Maximum Operating Pressure	280 bar
Minimum Rotational Speed	500rpm
Manufacturer Series	AZP
Direction of Rotation	Clockwise
Maximum Rotational Speed	3500rpm
Minimum Speed At Maximum Pressure	700rpm
Body Dimensions	97.5 x 87 x 112mm
Weight	3.4kg
Body Height	112mm
Body Length	97.5mm
Body Width	87mm
