- RS Stock No.:
- 122-2309
- Mfr. Part No.:
- V66
- Brand:
- Enerpac
On back order for despatch 10/05/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each
$533.64
(exc. GST)
$587.00
(inc. GST)
Units | Per unit |
1 + | $533.64 |
- RS Stock No.:
- 122-2309
- Mfr. Part No.:
- V66
- Brand:
- Enerpac
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- US
Product Details

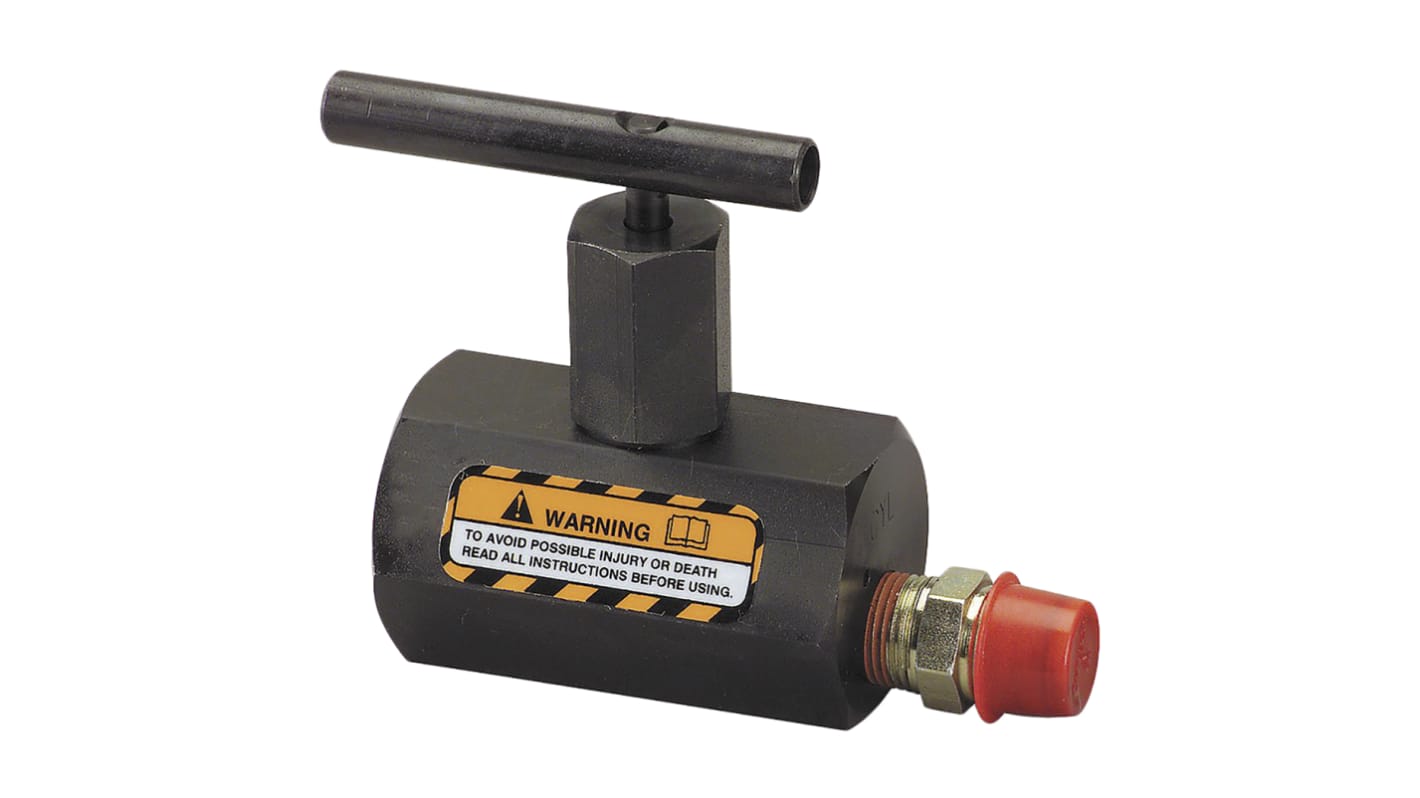

Manually Operated Check Valve
Enerpacs V-66 manually operate check valves are for use with both double and single acting cylinders. Used for load holding applications the check valve only allows oil to flow to the piston during operation. Oil can flow back to the reservoir when the lever is operated by hand.
Features and Benefits
Max pressure 700 bar
Nickel plated for corrosion resistance
NPTF porting ensures against leaks
Nickel plated for corrosion resistance
NPTF porting ensures against leaks
Applications
For use with Enerpacs double and singel acting hydraulic cyinders for load holding.
Hose Fittings & Accessories
Components for use with the Enerpac range of high-pressure hydraulic equipment. All fittings and valves are 700 bar pressure-rated and have 3/8 - 18 NPTF threads.
Note
Working pressure quoted is the maximum acceptable system pressure: 700 bar (10k bar).
Specifications
Attribute | Value |
---|---|
Connection Port Thread | NPTF 3/8-18 |
Thread Size | 3/8-18in |
Maximum Operating Pressure | 700bar |
Manufacturer Series | V |
Thread Standard | NPTF |
Maximum Operating Temperature | +65°C |
Mounting Type | Inline |
