RS PRO Intrepid Pleated Panel Filter, G4 Grade, 8 MERV Rating, 394 x 495 x 45mm
- RS Stock No.:
- 730-2870
- Brand:
- RS PRO
96 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Pack of 12)
$19.126
(exc. GST)
$21.039
(inc. GST)
| Units | Per unit | Per Pack* |
| 12 + | $19.126 | $229.512 |
| *price indicative | ||
- RS Stock No.:
- 730-2870
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

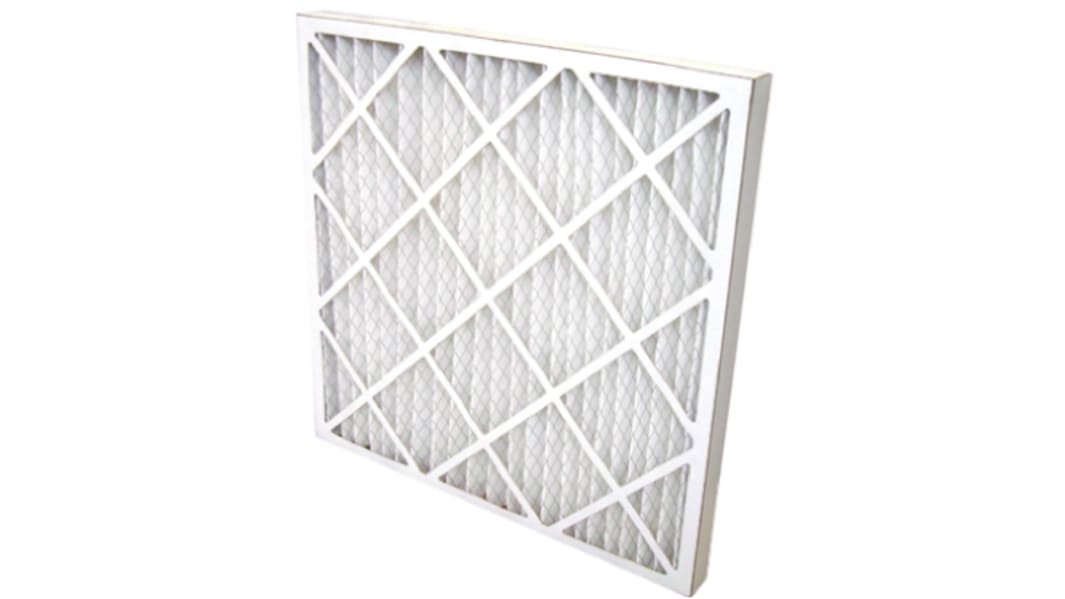

RS PRO Pleated Panel Filter, Intrepid Media, G4 Grade, 394 x 495 x 45 mm, 8
Keep dirt and debris out of your heating, ventilation and air conditioning (HVAC) systems with this RS PRO pleated panel filter. This unit provides both filtration and pre-filtration, ensuring that airborne particles are captured before they disrupt the functioning of your equipment.
The filter features an AquaKote® card frame. It's tear-resistant and water-repellent, making it less prone to damage and extending the life of the filter.
This product is manufactured with Kimberly Clark's proprietary Intrepid® filter media. Thanks to its low degree of airflow resistance, it provides energy savings of up to 40%. The filter features a graduated density so that dirt is distributed uniformly, preventing clogging and increasing the unit's capacity to hold debris.
The filter features an AquaKote® card frame. It's tear-resistant and water-repellent, making it less prone to damage and extending the life of the filter.
This product is manufactured with Kimberly Clark's proprietary Intrepid® filter media. Thanks to its low degree of airflow resistance, it provides energy savings of up to 40%. The filter features a graduated density so that dirt is distributed uniformly, preventing clogging and increasing the unit's capacity to hold debris.
Features and Benefits
- Pleated panel filter type
- Actual dimensions of 394 (height) x 495 (width) x 45 mm (depth)
- Nominal dimensions of 16 (height) x 20 (width) x 2 in (depth)
- White colour
- G4 filter grade
- Filter MERV rating of 8
- Final pressure drop of 250 Pa
- Initial pressure drop of 47 Pa
- Maximum air flow of 1404 m³/h
Specifications
Attribute | Value |
|---|---|
| Filter Type | Pleated Panel |
| Nominal Dimensions | 16 x 20 x 2in |
| Actual Dimensions | 394 x 495 x 45mm |
| ISO 16890 Class | ISO-C-85 |
| Filter MERV Rating | 8 |
| Filter Grade | G4 |
| Maximum Air Flow | 1404m³/h |
| Initial Pressure Drop | 47Pa |
| Final Pressure Drop | 250Pa |
| Colour | White |
| Case Material | AquaKote |
| Media Material | Intrepid |
| Actual Depth | 45mm |
| Nominal Height | 16in |
| Nominal Depth | 2in |
| Actual Width | 495mm |
| Nominal Width | 20in |
| Actual Height | 394mm |
| Nominal Dimensions Height x Width | 16 x 20 in, 16 x 20 x 2 in |
