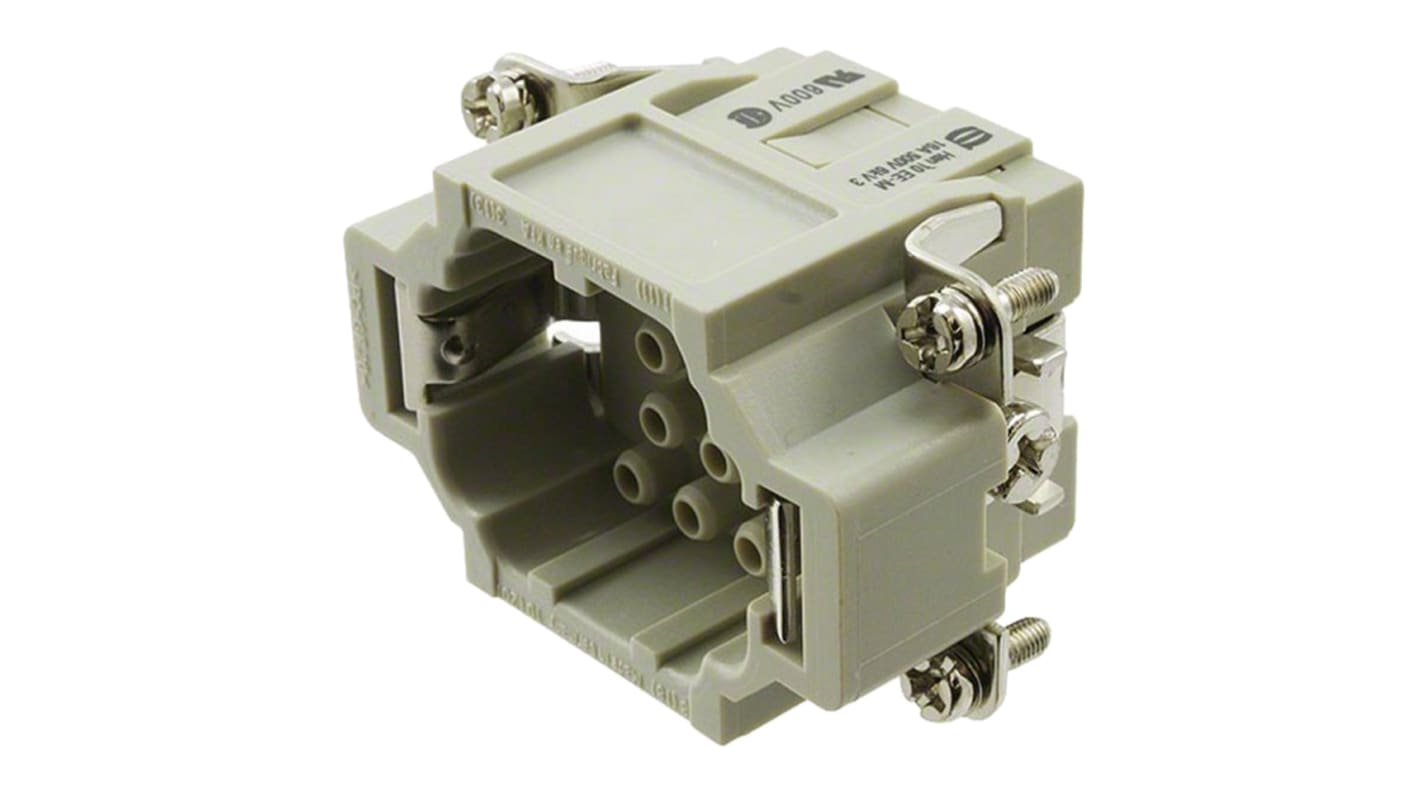

Han EE 932 Series size 6 B Connector Insert, Male, 10 Way, 16A, 500 V

  • RS Stock No. 848-6887
  • Mfr. Part No. 09320103001
  • Manufacturer HARTING
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): RO
Product Details

Han EE Module without Contacts

From Harting, the Han-Modular system provides a versatile heavy-duty connector solution. This Han EE series modular plug features innovative Han-Quick Lock termination, for rapid field assembly without the use of specialist tools. For a reliable modular connection with reduced wiring times, Han EE series modular plugs are ideal.

Features and Benefits:

• Quick Lock Termination for reduced wiring times
• Contacts supplied separately

Harting Han® Modular

The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.

Specifications
Attribute Value
Type Connector Insert
Series Han EE
Number of Contacts 10
Voltage Rating 500 V
Current Rating 16A
Termination Method Crimp
Series Number 932
Gender Male
6 : Next working day (AU stock)
51 : 5 working days (Global stock)
Price (ex. GST) Each
$ 33.10
(exc. GST)
$ 36.41
(inc. GST)
units
Per unit
1 - 11
$33.10
12 - 24
$32.29
25 +
$31.68
