- RS Stock No.:
- 848-6853
- Mfr. Part No.:
- 09140093101
- Brand:
- HARTING
- RS Stock No.:
- 848-6853
- Mfr. Part No.:
- 09140093101
- Brand:
- HARTING
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

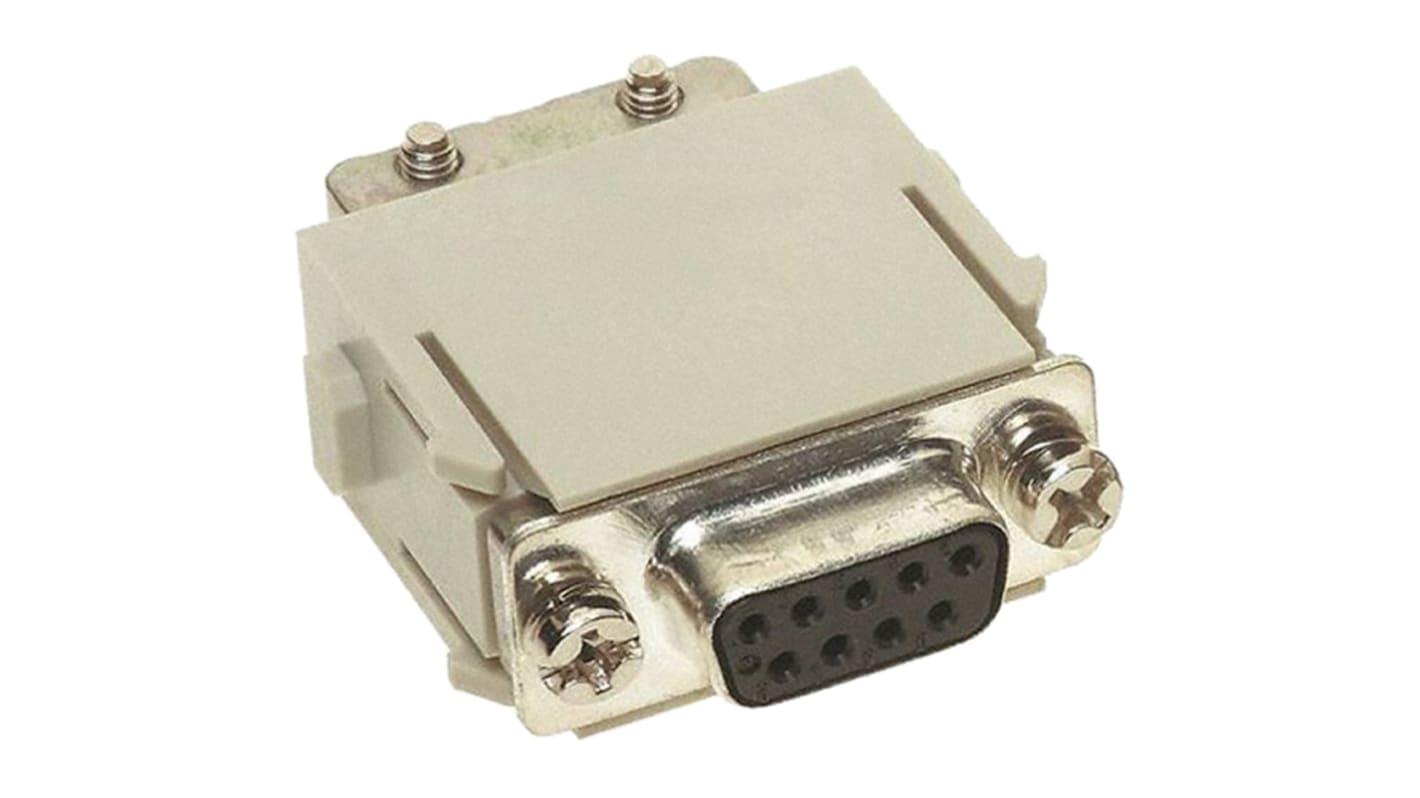

Han D-Sub Module
A range of Han D-sub adapter modules without D-sub insert offered in male and female versions and part of the Han Modular system.
Approvals
RU
Standards
DIN EN 60664-1, DIN EN 61984
Harting Han® Modular
The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.
Specifications
Attribute | Value |
---|---|
Current Rating | 5A |
Gender | Female |
Series | Han-Modular |
Type | D Sub Module |
Termination Method | Crimp |
Voltage Rating | 50 V |
Mounting Type | Cable Mount |
Number of Contacts | 9 |
Body Orientation | Straight |
Series Number | 914 |
