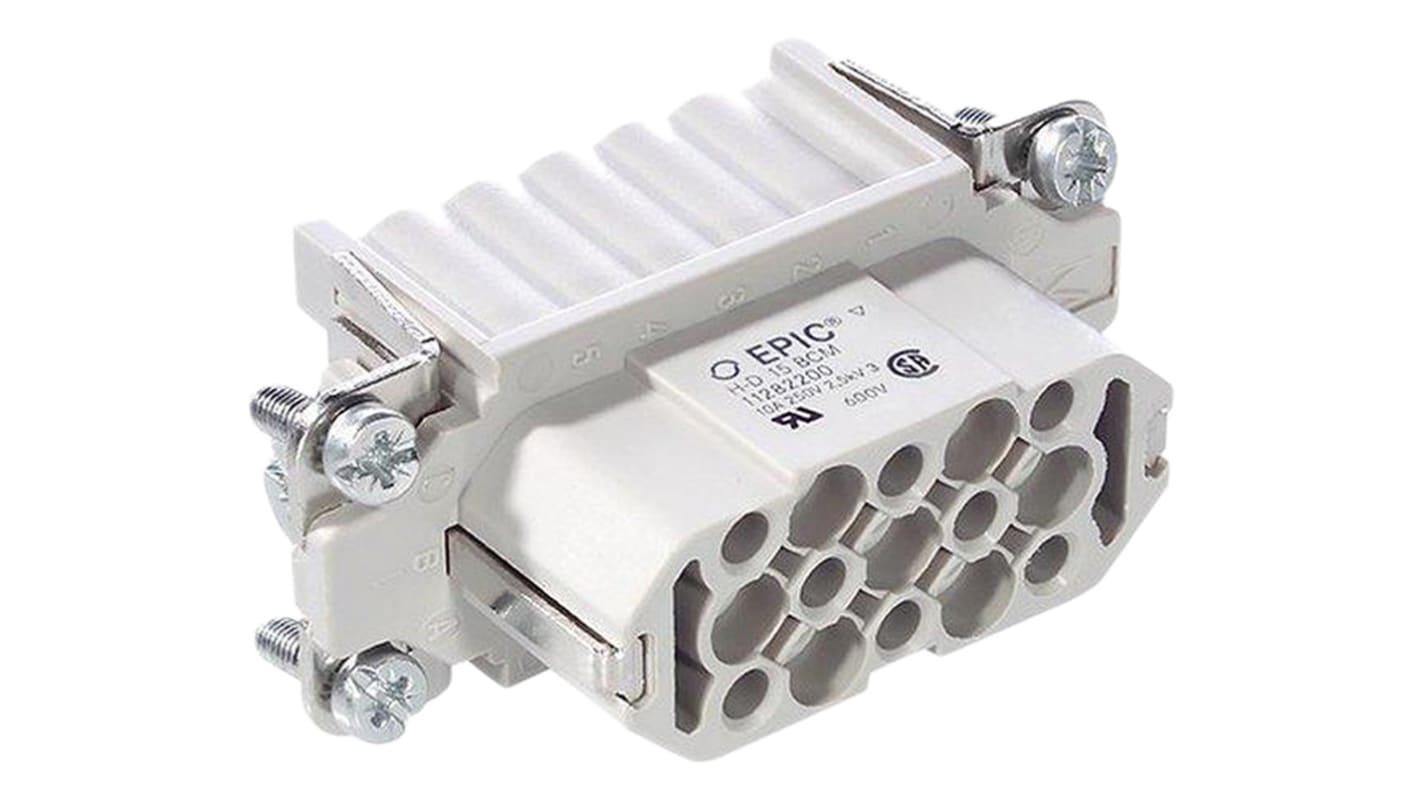

Epic Contact Heavy Duty Power Connector Insert, 10A, Male, H-D Series, 16 Contacts

RS Stock No.:: 495-5291
Mfr. Part No.:: 11282200
Brand:: Epic Contact

Epic Contact Heavy Duty Power Connector Insert, 10A, Male, H-D Series, 16 Contacts

7 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$23.80

(exc. GST)

$26.18

(inc. GST)

Units	Per unit
1 - 11	$23.80
12 - 24	$23.41
25 +	$22.36

RS Stock No.:: 495-5291
Mfr. Part No.:: 11282200
Brand:: Epic Contact

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

H-D 15 and 25 Way Assembled Plugs and Sockets

Crimp terminated machined contacts
Metal Body

Standards

VDE 0110//72, 0110b, 79, VDE 0627//86

Warning

Connectors should not be coupled and decoupled under electrical load. Connectors of the same or different series being mounted side by side may be protected against incorrect mating by the use of coding options.

Approvals

SEV, UL, CSA

H-D & H-DD

Assembled connectors are type tested to 10A 250V a.c. and include the following features:

High density contact loading gives more power and control connections in smaller shell sizes
Machined contacts available to provide reliable interconnection and serviceability. Order contacts separately
HD contacts are terminated simply and effectively using a quality 8 point indent crimp tool
Coupled connectors have protection rating of IP65
Plug and socket inserts are interchangeable and a separate earth connection is made through all inserts. The earth is connected to metal body shells

Specifications

Attribute	Value
Current Rating	10A
Gender	Male
Series	H-D
Type	Connector Insert
Termination Method	Crimp
Number of Rows	2
Voltage Rating	250 V
Mounting Type	Cable Mount
Number of Contacts	16
Contact Material	Copper Alloy
Contact Plating	Gold, Silver
Body Orientation	Straight
