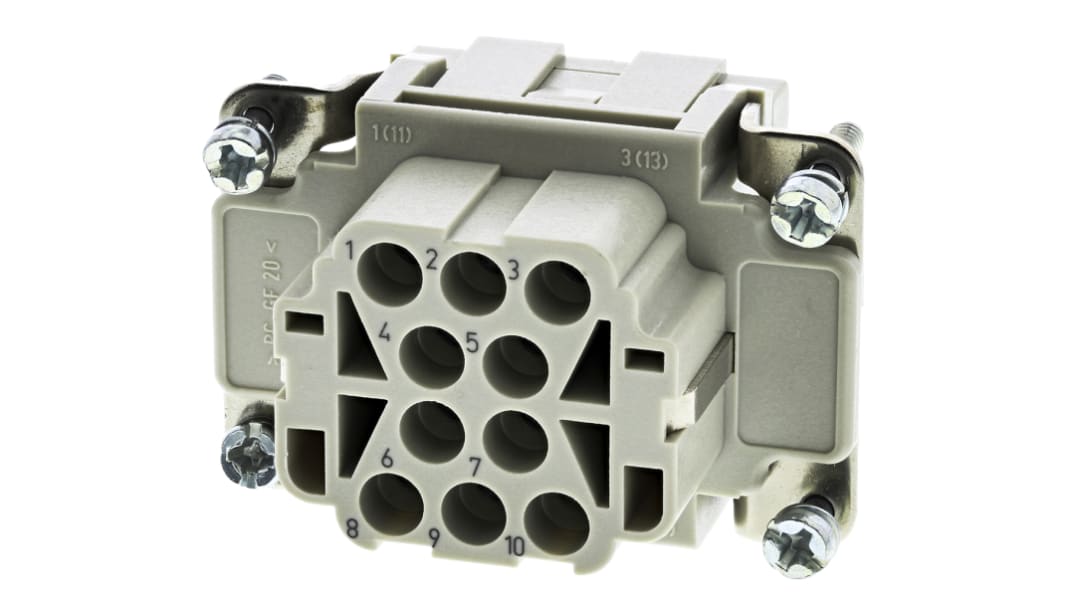

Han EE Series size 6 B Connector Insert, Female, 10 Way, 16A, 500 V

  • RS Stock No. 282-9190
  • Mfr. Part No. 09320103101
  • Manufacturer HARTING
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Crimp Inserts

Poles: 10-46 (crimp connection)
Contacts must be ordered separately
Option of 1.5mm² and 2.5mm² contacts

Approvals

UL, CSA, SEV

//media.rs-online.com/t_line/L282914-01.gif

Han® EE 16A Crimp Series

These Han® EE inserts are rated at 16A. They are intended for use with hoods and housings contained within ranges 5, 6, 7, & 8. These hood and housing ranges are associated to a specific Harting 'Size' number identifier. See the 'compatibility' table for details of this relationship, and stock numbers of hoods and housings that are typical of each range.

Warning

  • These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of a wrong connection
Specifications
Attribute Value
Type Connector Insert
Series Han EE
Thread Size M3 x 10
Pole Format 10P+E
Number of Contacts 10
Voltage Rating 500 V
Current Rating 16A
Number of Rows 4
Gender Female
14 : Next working day (AU stock)
52 : 5 working days (Global stock)
Price (ex. GST) Each
$ 35.51
(exc. GST)
$ 39.06
(inc. GST)
units
Per unit
1 - 49
$35.51
50 - 99
$31.90
100 - 249
$30.97
250 - 499
$30.13
500 +
$29.61
