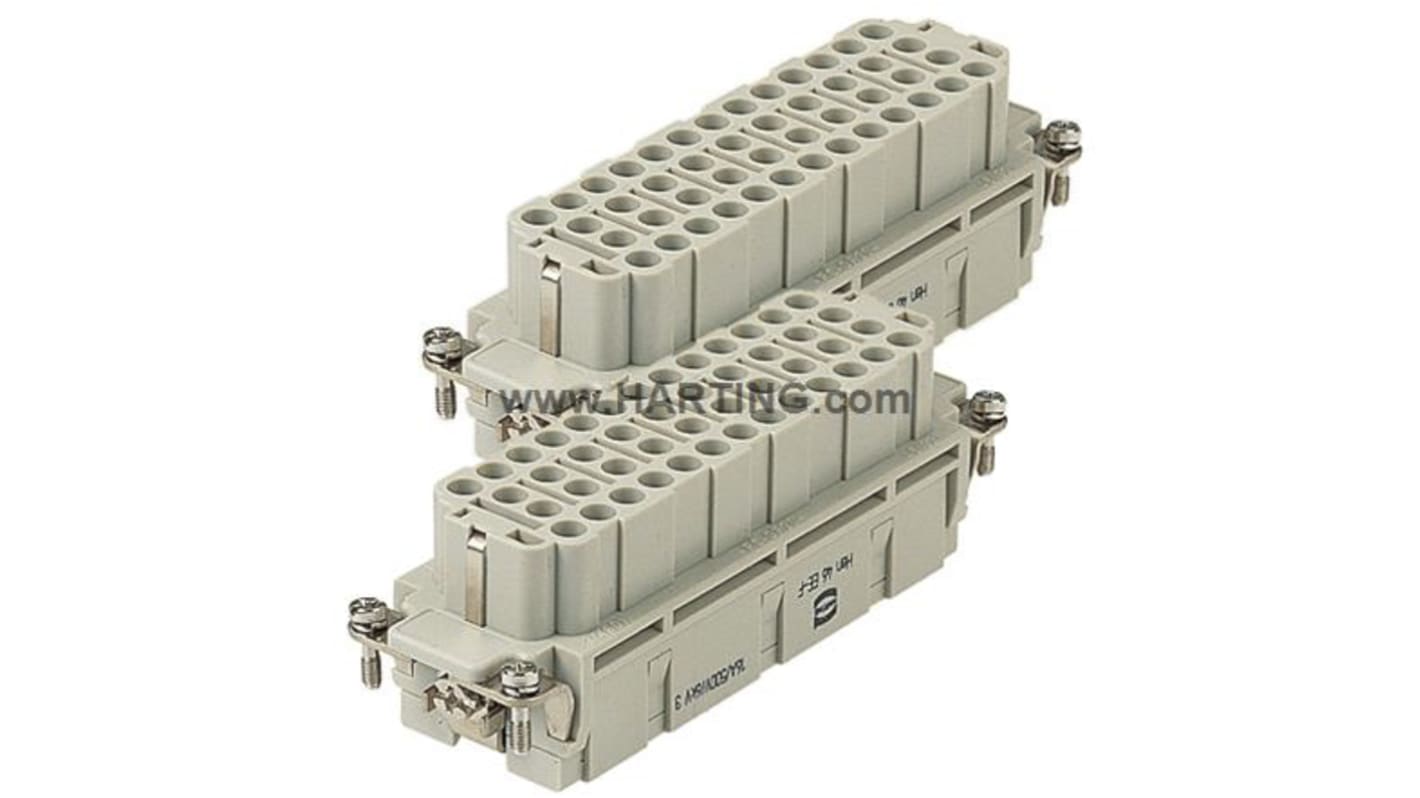

HARTING Heavy Duty Power Connector Insert, 16A, Female, Han EE Series, 46 Contacts
- RS Stock No.:
- 175-1345
- Mfr. Part No.:
- 09320463111
- Brand:
- HARTING
2 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$71.12
(exc. GST)
$78.23
(inc. GST)
| Units | Per unit |
| 1 - 4 | $71.12 |
| 5 + | $64.01 |
- RS Stock No.:
- 175-1345
- Mfr. Part No.:
- 09320463111
- Brand:
- HARTING
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- RO
Product Details
HARTING Insert
The HARTING Han E series 46-pole 46-way cable mount female insert has a voltage rating of 600V and current rating of 16A. This insert uses a screw termination and has a straight body orientation.
Features and Benefits
• Limiting temperature ranges between -40°C and 125°C
Certifications
• CSA-C22.2
• EN 60664-1
• IEC 61984
• UL 1977 ECBT2. E235076
• UL 2237 PVVA2. E318390
• EN 60664-1
• IEC 61984
• UL 1977 ECBT2. E235076
• UL 2237 PVVA2. E318390
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Current Rating | 16A |
| Gender | Female |
| Series | Han EE |
| Type | Connector Insert |
| Termination Method | Crimp |
| Pole Format | 46P |
| Number of Rows | 4 |
| Voltage Rating | 600 V |
| Mounting Type | Cable Mount |
| Number of Contacts | 46 |
| Body Orientation | Straight |
