HARTING Heavy Duty Power Connector Insert, 16A, Male, Han ES Press Series, 24 Contacts

RS Stock No.:: 113-8685
Mfr. Part No.:: 09330242648
Brand:: HARTING

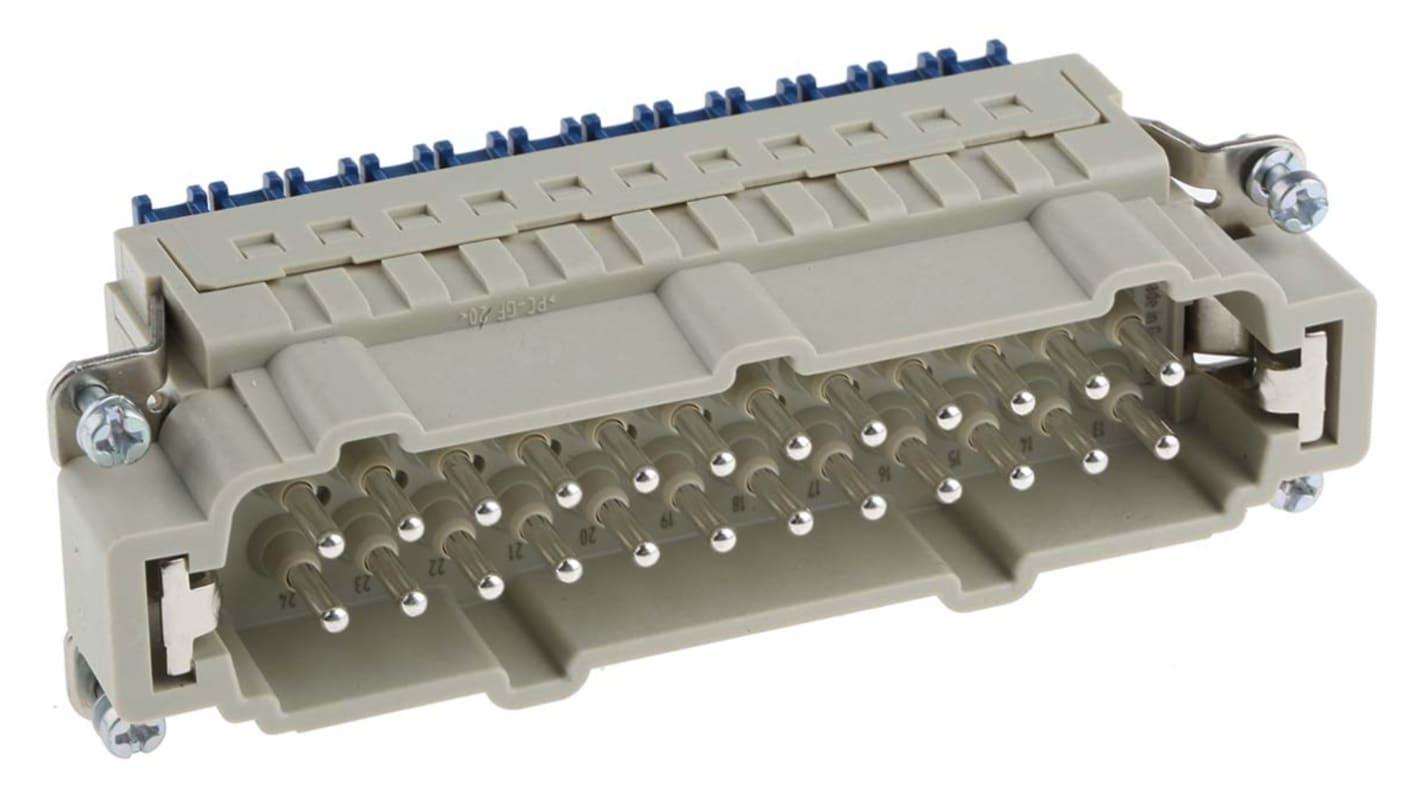

HARTING Heavy Duty Power Connector Insert, 16A, Male, Han ES Press Series, 24 Contacts

17 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$65.54

(exc. GST)

$72.09

(inc. GST)

Units	Per unit
1 - 24	$65.54
25 - 49	$64.97
50 +	$63.67

RS Stock No.:: 113-8685
Mfr. Part No.:: 09330242648
Brand:: HARTING

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

Harting Han ES Press Modular Inserts

Han ES Press male and female modular inserts with a vibration proof design, silver plated contacts and a 16 A rated current. These Han ES Press inserts feature cage clamp terminations for quick and easy wiring, no additional tooling is required. The inserts accept a wire size range of 0.14 mm2 to 2.5 mm2. Optional ES Press plug in jumpers can be used to quickly and easily bridge contacts directly in the connector. The jumpers can also be used to implement Star and Delta Motor connections. These Han 16 ES Press and Han 24 ES Press modular inserts can be used with Han B, Han M, Han EMC, Han Easy Hood, Han HPR hoods and housing. All models are highly reliable and excellent quality.

Features and Benefits

Cage clamp terminations for quick and easy wiring

Vibration proof design

Accept plug in jumpers for contact bridging and Star and Delta • • Motor connections

Multiple connection possibilities

Can with used with wide range of hoods and housings

Han ES Press

Specifications

Attribute	Value
Current Rating	16A
Gender	Male
Series	Han ES Press
Type	Connector Insert
Termination Method	Cage Clamp
Pole Format	24P
Number of Rows	2
Voltage Rating	500 V
Mounting Type	Panel Mount
Range	Han ES
Number of Contacts	24
Thread Size	M3 x 10
Contact Plating	Silver
Body Orientation	Straight
Contact Material	Copper Alloy
