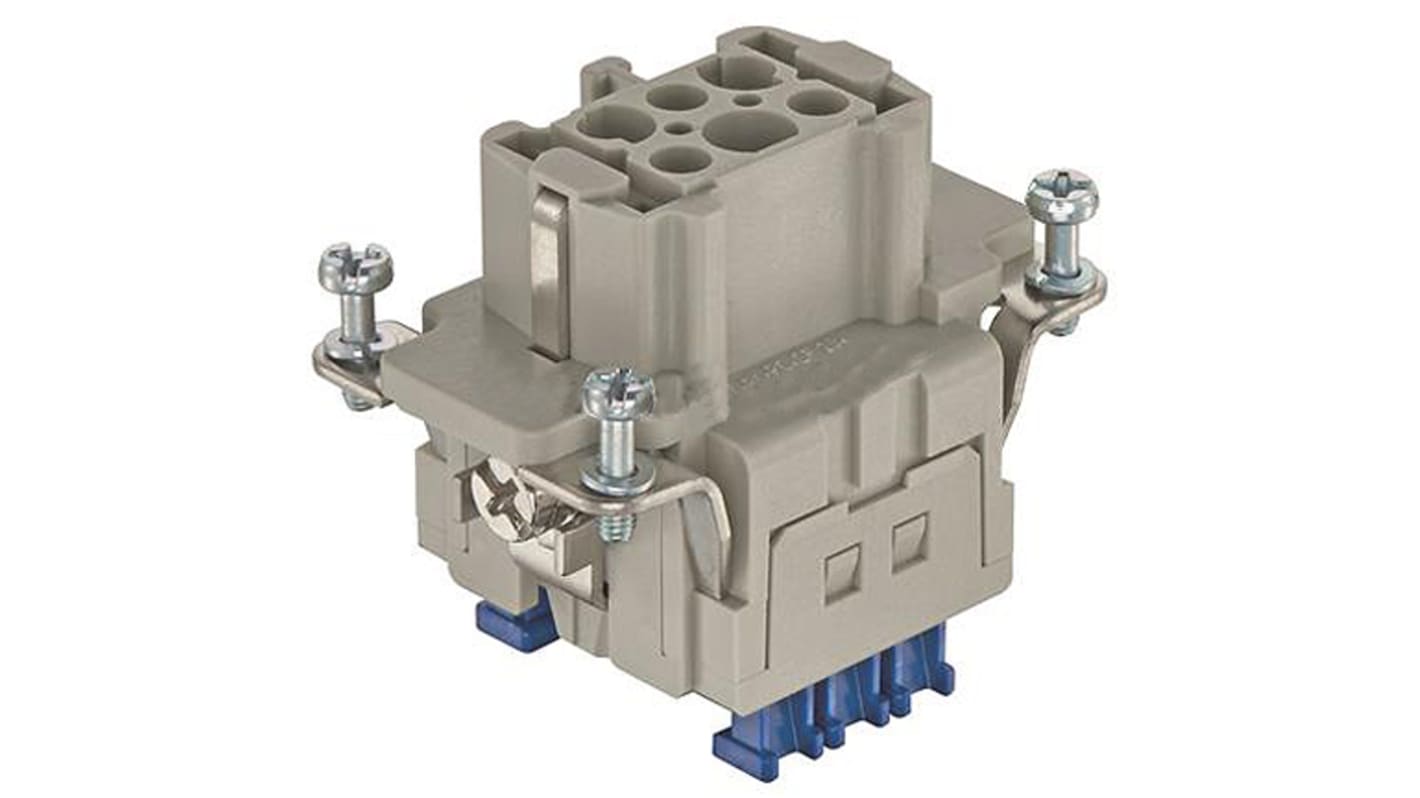

Han ES Press Series size 6 B Panel Mount Connector Insert, Female, 6 Way, 16A, 500 V

  • RS Stock No. 113-8680
  • Mfr. Part No. 09330062748
  • Manufacturer HARTING
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Harting Han ES Press Modular Inserts

Han ES Press male and female modular inserts with a vibration proof design, silver plated contacts and a 16 A rated current. These Han ES Press inserts feature cage clamp terminations for quick and easy wiring, no additional tooling is required. The inserts accept a wire size range of 0.14 mm2 to 2.5 mm2. Optional ES Press plug in jumpers can be used to quickly and easily bridge contacts directly in the connector. The jumpers can also be used to implement Star and Delta Motor connections. These Han 16 ES Press and Han 24 ES Press modular inserts can be used with Han B, Han M, Han EMC, Han Easy Hood, Han HPR hoods and housing. All models are highly reliable and excellent quality.

Features and Benefits

Cage clamp terminations for quick and easy wiring Vibration proof design
Accept plug in jumpers for contact bridging and Star and Delta • • Motor connections
Multiple connection possibilities
Can with used with wide range of hoods and housings

Han ES Press

Specifications
Attribute Value
Type Connector Insert
Series Han ES Press
Contact Plating Silver
Contact Material Copper Alloy
Thread Size M3 x 10
Pole Format 6P
Number of Contacts 6
Range Han ES
Voltage Rating 500 V
Current Rating 16A
Mounting Type Panel Mount
Termination Method Cage Clamp
Number of Rows 2
Gender Female
Body Orientation Straight
3 : Next working day (AU stock)
25 : 5 working days (Global stock)
Price (ex. GST) Each
$ 30.88
(exc. GST)
$ 33.97
(inc. GST)
units
Per unit
1 - 9
$30.88
10 - 24
$30.36
25 - 49
$29.56
50 +
$28.18
