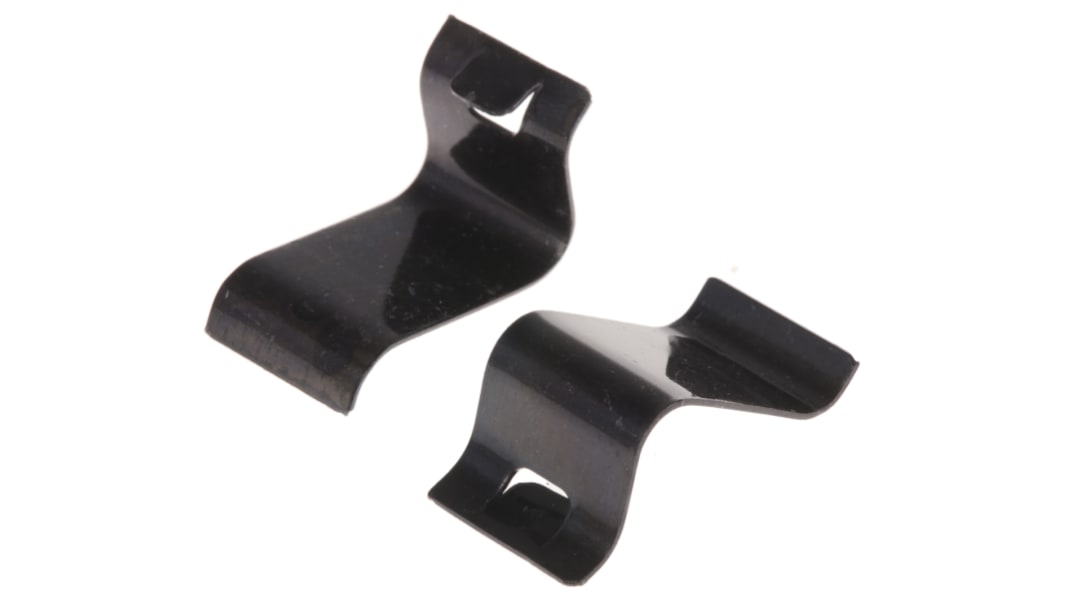

Heatsink Clip for use with Heatsink PPN Series

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

PPN Series, TO220 Board Mount, Clip-On

ABL heatsinks suitable for a wide range of applications.

Specifications
Attribute Value
Accessory Type Clip
For Use With Heatsink PPN Series
150 In stock for delivery within 7 working day(s) (Global Stock)
Price (ex. GST) Each (In a Pack of 10)
$ 0.659
(exc. GST)
$ 0.725
(inc. GST)
units
Per unit
Per Pack*
10 - 40
$0.659
$6.59
50 - 190
$0.643
$6.43
200 - 490
$0.625
$6.25
500 - 990
$0.608
$6.08
1000 +
$0.593
$5.93
*price indicative
