Heatsink Adhesive Tape for use with Heatsink

  • RS Stock No. 477-4856
  • Mfr. Part No. BP100-0.005-00-00-12
  • Manufacturer Bergquist
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

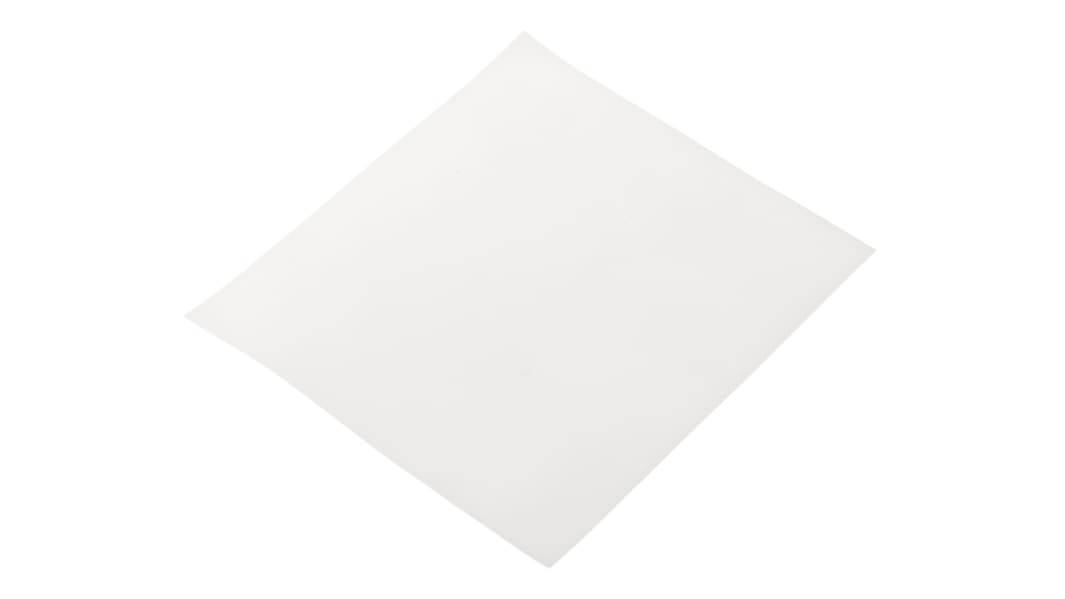

Bond-Ply 100

Bond-Ply 100 is thermally conductive, double-sided pressure sensitive adhesive tape. It is designed to attain high bond strength with long term exposure to moderate heat and high humidity. Can be used instead of Heat Cure Adhesives, Screw Mounting, Clip Mounting. Available in four different sizes.

Uses include:

Mounting heatsink to BGA graphic processor
Mounting heatsink onto computer processor
Mounting heatsink onto drive processor

Note

Stock Number 477-4856 dimensions 150 x 150 x 0.127 mm
Stock Number 477-4862 dimensions 50 x 50 x 0.127 mm
Stock Number 4774878 dimenssions 250x 25 x 0.127 mm

Specifications
Attribute Value
Accessory Type Adhesive Tape
For Use With Heatsink
5 : Next working day (AU stock)
93 : 5 working days (Global stock)
Price (ex. GST) Each
$ 34.27
(exc. GST)
$ 37.70
(inc. GST)
units
Per unit
1 - 49
$34.27
50 - 99
$33.69
100 - 249
$33.05
250 - 499
$32.41
500 +
$31.85
