Mini HDMI, RA, SMT

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

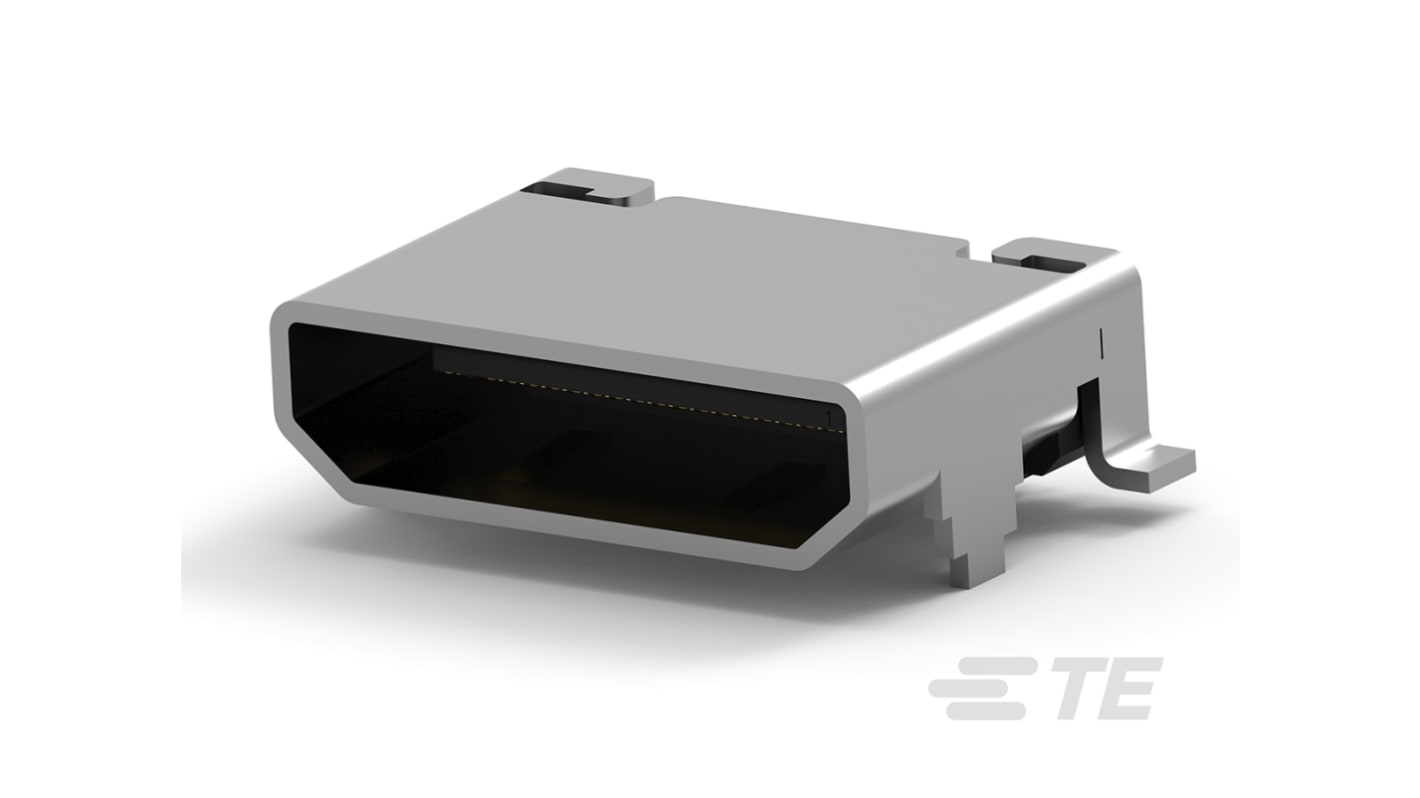

TE Connectivity 2013978-1

Connector Style=Receptacle, Size=Mini, Orientation=Right Angle, Connector System=Cable-to-Board, Connector & Contact Terminates To=Printed Circuit Board, Stacked=No, Number of Ports=1, Number of Positions=19, Preloaded=Yes, Shell Plating Finish=Matte, Shell Plating Material=Tin over Nickel, Contact Current Rating (Max)=.5 A, Contact Mating Area Plating Material=Gold, Contact Termination Type=Surface Mount, Termination Method=Solder, PCB Mount Retention Type=Straight Leg, Mounting Location=Top, PCB Mounting Style=Surface Mount, Connector Mounting Type=Board Mount, Centerline (Pitch)=.4 mm, Housing Color=Black, PCB Thickness (Min)=1.6 mm, Tail Length=.5 mm, Mating Cycles (Max)=5000, Soldering Temperature (Max)=250 °C, Operating Temperature Range=-25 – 70 °C, Assembly Process Feature=Tape, Circuit Application=Signal, Packaging Method=Tape & Reel

Specifications
Attribute Value
Gender Female
Number of Contacts 19
Size Miniature
Contact Material Copper Alloy
Contact Plating Gold
Body Orientation Right Angle
Termination Method Solder
Current Rating 500mA
Housing Material Thermoplastic
Colour Black
Maximum Operating Temperature +70°C
Minimum Operating Temperature -25°C
Series Number 2013978
775 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each (On a Tape of 5)
$ 4.53
(exc. GST)
$ 4.98
(inc. GST)
units
Per unit
Per Tape*
5 - 20
$4.53
$22.65
25 - 95
$4.252
$21.26
100 - 195
$3.996
$19.98
200 - 395
$3.694
$18.47
400 +
$3.40
$17.00
*price indicative
