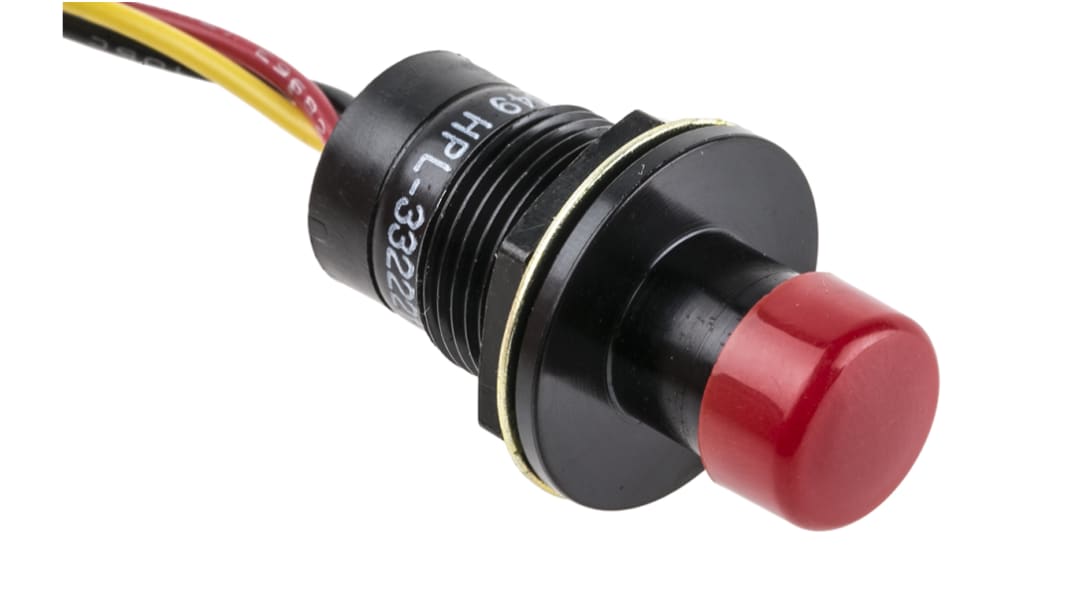

Hall Effect Switch Button Through Hole, -40 → +85°C

  • RS Stock No. 294-252
  • Mfr. Part No. HPL-3322212
  • Manufacturer Otto
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Hall Effect Linear Output Switches

Revolutionary switches utilising Hall Effect technology, to provide the user with a reliable output, proportional to the travel of the button. These rugged switches are ideal for applications where a simple On/Off control is insufficient and a linear output is required in harsh environments. They enable an operator to control the motion of a device, as well as the speed of the movement, making them ideal control devices for valves, variable speed drives, as well as industrial control of heavy equipment and material handling applications.

Programmable outputs of 0.5 to 4.5 Volts
Front mounting with 5/8" thread
Available with either black or red actuator buttons
Continuous current output 1 mA max
Reverse voltage protection -5 V max.
Button travel: 0.14 to 0.16 in.
Operating force: 2.0 ± 0.2 lbs
Button material: thermoplastic

//media.rs-online.com/t_line/L0294252-01.gif
Specifications
Attribute Value
Switch Life 1000000Operations
Actuator Type Button
Terminal Type Through Hole
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
Operating Temperature Range -40 → +85°C
On back order for despatch 03/06/2019, delivery within 5 working days from despatch date.
Price (ex. GST) Each
$ 74.87
(exc. GST)
$ 82.36
(inc. GST)
units
Per unit
1 - 24
$74.87
25 - 99
$71.99
100 - 249
$69.42
250 - 499
$67.11
500 +
$65.01
