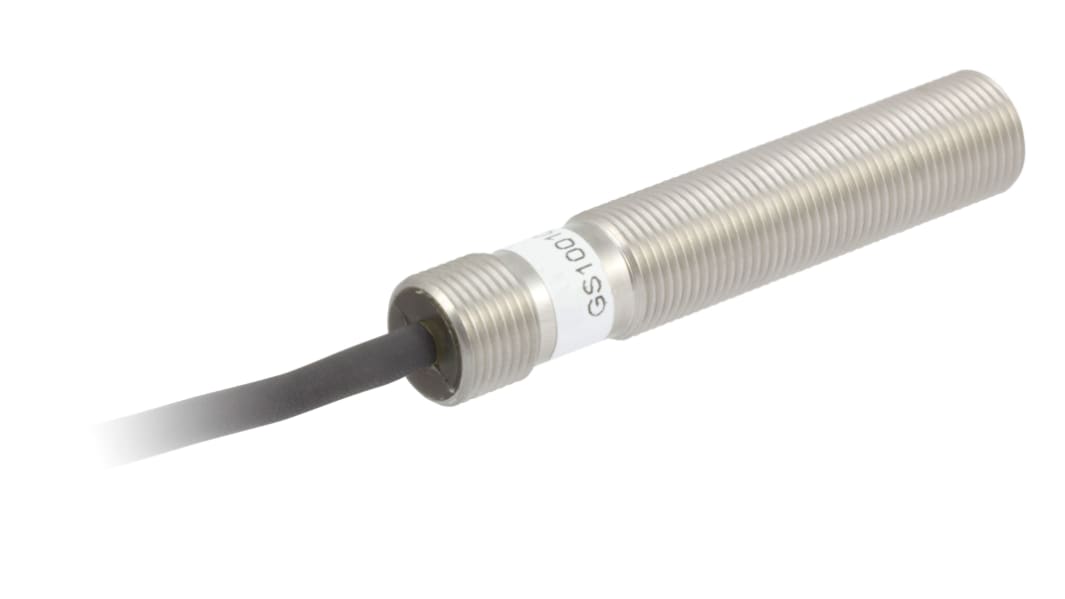

ZF NPN Hall Effect Sensor switching current 20 mA supply voltage 4.5 24 V dc

  • RS Stock No. 765-9319
  • Mfr. Part No. GS100102
  • Manufacturer Cherry
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

GS1001 Series Hall Effect Sensors

The Cherry GS1001 series of gear tooth sensors are hall effect sensors that are designed for use in applications where ferrous edge detection or near zero speed sensing is required.

Stainless steel housing
High speed capability
Immune to rotational alignment
Sinking (Open Collector) Output
M12 connector

Specifications
Attribute Value
Output Type NPN
Body Style Barrel
Mounting Style Panel Mount
Supply Voltage 4.5 24 V dc
Terminal Type Wire Lead
Maximum DC Voltage 24V
Switching Current 20 mA
Length 65.5mm
Maximum Operating Temperature +125°C
Reverse Polarity Protection Yes
Minimum Operating Temperature -40°C
Housing Material Stainless Steel
IP Rating IP68
