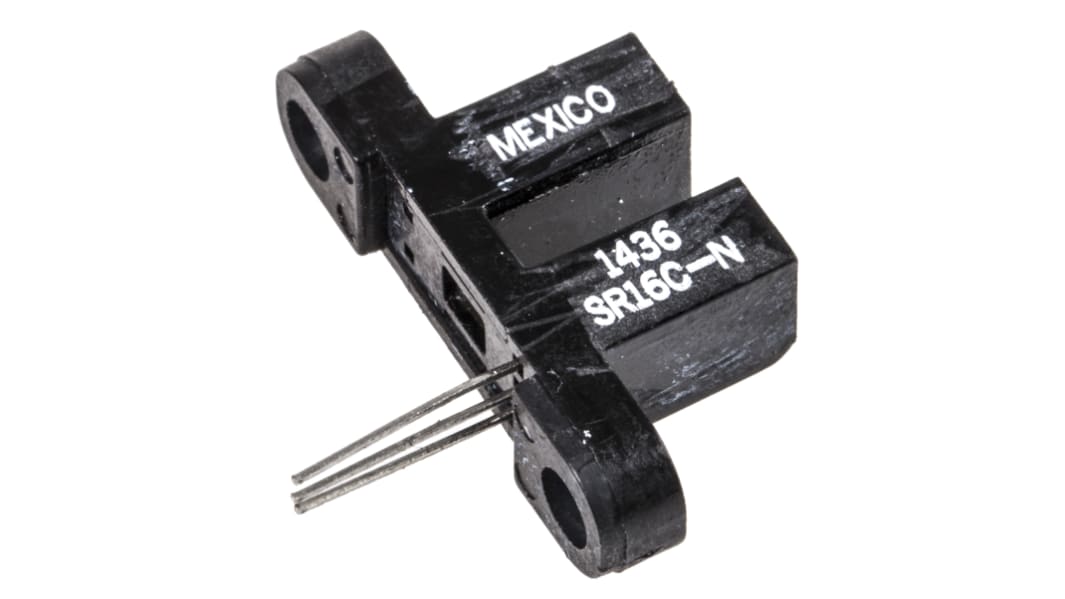

Honeywell Digital Hall Effect Sensor switching current 50 mA supply voltage 3.8 30 V dc

  • RS Stock No. 169-7673
  • Mfr. Part No. SR16C-N
  • Manufacturer Honeywell
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

Series SR 16/SR 17 Hall effect sensor

Hall effect vanes with integrated magnet for detecting metal targets.
Ideal for detection or counting applications that cannot be carried out with an infrared sensor.
For use in dirty and dusty industrial environments.
Vertical or lateral mounting, pin or wire output depending on model.

Specifications
Attribute Value
Output Type Digital
Supply Voltage 3.8 30 V dc
Terminal Type Wire Lead
Maximum DC Voltage 30V
Switching Current 50 mA
Length 24.6mm
Width 10.9mm
Depth 6.4mm
Dimensions 24.6 x 10.9 x 6.4 mm
Maximum Operating Temperature +85°C
Minimum Operating Temperature -20°C
On back order for despatch 20/05/2020, delivery within 5 working days from despatch date.
Price (ex. GST) 1 Bag of 100
$ 1,532.00
(exc. GST)
$ 1,685.20
(inc. GST)
Bag(s)
Per Bag
Per unit*
1 +
$1,532.00
$15.32
*price indicative
