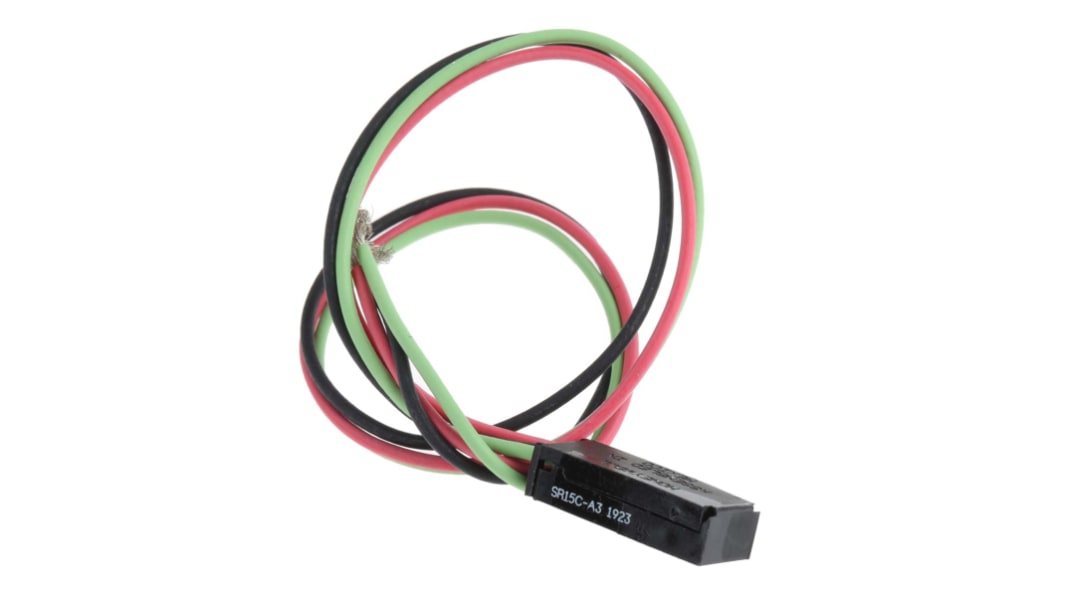

Honeywell Digital Hall Effect Sensor switching current 20 mA supply voltage 3.8 → 30 V dc

  • RS Stock No. 169-7671
  • Mfr. Part No. SR15C-A3
  • Manufacturer Honeywell
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): MX
Product Details

SR13 and SR15 series Hall effect sensors

Hall effect sensors in plastic casing with wires.
Flat or quick fit snap-in casing for rapid assembly.
Used in association with a magnet.
Application in various types of detection, low cost.

Specifications
Attribute Value
Output Type Digital
Supply Voltage 3.8 → 30 V dc
Terminal Type Wire Lead
Switching Current 20 mA
Length 7.6mm
Width 20.3mm
Depth 5.1mm
Dimensions 7.6 x 20.3 x 5.1 mm
Maximum Operating Temperature +150°C
Minimum Operating Temperature -40°C
100 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each (In a Bag of 100)
$ 17.14
(exc. GST)
$ 18.85
(inc. GST)
units
Per unit
Per Bag*
100 +
$17.14
$1,714.00
*price indicative
