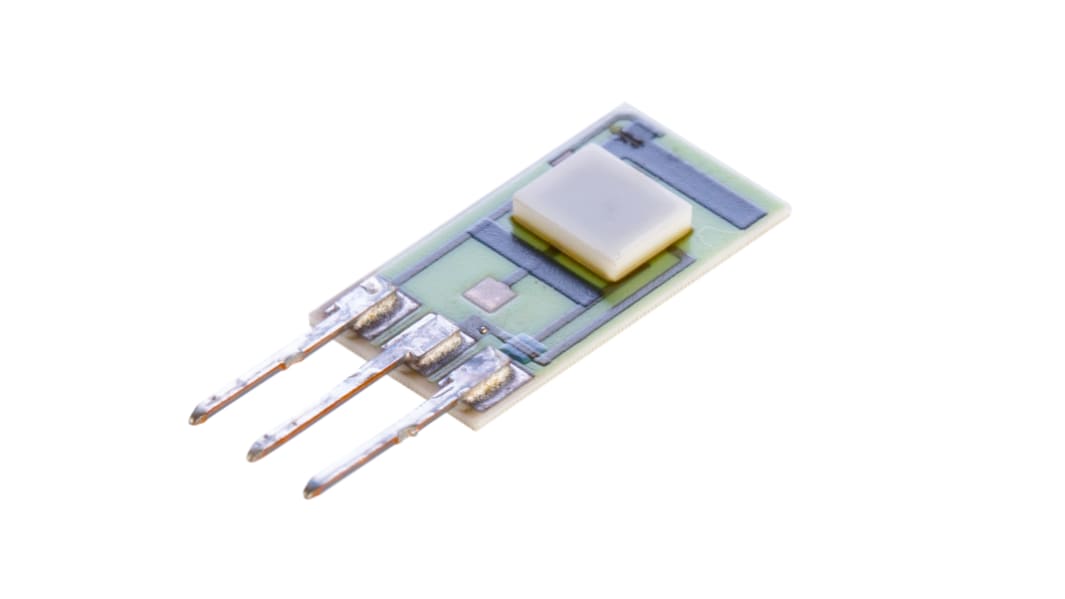

Honeywell Digital Hall Effect Sensor switching current 1 mA supply voltage 6.6 → 12.6 V dc

  • RS Stock No. 169-7651
  • Mfr. Part No. SS94A1
  • Manufacturer Honeywell
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

LOHET IC’s

Ceramic based, linear Hall-effect ratiometric devices which produce an output voltage proportional to the intensity of the magnetic field to which they are exposed.

Three-pin in-line PCB terminals, 0.1in spacing
Laser trimmed thin and thick film resistors
-40 to 125°C operating range

Specifications
Attribute Value
Output Type Digital
Supply Voltage 6.6 → 12.6 V dc
Terminal Type Solder Tag
Switching Current 1 mA
Length 7.6mm
Width 15.2mm
Depth 1.8mm
Dimensions 7.6 x 15.2 x 1.8 mm
Maximum Operating Temperature +125°C
Minimum Operating Temperature -40°C
On back order for despatch 06/10/2020, delivery within 5 working days from despatch date.
Price (ex. GST) Each (In a Bag of 1000)
$ 85.51
(exc. GST)
$ 94.06
(inc. GST)
units
Per unit
Per Bag*
1000 +
$85.51
$85,510.00
*price indicative
