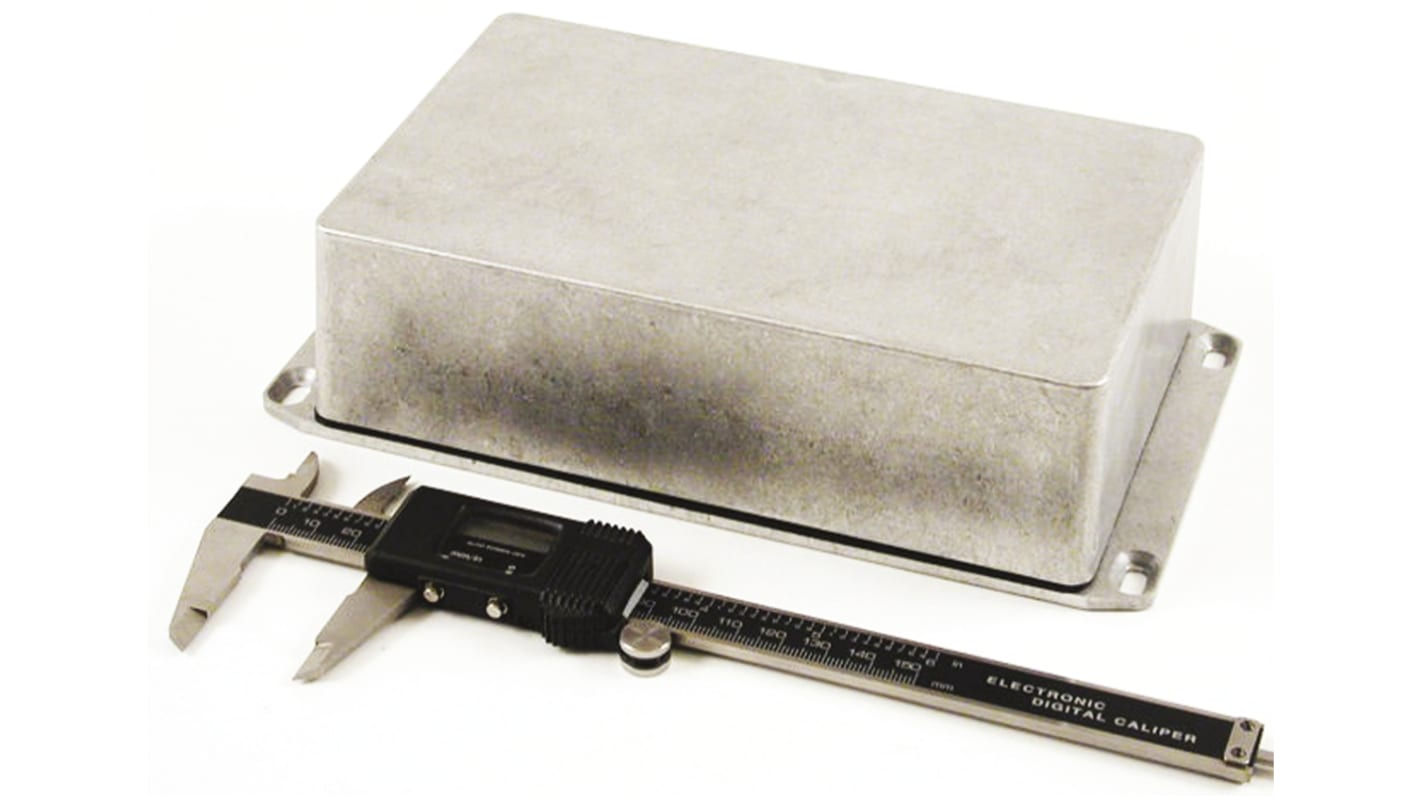

Hammond 1590 Series Natural Die Cast Aluminium Enclosure, IP65, Flanged, Natural Lid, 187.75 x 119.5 x 56mm

RS Stock No.:: 818-0640
Mfr. Part No.:: 1590WDFL
Brand:: Hammond

Hammond 1590 Series Natural Die Cast Aluminium Enclosure, IP65, Flanged, Natural Lid, 187.75 x 119.5 x 56mm

3 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$39.88

(exc. GST)

$43.87

(inc. GST)

Units	Per unit
1 - 4	$39.88
5 - 9	$39.69
10 +	$39.32

RS Stock No.:: 818-0640
Mfr. Part No.:: 1590WDFL
Brand:: Hammond

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

Hammond 1590W Watertight Diecast Aluminium Enclosures, Flanged

The Hammond 1590W series is a light duty diecast watertight aluminium enclosure suitable for housing electronic instruments. It has a lap joint construction with a self-adhesive silicone gasket which provides IP65 protection against dust and water and also provides improved EMI/RFI shielding.

Diecast aluminium alloy 384 (tough yet easy to machine)
Lap joint construction with a silicone rubber gasket
Designed to meet IP65
Silicone rubber gasket remains flexible from -62 to +232 °C (-80 to +450 °F)
Unpainted with a vibra finish for a smooth surface with no sharp edges
Low side wall draft angle (2 degrees or less) for easy P.C. board mounting

Supplied with

stainless steel lid screws and neoprene "O" rings.

Specifications

Attribute	Value
Body Material	Die Cast Aluminium
External Length	187.8 mm
External Height	56 mm
External Width	119.5 mm
External Dimensions	187.75 x 119.5 x 56mm
Range	1590
IP Rating	IP65
Colour	Natural
Lid Colour	Natural
Flanged	Yes
Shielded	Yes
Series	1590
Weight	550g
Gasket Material	Silicone
Explosion Proof	No
