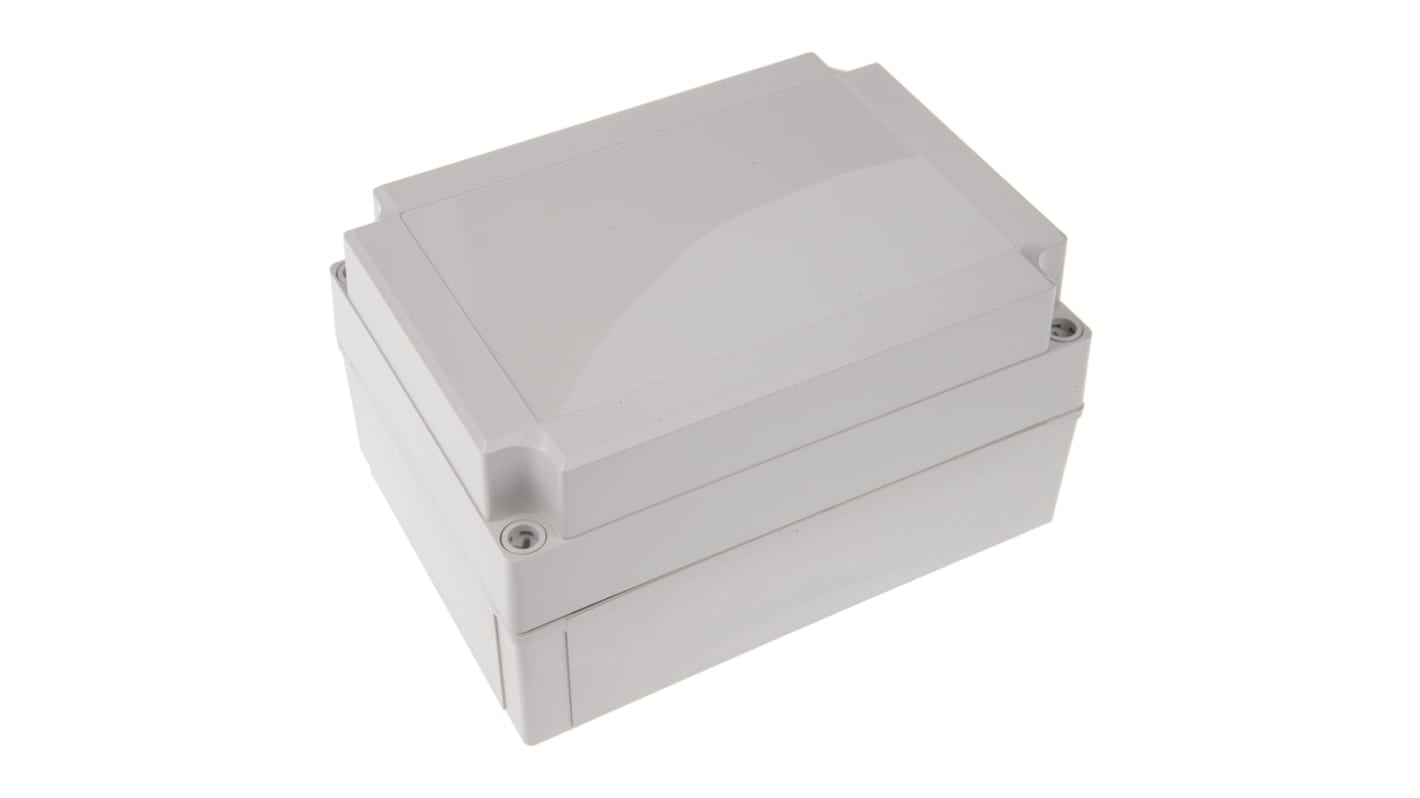

Fibox MNX Polycarbonate Enclosure, IP66, IP67, 180 x 130 x 100mm

  • RS Stock No. 289-6320
  • Mfr. Part No. PC 150/100 HG enclosure
  • Manufacturer Fibox
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FI
Product Details

Fibox MNX Enclosures

The MNX range of enclosures are a perfect choice to housing electronic systems and components. These polycarbonate light grey (RAL 7035) enclosures have an IP66 & IP67 certified protection allowing you to work safely and making the enclosures reliable under difficult working environmental conditions. These MNX series enclosures are available in vary of different sizes to accommodate your everyday applications.

Features & Benefits

• Light Grey finish
• Electrical Insulated
• IP66/67 and IK08 protection
• Temperature -40°C to +80°C
• Single door
• Installation position - Upright on a wall, pole or frame
• Flammability Rating - UL 746C 5"
• UV resistance - UL508

(IP) Ingress Protection

IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures.

IP66 - Dust and water protection
IP67 - immersed in water under defined conditions of pressure and time (up to 1m of submersion)

(IK) Impact Protection

The IK rating reflects degrees of protection provided by enclosures for electrical equipment against external mechanical impacts. For more information please click on The Selection Process of an Enclosure.

IK08 - Protected against 5 joules impact. Equivalent to impact of 1.7 kg mass dropped from 300 mm above impacted surface.

Approvals

NEMA 1,4, 4X, 6

Approvals

NEMA 4, 4X, 12; UL 94-V2 (USA); IP 67; UL 94-V2 (Euro); IEC 529 (Others)

Specifications
Attribute Value
Body Material Polycarbonate
External Length 180 mm
External Height 100 mm
External Width 130 mm
External Dimensions 180 x 130 x 100mm
IP Rating IP66, IP67
Colour Grey
Lid Colour Grey
Shielded No
Series MNX
Temporarily out of stock - back order for despatch 16/01/2020, delivery within 1 working days from despatch date.
Price (ex. GST) Each
$ 35.38
(exc. GST)
$ 38.92
(inc. GST)
units
Per unit
1 - 11
$35.38
12 - 24
$34.35
25 - 49
$33.63
50 +
$32.90
