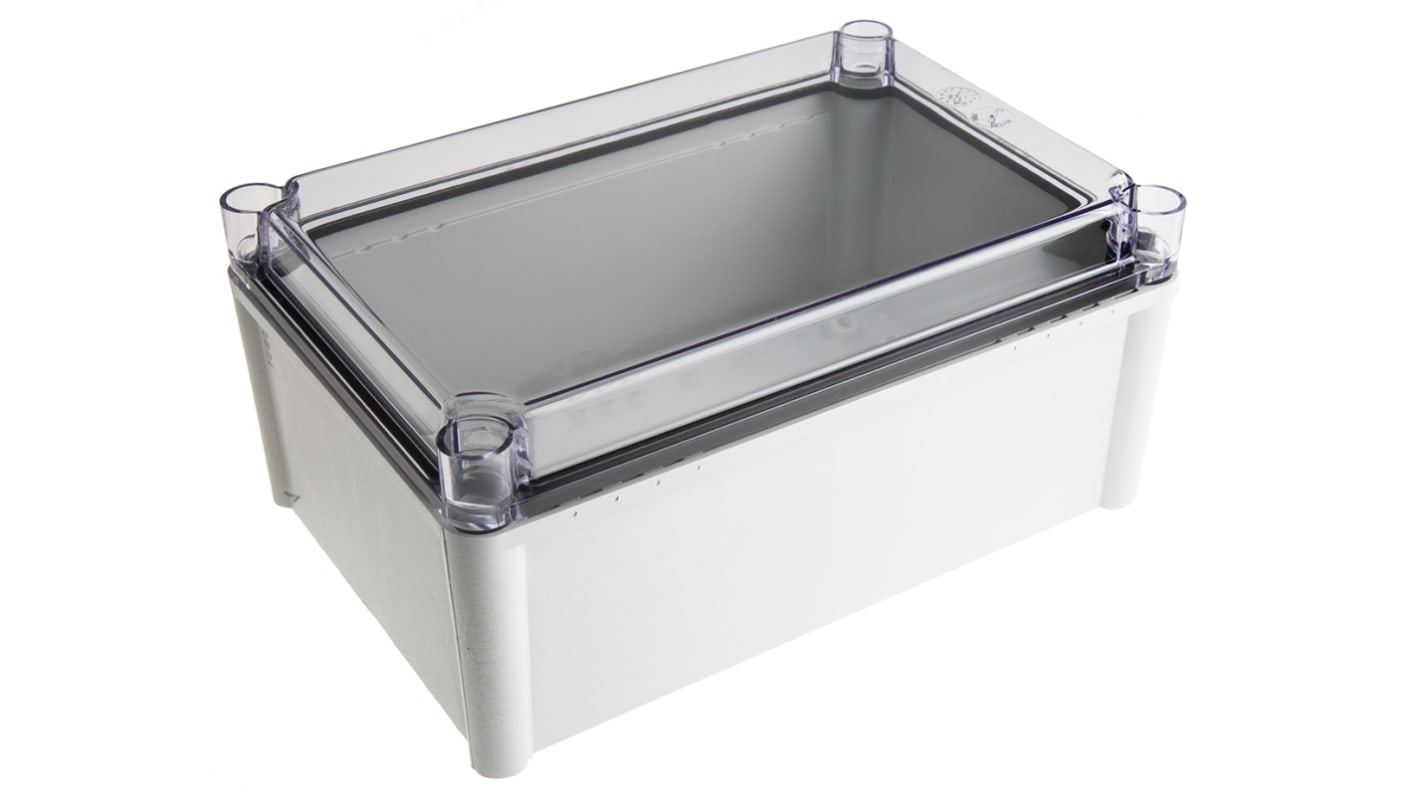

Fibox SOLID PC Polycarbonate Enclosure, IP67, 278 x 188 x 130mm

  • RS Stock No. 188-2415
  • Mfr. Part No. PC 2819 13 T enclosure
  • Manufacturer Fibox
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FI
Product Details

SOLID Series - IP67

The Fibox SOLID range is an excellent choice to house electronic and electrical components. The enclosure is made of Polycarbonate in a light Grey colour (RAL7035). This all purpose enclosure solution provides everyday protection in both indoors and outdoors.

Features and Benefits

Polyurethane gasket assures protection within the box Flammability rating: UL 94-5 V
Delivered with 4 sunken head lid screws and mounting screws for fixing electrical apparatus (Included)
Can be equipped with chassis plates and a DIN Rail for fixing internal equipment
Operating temperature range is -40°C to +80°C (+120°C max short term).
IP67 Rating

Typical Applications

Cable/Wire Management Traffic Control
IT/Server
Solar Power Batteries
Oil and Gas Production
Food and Beverage Industry
Telecommunication Industry

(IP) Ingress Protection and what it means

IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures.

FAQ's

Can the enclosure be used outside?

Being IP67 rated this enclosure is fully weatherproof.

What is Supplied?

Base with screws for mounting plate/DIN-rail, cover with PUR gasket and Polyamide cover screws

Approvals

UL (E75645 Vol.1 Sec.2); SETI 154171-01, CSA LR 49336-7 (Others)

Specifications
Attribute Value
Body Material Polycarbonate
External Length 278 mm
External Height 130 mm
External Width 188 mm
External Dimensions 278 x 188 x 130mm
IP Rating IP67
Colour Grey, Transparent
Lid Colour Transparent
Shielded No
Series SOLID PC
8 : Next working day (AU stock)
44 : 5 working days (Global stock)
Price (ex. GST) Each
$ 102.66
(exc. GST)
$ 112.93
(inc. GST)
units
Per unit
1 - 11
$102.66
12 - 24
$98.96
25 - 49
$96.89
50 +
$94.79
