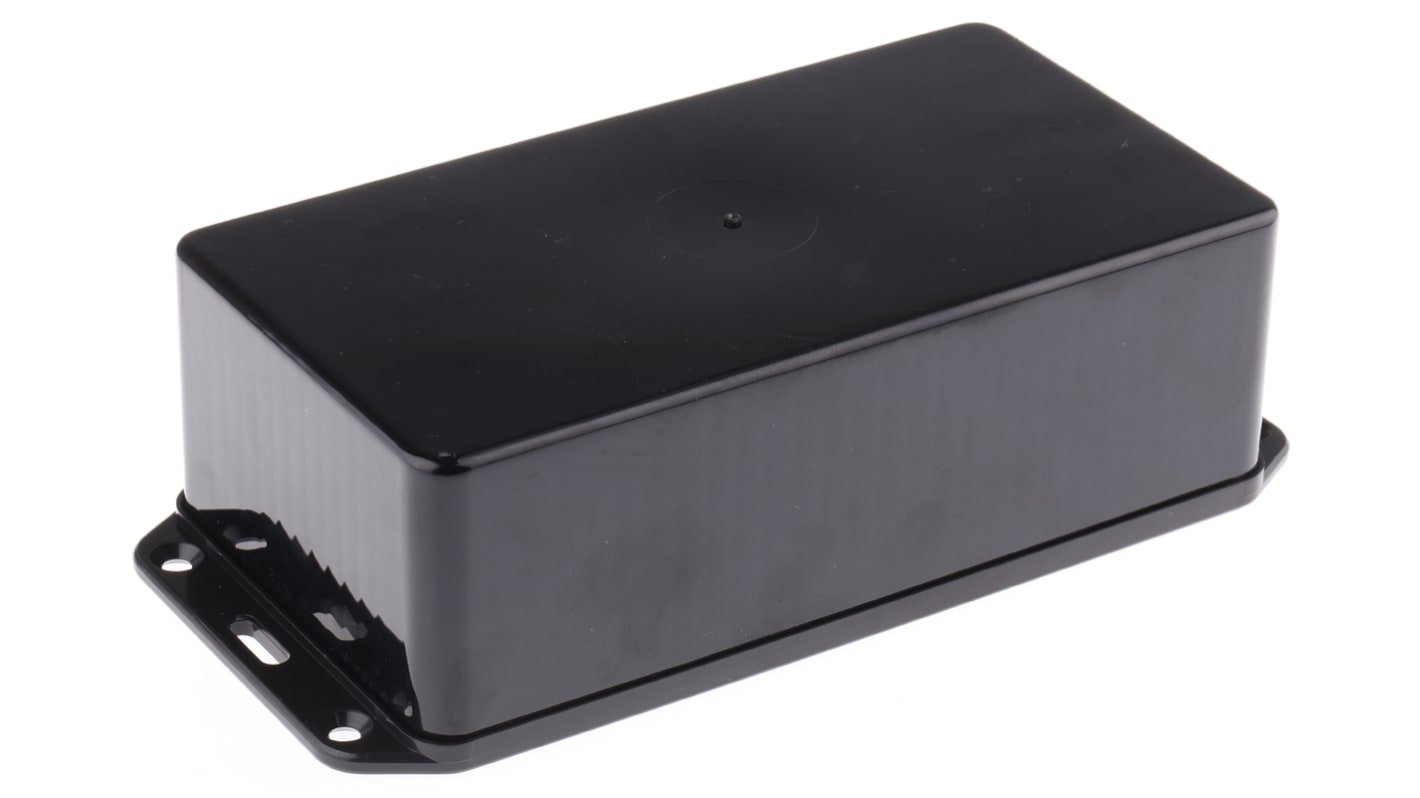

CAMDENBOSS Series 2000 Series Black ABS Enclosure, IP65, Flanged, Black Lid, 170 x 80 x 50mm

RS Stock No.:: 528-696
Mfr. Part No.:: BIM2005/IP-BLK
Brand:: CAMDENBOSS

CAMDENBOSS Series 2000 Series Black ABS Enclosure, IP65, Flanged, Black Lid, 170 x 80 x 50mm

101 In Global stock for delivery within 5 working day(s)

Added

Price (ex. GST) Each

$18.43

(exc. GST)

$20.27

(inc. GST)

Units	Per unit
1 - 24	$18.43
25 - 99	$18.32
100 +	$18.01

RS Stock No.:: 528-696
Mfr. Part No.:: BIM2005/IP-BLK
Brand:: CAMDENBOSS

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: GB

Product Details

CAMDENBOSS Series 2000 IP54/65 Flanged Boxes

This extensive range is ideally suitable for a broad range of applications that require surface mounting and additional protection against dust and ingress of water. Access to the lid screws is restricted after surface mounting, which has been designed as an additional security feature.

Features and Benefits:

• Excellent properties for machining
• PCB pillars are incorporated into the Lid
• Resistant to temperatures of up to 85ºC
• Lid mounted by four M3 machine screws
• ABS flanged lid designed to meet an IP65 rating (with optional gasket)
• Brass inserts incorporated into the base allow for repetitive removal of the lid
• Integral mounting guides designed to accept 1.6mm PCB’s
• Polished finish for a ease of cleaning and superior appearance

Optional Gaskets:

• 75 x 55 mm - 528-668

• 95 x 50 mm - 528-628

• 105 x 56 mm - 528-707

• 120 x 50 mm - 528-680

• 132 x 32 mm - 528-674

• 162 x 80 mm - 528-703

• 170 x 80 mm - 528-678

• 210 x 110 mm - 528-624

FAQ:

What does IP rating mean?

The IP rating is used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt etc) and moisture. For more information please, visit SOLUTIONS section at the top of the page or click on Selection Guide of an Enclosures.

What is supplied?

Standard unit includes:
• Base & Flanged lid
• 4x M3 machine screws

Optional accessories:
• IP 65 gasket kits

Specifications

Attribute	Value
Body Material	ABS
External Length	170 mm
External Height	50 mm
External Width	80 mm
External Dimensions	170 x 80 x 50mm
IP Rating	IP65
Colour	Black
Lid Colour	Black
Flanged	Yes
Shielded	No
Series	Series 2000
