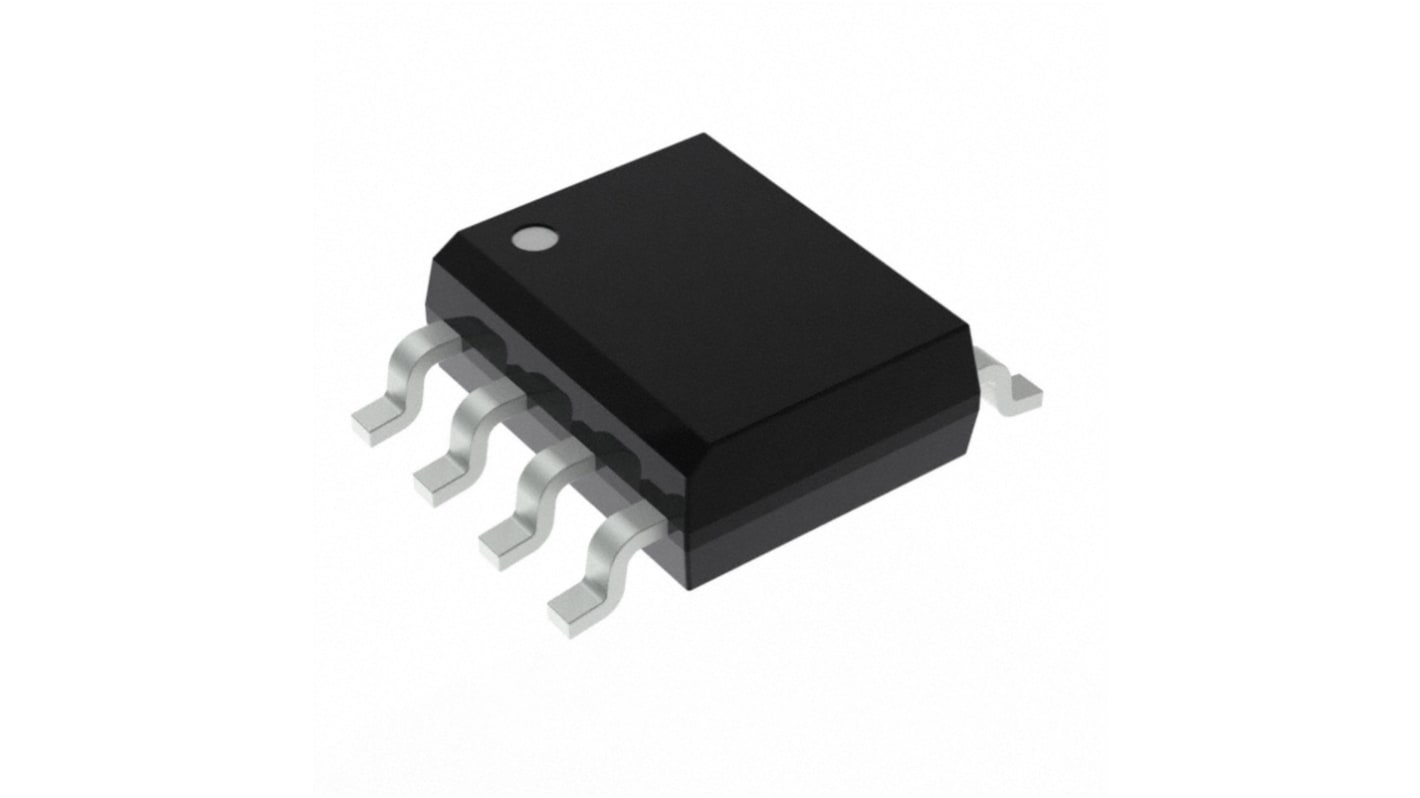

Infineon 16kbit Serial-SPI FRAM Memory 8-Pin SOIC, FM25C160B-GTR
- RS Stock No.:
- 215-5780
- Mfr. Part No.:
- FM25C160B-GTR
- Brand:
- Infineon
Stock check temporarily unavailable - call for stock availability
Added
Price (ex. GST) Each (In a Tube of 2500)
$2.489
(exc. GST)
$2.738
(inc. GST)
| Units | Per unit | Per Tube* |
| 2500 - 2500 | $2.489 | $6,222.50 |
| 5000 - 7500 | $2.46 | $6,150.00 |
| 10000 + | $2.389 | $5,972.50 |
| *price indicative | ||
- RS Stock No.:
- 215-5780
- Mfr. Part No.:
- FM25C160B-GTR
- Brand:
- Infineon
Technical data sheets
Legislation and Compliance
Product Details
The Cypress Semiconductor FM25C160B is a 16-Kbit non-volatile memory employing an advanced ferroelectric process. A ferroelectric random access memory or F-RAM is non-volatile and performs reads and writes similar to a RAM. It provides reliable data retention for 151 years while eliminating the complexities, overhead, and system level reliability problems caused by serial flash, EEPROM, and other non-volatile memories.
16-Kbit ferroelectric random access memory (F-RAM) logically organized as 2K x 8
High-endurance 100 trillion (1014) read/writes
151-year data retention
NoDelay™ writes
High-endurance 100 trillion (1014) read/writes
151-year data retention
NoDelay™ writes
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Memory Size | 16kbit |
| Organisation | 2K x 8 bit |
| Interface Type | Serial-SPI |
| Data Bus Width | 8bit |
| Maximum Random Access Time | 5ns |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 8 |
| Dimensions | 4.97 x 3.98 x 1.48mm |
| Length | 4.97mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Width | 3.98mm |
| Height | 1.48mm |
| Maximum Operating Temperature | +85 °C |
| Number of Bits per Word | 8bit |
| Number of Words | 2 K |
| Minimum Operating Supply Voltage | 4.5 V |
| Minimum Operating Temperature | -40 °C |
| Automotive Standard | AEC-Q100 |
