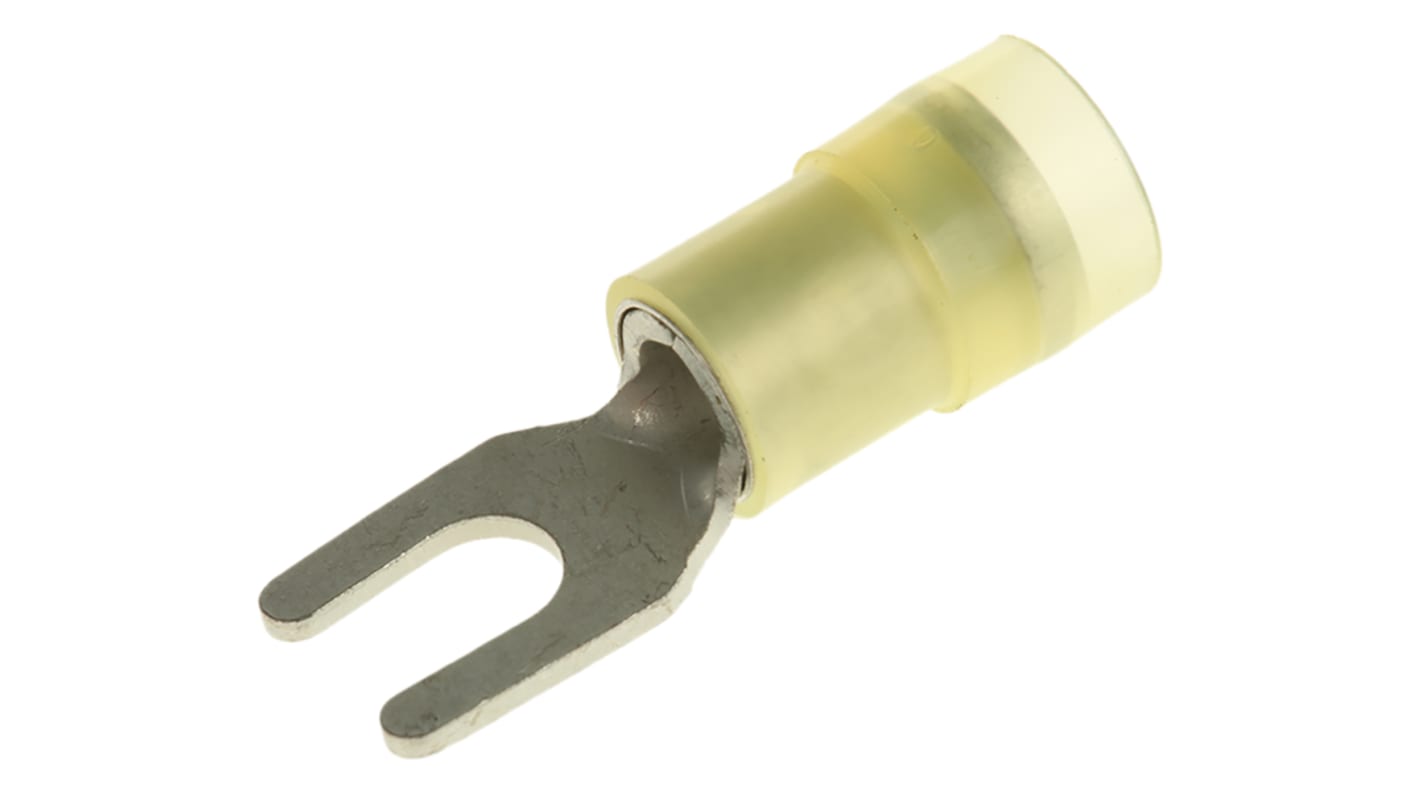

RS PRO Insulated Crimp Spade Connector, 4mm² to 6mm², 12AWG to 10AWG, M4 (#8) Stud Size Nylon, Yellow

RS Stock No.:: 267-3969
Brand:: RS PRO

RS PRO Insulated Crimp Spade Connector, 4mm² to 6mm², 12AWG to 10AWG, M4 (#8) Stud Size Nylon, Yellow

6200 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each (In a Pack of 100)

$0.61

(exc. GST)

$0.67

(inc. GST)

Units	Per unit	Per Pack*
100 - 400	$0.61	$61.00
500 - 2400	$0.593	$59.30
2500 - 4900	$0.568	$56.80
5000 - 24900	$0.553	$55.30
25000 +	$0.455	$45.50
*price indicative

RS Stock No.:: 267-3969
Brand:: RS PRO

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

RS Pro Insulated Double Crimp Spade Terminals

Tired of unreliable connections that leave you in a tangled mess? Look no further than RS PRO crimp terminals. These high-quality insulated fork terminals are here to simplify your electrical connections. With their durable construction and maximum conductivity, you can bid farewell to loose wires and hello to a secure and reliable connection every time.
Made from highly conductive copper and tin plated for maximum electrical conductivity and corrosion resistance, these crimp connectors are the epitome of durability. Say goodbye to flimsy connections that cause headaches and hello to the perfect connection with RS PRO Crimp Connectors. Get ready to experience hassle-free electrical work like never before.

Features and Benefits

Fork terminals

Contact material: Copper

Contact Plating: Tin

Nylon Insulated

Colour-coded

Corrosion resistance

RS Pro Range

Specifications

Attribute	Value
Series	SNYDL
Insulation	Insulated
Width	8.3mm
Insulation Material	Nylon
Minimum Wire Size mm²	4mm²
Maximum Wire Size mm²	6mm²
Minimum Wire Size AWG	12AWG
Maximum Wire Size AWG	10AWG
Stud Size	M4 (#8)
Colour	Yellow
Contact Plating	Tin
Overall Length	25.5mm
Contact Material	Copper
Thickness	1mm
