Sauter FA 500 Force Gauge, Range: 500N, Resolution: 2.5 N
- RS Stock No.:
- 559-717
- Mfr. Part No.:
- FA 500
- Brand:
- Sauter
4 In Global stock for delivery within 10 working day(s)
9 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$625.77
(exc. GST)
$688.35
(inc. GST)
| Units | Per unit |
| 1 + | $625.77 |
- RS Stock No.:
- 559-717
- Mfr. Part No.:
- FA 500
- Brand:
- Sauter
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Product Details
FA Series Force Gauge, Analogue
Mechanical force gauge with spring measuring system and pointer display in N and kg
Switchable between peak value reading and continuous measurement
Measures tractive and compressive forces, with zero position and tare function
Measurement accuracy ±1%, overload protection for 150% of final value
Measuring range upon reaching peak load: 10 mm
Dimensions 50 x 60 x 230 mm, weight 560 g
For use on all test stands with four M3 screws
Switchable between peak value reading and continuous measurement
Measures tractive and compressive forces, with zero position and tare function
Measurement accuracy ±1%, overload protection for 150% of final value
Measuring range upon reaching peak load: 10 mm
Dimensions 50 x 60 x 230 mm, weight 560 g
For use on all test stands with four M3 screws

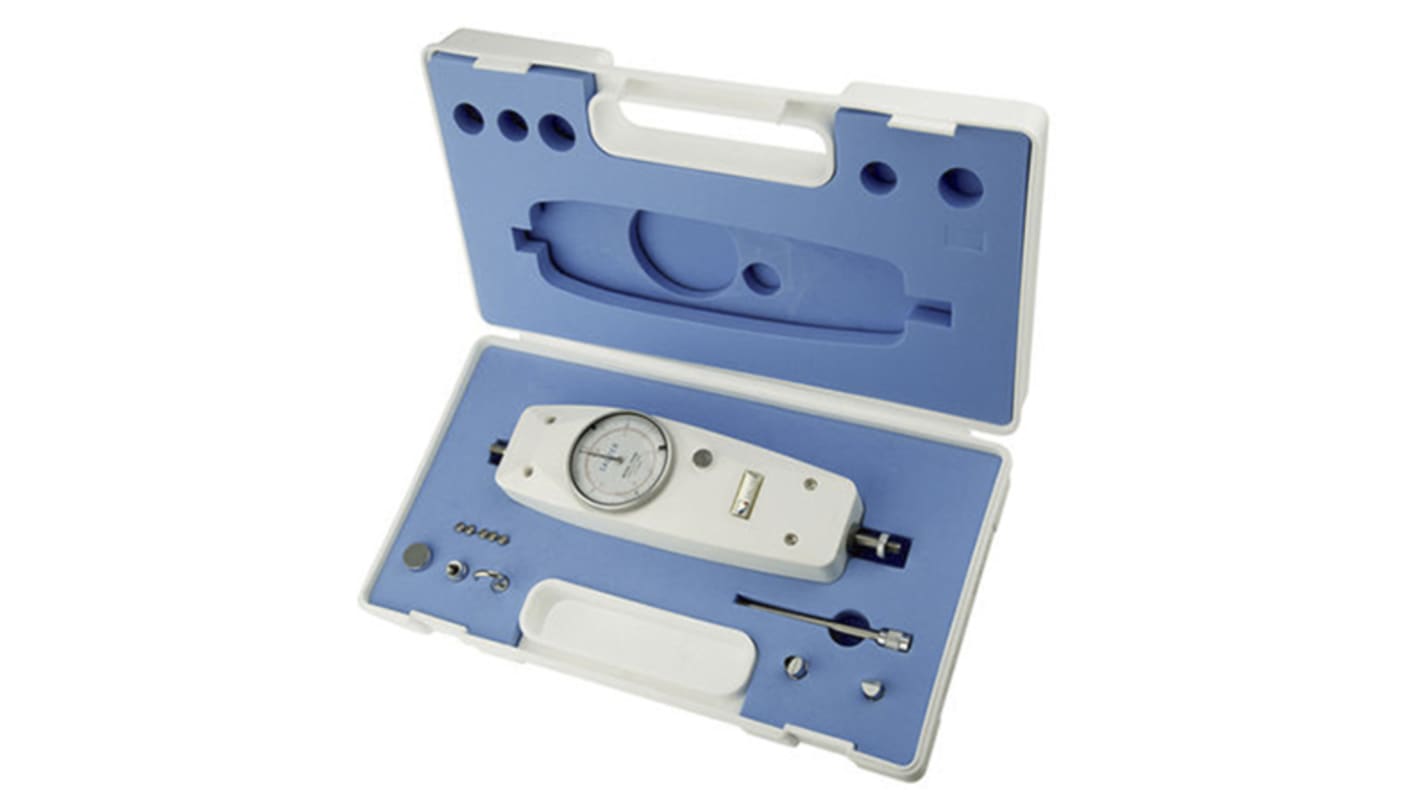

Supplied with
Measuring instrument with 6 standard attachments, hook, pressure plate and pressure peaks, in carry case
Specifications
Attribute | Value |
|---|---|
| Range | 500N |
| Best Accuracy | ±1 % |
| Measurement Units | kg, N |
| Resolution | 2.5 N |
| Weight | 560g |
| Operating Temperature Range | +10 → +30 °C |
| Length | 230mm |
| Width | 60mm |
| Height | 50mm |
| Minimum Operating Temperature | +10°C |
| Maximum Operating Temperature | +30°C |
