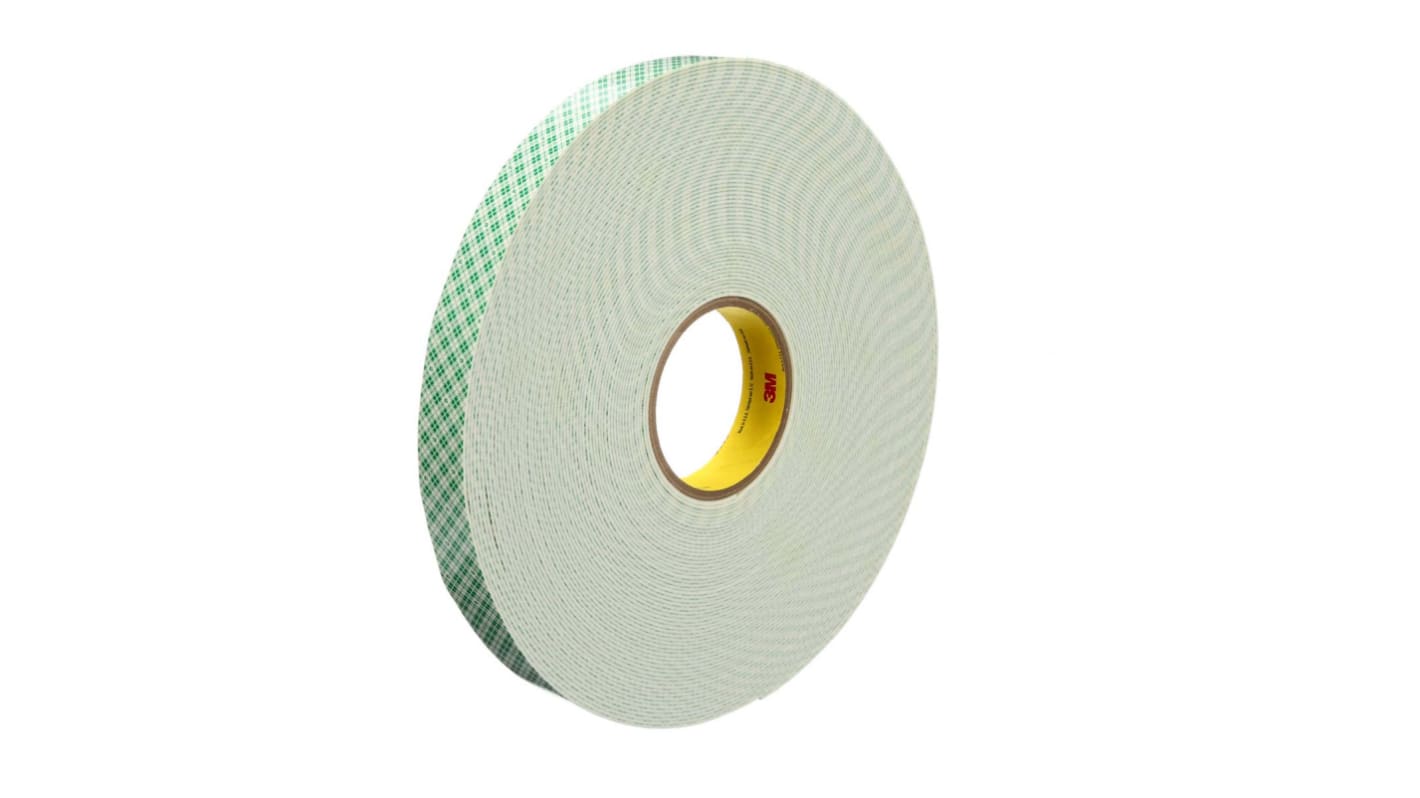

3M 4026 White PUR Foam Double Sided Tape, 1.6mm Thick , 25mm x 33m

  • RS Stock No. 701-9042
  • Mfr. Part No. 3M 4026 25mm x 33m
  • Manufacturer 3M
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): FR
Product Details

Double-sided Foam Tapes 4026, 4032 and 4008

Rolls of double-sided polyurethane foam with a strong acrylic adhesive for producing resistant assemblies while compensating for flatness defects on rough or uneven surfaces.
These tapes act as a vibration damper, provide excellent shock resistance and reduce sound transmissions.
Tapes that withstand differences in temperature and have excellent draughtproofing and sealing properties.
The open-cell structure of the foam on these tapes allows air, gas and moisture to flow through while resisting high temperatures and solvents.
Typically used in the manufacture of safety glass, mirror fixings, PCB assembly, panels etc.

3M™ Double Coated Urethane Foam Tape 4026, Creme 25 mm x 33 m

The 3M™ 4026 is a 1.6 mm white double coated Urethane foam tape. The open cell Urethane foam tape that offers high shear strength. This extraordinary tape adheres to broad ranges of surfaces, including metals, plastics and wood to high temperatures. It is designed to be used in both internal and external applications where the tape is protected from the environment.

Application

The 3M™ 4026 provides high strength and long-term durability through a general purpose rubber adhesive. The addition of Kraft paper lining provides conformability and reliable performance for industrial applications. Its high-temperature performance in applications up 104°C for a prolonged time. It is designed for good adhesion metals, high surface energy plastics, with good chemical and temperature resistance.

Features and Benefits

High shear strength on metal and high surface energy plastics

Durable foam is ideal for interior mounting applications

Off-white colour provides a clean appearance

Ideal for bonding, attaching and mounting

Thick foam dampens and prevents vibration

Open-cell structure aids component cooling

Suitable for soft PVC

Benefits of choosing 3M Foam Tape

Design and deliver with 3M™ Tape. Utilizing the unique rubber adhesive on both sides of a conformable foam strip makes it the most capable Urethane Tape. It's been designed to adhere to a variety of surfaces like plastics, metals, wood and glass.

Unconventional foam tape. 3M invented the first foam tape, they have been at the forefront of improving the properties of this tape to ensure extreme reliability, consistent durability and a consistent bond. The 3M™ Foam Tape is a proven alternative to rivets, screws and welding for a number of applications

Reliability and durability. 3M™ Foam Tape does not only offer a strong reliable yet durable bond it enhances the appearance of finished goods. It does this by eliminating the rivet and screw heads as well as visible welds whilst providing an immediate bond. Fastening the tape is a quicker process than conventional methods such as drilling, fastening or liquid adhesives. The unique acrylic adhesive is extremely durable and resistant to changing temperatures over time from the heat of Dubai to the cold of Norway.

Specifications
Attribute Value
Width 25mm
Thickness 1.6mm
Length 33m
Backing Material PUR Foam
Colour White
Adhesion Strength 27.5 N/cm
Single/Double Sided Double Sided
Foam Density 290kg/m³
Adhesive Material Acrylic
Maximum Operating Temperature +104 (Long Term) °C, +193 (Short Term) °C
Model Number 4026
Adhesion Strength Unfaced Side 12.5N/cm
1 : Next working day (AU stock)
15 : 5 working days (Global stock)
Price (ex. GST) Each
$ 85.59
(exc. GST)
$ 94.15
(inc. GST)
units
Per unit
1 - 5
$85.59
6 - 14
$84.09
15 +
$82.62
