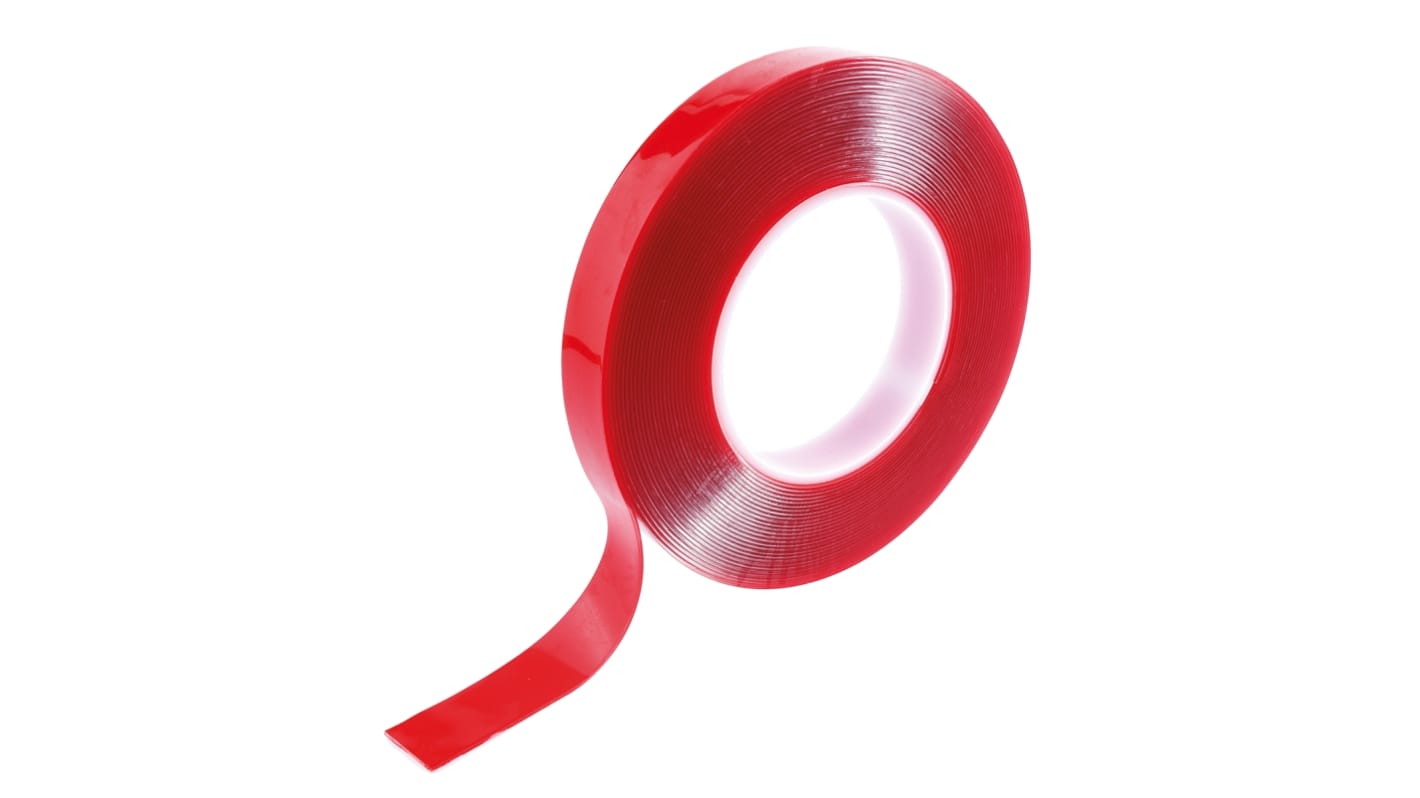

Hi-Bond VST 4100C Clear Acrylic Foam Double Sided Tape, 1mm Thick , 19mm x 10m

  • RS Stock No. 686-1101
  • Mfr. Part No. VST 4100C/1/19/10
  • Manufacturer Hi-Bond
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): KR
Product Details

Hi-Bond Double Sided Foam Tape

The Hi-Bond clear double-sided foam is a high-quality adhesive tape. It allows two different surfaces to expand at different rates but staying bonded as they flex in the heat. The tape is 1mm thick, 19mm wide and 10m long. These tapes have adhesive applied to both sides of the foam.

Features and Benefits

It can be used with polycarbonate, acrylic and PVC
Bonds well to metals such as aluminium and stainless steel
Tensile strength is 61.7N/cm
Foam density is 850kg/m³
Operating temperature ranges between -40°C and 150°C
Adhesive material is acrylic

Applications

Bonding glass and transparent plastics
Ideal for use with window, door, laminated safety, and bullet proof glass manufacture
Suited for applications in the display and sign industry

Specifications
Attribute Value
Width 19mm
Thickness 1mm
Length 10m
Backing Material Acrylic Foam
Colour Clear
Adhesion Strength 13.3 N/cm
Foam Density 850kg/m³
Single/Double Sided Double Sided
Adhesive Material Acrylic
Tensile Strength 61.7N/cm
Maximum Operating Temperature +100°C
Model Number VST 4100C
Adhesion Strength Unfaced Side 61.7N/cm
50 In stock for delivery within 7 working day(s) (Global Stock)
Price (ex. GST) Each
$ 41.14
(exc. GST)
$ 45.25
(inc. GST)
units
Per unit
1 - 9
$41.14
10 - 19
$40.28
20 +
$39.68
