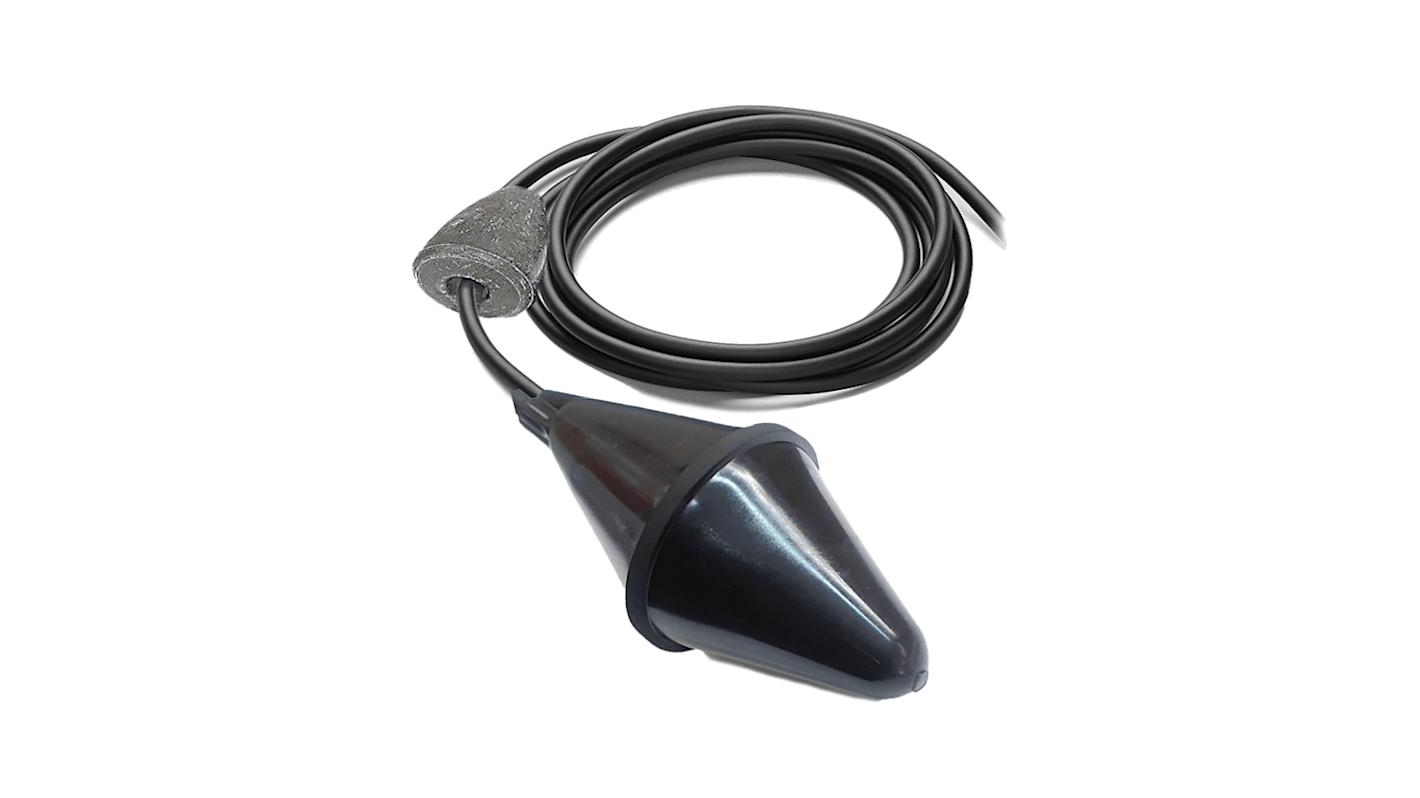

ATMI Cable Mount Copolymer Polypropylene + HR HY Float Switch, Float, 5m Cable, SPDT, 250V ac Max, 125V dc Max
- RS Stock No.:
- 208-5494
- Mfr. Part No.:
- SOBAHRHY05M
- Brand:
- ATMI
4 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$459.55
(exc. GST)
$505.51
(inc. GST)
Units | Per unit |
1 + | $459.55 |
- RS Stock No.:
- 208-5494
- Mfr. Part No.:
- SOBAHRHY05M
- Brand:
- ATMI
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
This float level switche is a heavy duty float level switch designed for aggressive liquids. It is encased in a HR HY press-vulcanised housing, which ensures a double waterproof, can ensure a regulation in very agressive liquids.
The SOBA HR HY level regulator are equipped with an external loaded resin ballast 250 g, adjustable on the cable, which facilitates the rotation point of the level sensor and allows it to work in a wide range of densities.
Thanks to its +/- 25° switching angle, it ensures a very precise level measurement. The device can also be used in high or low alarm (overfill protection or protection against idling). If your installation is located in a hazardous area, choose our ATEX certified float switch SOBA EX.
Very reliable, it is used in a wide range of applications ...
The SOBA HR HY level regulator are equipped with an external loaded resin ballast 250 g, adjustable on the cable, which facilitates the rotation point of the level sensor and allows it to work in a wide range of densities.
Thanks to its +/- 25° switching angle, it ensures a very precise level measurement. The device can also be used in high or low alarm (overfill protection or protection against idling). If your installation is located in a hazardous area, choose our ATEX certified float switch SOBA EX.
Very reliable, it is used in a wide range of applications ...
Maximum pressure 4 bar
Maximum temperature 90°C
Protection index IP68
Maximum temperature 90°C
Protection index IP68
Specifications
Attribute | Value |
---|---|
Device Type | Float |
For Use With | Liquid Level Alarm and Pump Controller |
Mounting Type | Cable Mount |
Switch Output | SPDT |
Body Material | Copolymer Polypropylene + HR HY |
Cable Length | 5m |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +90°C |
Maximum AC Voltage | 250V |
Maximum DC Voltage | 125V |
Maximum Pressure | 4bar |
