- RS Stock No.:
- 184-9898
- Mfr. Part No.:
- 7F.20.8.230.1020
- Brand:
- Finder
10 In AU stock for next working day delivery
70 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$170.03
(exc. GST)
$187.03
(inc. GST)
Units | Per unit |
1 - 4 | $170.03 |
5 + | $167.52 |
- RS Stock No.:
- 184-9898
- Mfr. Part No.:
- 7F.20.8.230.1020
- Brand:
- Finder
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details

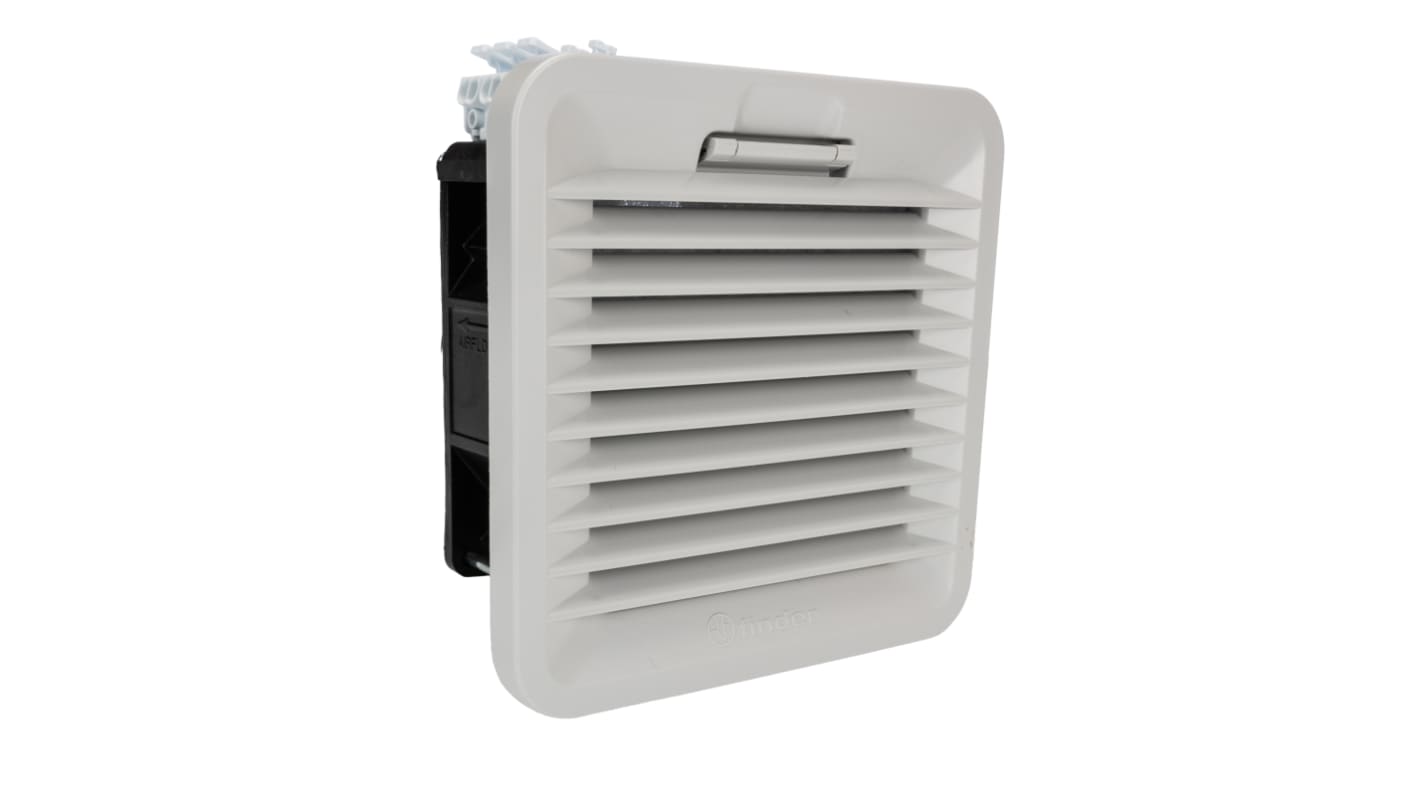

Filter Fan for electrical cabinets and enclosures 120 V or 230 V AC versions.
Very low acoustic noise
Minimal depth within enclosure
Air volume (14…470) m³/h (with Exhaust Filter installed in cabinet)
Air volume (24...630) m³/h (free flow)
Operating voltage: 24 VDC, 120 V AC, 230 V AC
Air conditioners
Automatic car-washes
Carousel warehouses
Control panels
Minimal depth within enclosure
Air volume (14…470) m³/h (with Exhaust Filter installed in cabinet)
Air volume (24...630) m³/h (free flow)
Operating voltage: 24 VDC, 120 V AC, 230 V AC
Air conditioners
Automatic car-washes
Carousel warehouses
Control panels
Specifications
Attribute | Value |
---|---|
Noise Level | 27dB(A) |
Filtered Air Flow | 24m³/h |
Input Current | 100mA |
Input Power Rating | 17W |
AC or DC Operation | AC |
Face Dimensions | 120 x 120mm |
Installation Depth | 54.4mm |
Supply Voltage | 230 V ac |
Face Height | 120mm |
Face Width | 120mm |
IP Rating | IP54 |
Special Features | Very Low Acoustic Noise, Minimal Depth within Enclosure |
Termination Type | Wire |
Series | 7F |
Bearing Type | Ball |
