Tempo OPM510, SLS520 Single Mode & Multimode Fibre Optic Test Kit

RS Stock No.:: 213-3639
Mfr. Part No.:: 55500027
Brand:: Tempo

Tempo OPM510, SLS520 Single Mode & Multimode Fibre Optic Test Kit

On back order for despatch 16/05/2024, delivery within 10 working days from despatch date.

Added

Price (ex. GST) Each

$2,637.44

(exc. GST)

$2,901.18

(inc. GST)

Units	Per unit
1 +	$2,637.44

RS Stock No.:: 213-3639
Mfr. Part No.:: 55500027
Brand:: Tempo

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

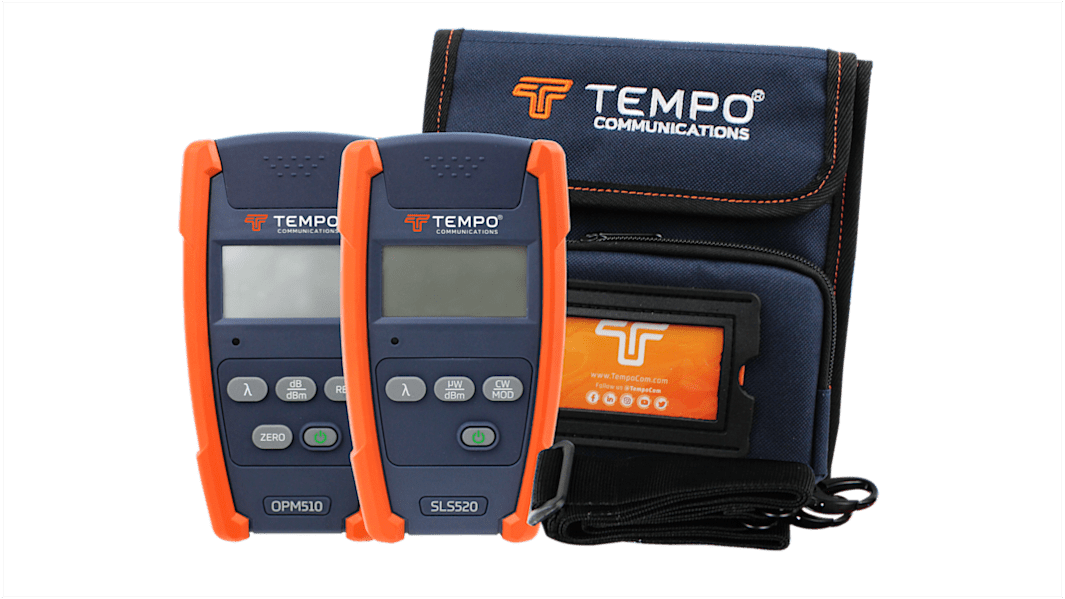

Fiber Optic Test Kit

The Tempo fibre optic test kit contains OPM510 optical power meter having -65 to +10 dBm measurement range and SLS520 light source with 1310/1550 wavelength.

OPM510 Optical Power Meter Features include:

850, 1300, 1310, 1490, 1550, 1625nm Wavelengths
Detector type: InGaAs OPM +10 to -65dBm
Functions: μW/dBm/dB(REF)/ MOD tone detection 270Hz, 1kHz, 2kHz
Singlemode & Multimode fiber type
SC, LC, FC and ST Interchangeable Bulkheads
Over 100 hours of battery life
Auto Off or Continuous On Operation
Dimensions: 155 x 88 x 33 mm

SLS520 Light Source Features include:

Durable and compact design and provides a stable light source
Adaptable, interfaces to all industry standard connectors
1310/1550nm Wavelengths
Single mode
LCD display
60 hours of battery life
Power supply - 9V Alkaline or 1000mAh Lithium Battery/ 9V AC adapter
300g
Dimensions: 155 x 89 x 33 mm
IP54 rating
PC flat polish interface

Specifications

Attribute	Value
Cable Type	Single Mode & Multimode
Equipment Type	Fibre Optic Test Kit
Connector Type	SC
Wavelengths	850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm
Resolution	0.01 dB
Power Source	Battery, Mains
Model Number p	OPM510, SLS520
