Tempo 180XL Single Mode & Multimode Fibre Optic Test Kit

RS Stock No.:: 111-0391
Mfr. Part No.:: 180XL
Brand:: Tempo

Tempo 180XL Single Mode & Multimode Fibre Optic Test Kit

9 In Global stock for delivery within 5 working day(s)

Added

Price (ex. GST) Each

$437.62

(exc. GST)

$481.38

(inc. GST)

Units	Per unit
1 +	$437.62

RS Stock No.:: 111-0391
Mfr. Part No.:: 180XL
Brand:: Tempo

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Fibre Optic Test Equipment

The 180X is a visual fault locator that is used to confirm the fibre continuity up to 7km. This test equipment allows the technicians to quickly and safely locate broken and pinched fibres, faulty connectors and bad splices. It allows the operator to locate faults visually, without the use of any additional expensive equipment.

Features and Benefits

Universal 2.5mm bulkhead
Compatible with single mode and multimode fibres
2Hz modulation mode
Operating temperature ranges between -10°C and 45°C
Long battery life of 80 hours with 3.9Wh batteries
Red/Green LEDs for display operations
Battery 2 x AA
Dimensions: 180 x 23 mm

Applications

The 180XL visual fault locator can be used to find faults in optical fibers including:

Measure and locate high-loss splices, connections, and breaks
Locate the end of a fibre
Find potential sources of error caused by reflectance from dirty or poor connections
Detect live optical signals before it begins testing

Certifications

CE certified
CDRH certified
Class 2 certification provides safe light levels to the technician

Specifications

Attribute	Value
Cable Type	Single Mode & Multimode
Equipment Type	Fibre Optic Test Kit
Wavelengths	650nm
Operation Test Distance	7km
Battery Type	AA
Battery Life	80 h
Power Source	Battery

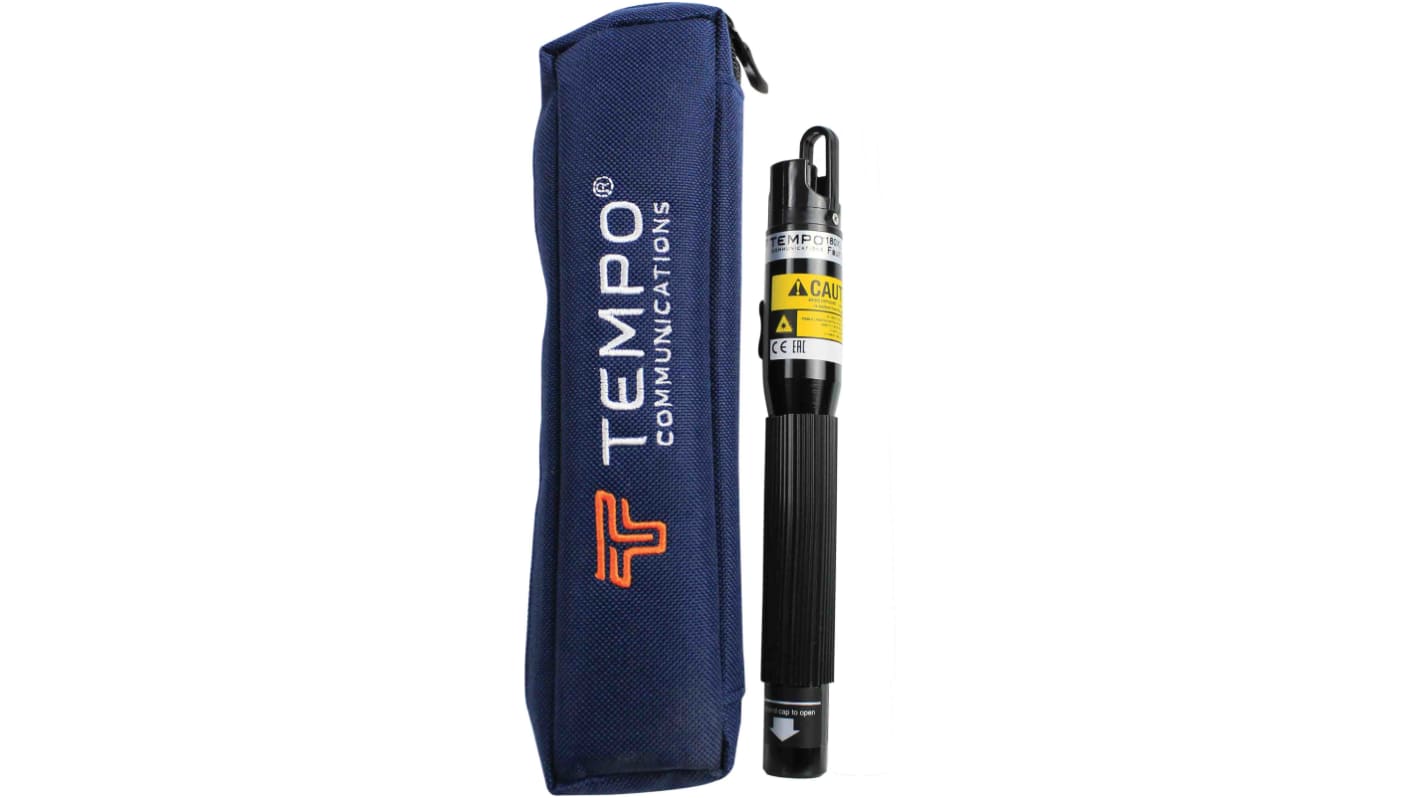

Includes	Visual Fault Locator, AA Batteries (2), Instruction Manual, Soft Carry Case
Model Number p	180XL
Maximum Operating Temperature	+45°C
Weight	120g
Diameter	23mm
Minimum Operating Temperature	-10°C
Height	180mm
