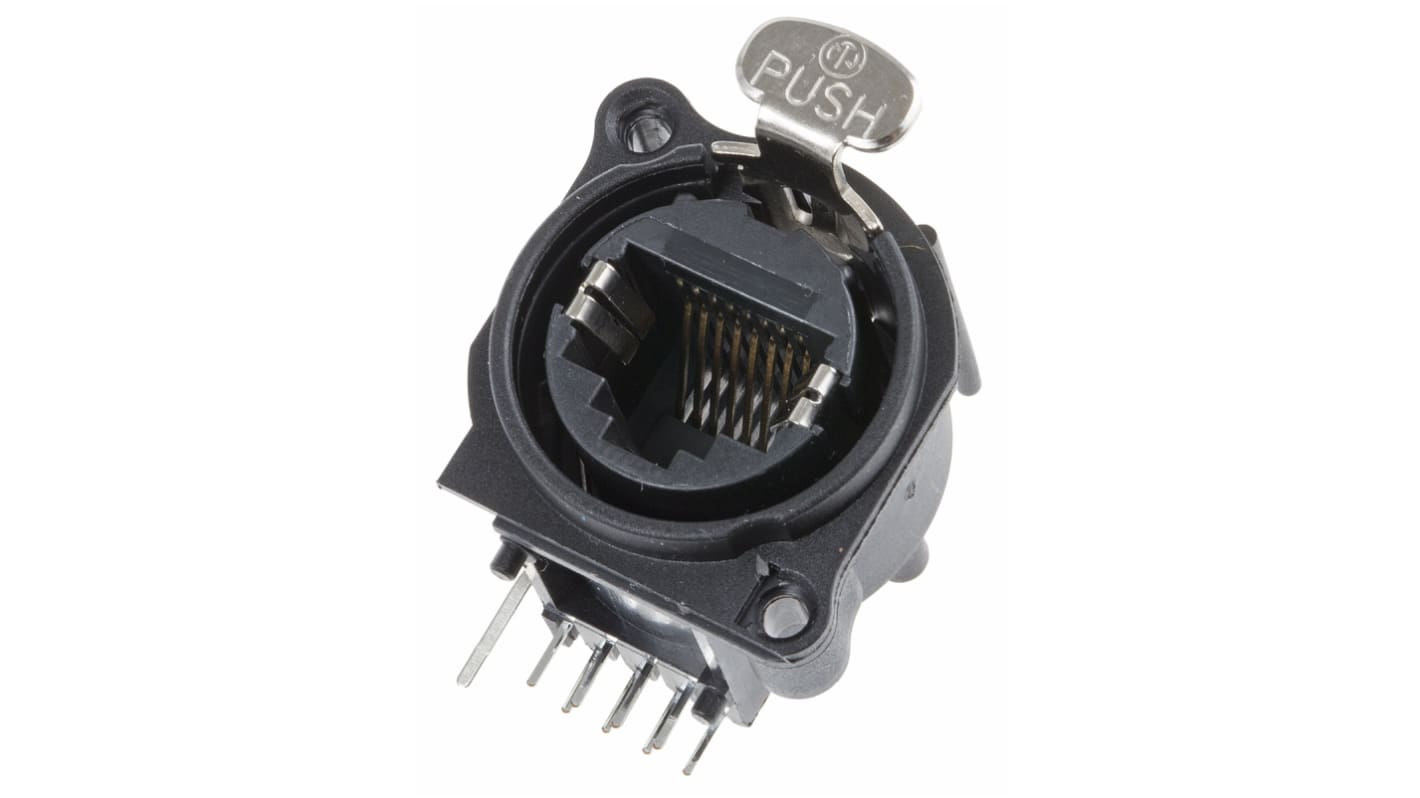

Neutrik, EtherCon, Female RJ45 Connector

  • RS Stock No. 426-2410
  • Mfr. Part No. NE8FAH
  • Manufacturer Neutrik
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): LI
Product Details

EtherCon® RJ 45 Connectivity

From Neutrik, these EtherCon RJ45 connectors have a plug housed in a diecast shell that interlocks with corresponding receptacles in much the same way as typical XLR connector would. It ensures that EtherCon RJ45 plugs and sockets can form a robust and secure mating not always afforded by typical RJ45 connections. All models are highly reliable and excellent quality.

Features & Benefits

All comply with Category 5 (Cat 5e for IDC versions), and are compatible for use with 10 Base-T and 100 BaseTX systems The 'FDV' version uses similar front flange as the Neutrik unified XLR connector
Maximum cable O.D. is 6 mm for cable shell connector
Cable mount shell is ideal for retrospectively ruggedising existing non-booted RJ45 leads
Frequency Bandwidth: 1 MHz to 100 MHz
Rated Current: 1.5A
Dielectric Strength: 1kVac
Contact Resistance: <10 mΩ
Insulation Resistance: >500 mΩ
Temperature Range: -30° to + 80°C
Expected Mechanical Life: >1000 cycles

Tooling

For suitable chassis/panel hole cutters see stock nos. 600-105 and 543-585

Specifications
Attribute Value
Gender Female
Ethernet Connector Type RJ45 Connector
Number of Ports 1
Mounting Type Through Hole
Orientation Right Angle
Length 25mm
Series EtherCon
Contact Material Bronze
Contact Plating Gold over Nickel
25 : Next working day (AU stock)
231 : 7 working days (Global stock)
Price (ex. GST) Each
$ 7.65
(exc. GST)
$ 8.41
(inc. GST)
units
Per unit
1 - 14
$7.65
15 - 49
$7.52
50 +
$7.34
